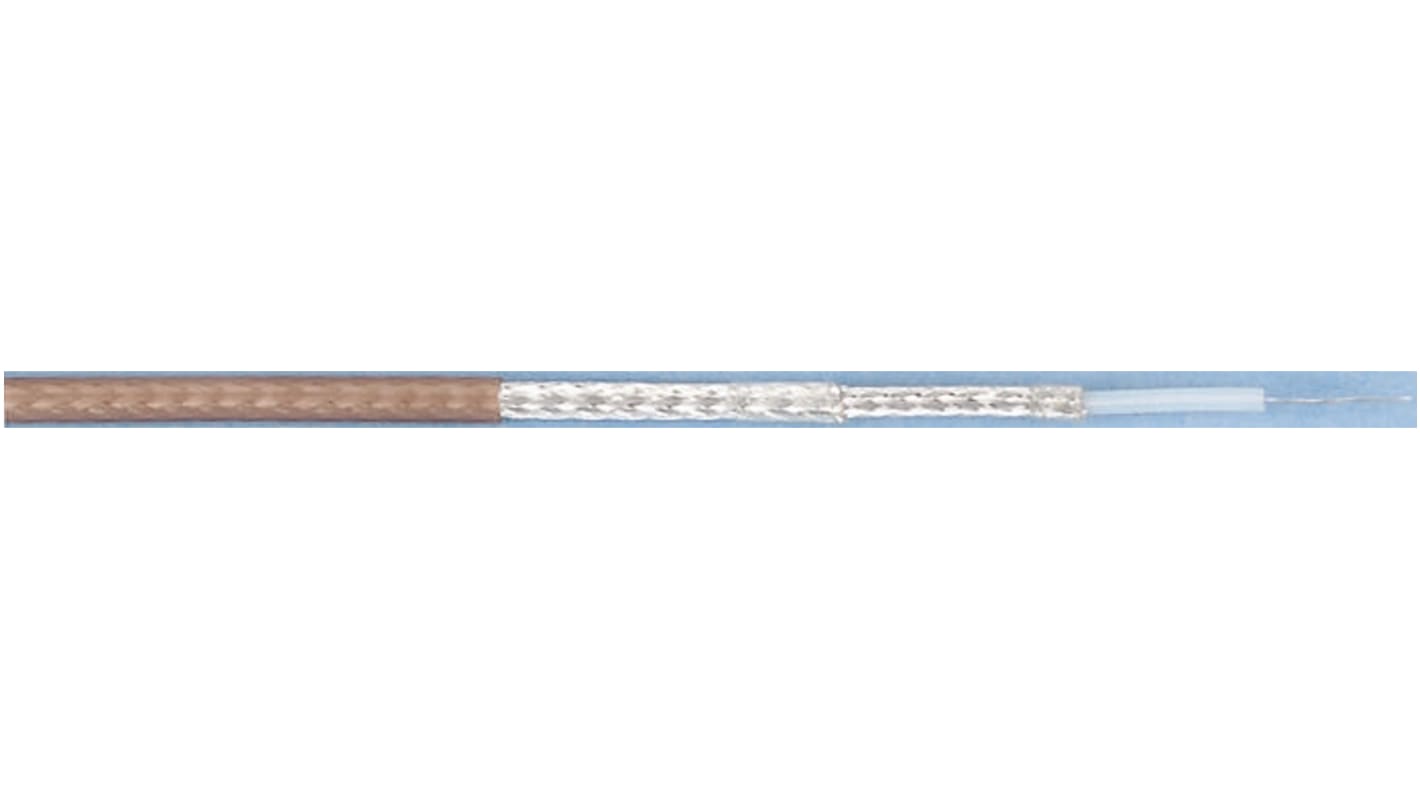

Belden Coaxial Cable, 25m, RG179 Coaxial, Unterminated
- RS Stock No.:
- 521-5409
- Brand:
- RS PRO
Unavailable
RS will no longer stock this product.
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 25 Metre(s)
Kr. 938,20
(exc. VAT)
Kr. 1 172,75
(inc. VAT)
- RS Stock No.:
- 521-5409
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Terminated/Unterminated | Unterminated | |
| Coaxial Type | RG179 | |
| Outer Diameter | 3.07mm | |
| Characteristic Impedance | 75 Ω | |
| Attenuation | 52.5 dB/100m @ 400MHz, 64.6 dB/100m @ 700MHz, 73.2 dB/100m @ 900MHz, 78.7 dB/100m @ 1GHz | |
| Length | 25m | |
| Sheath Colour | Brown | |
| Conductor Strand Type | Stranded | |
| Core Strands | 7/38 | |
| Sheath Material | FEP | |
| Insulation Material | TFE | |
| Velocity ratio | 69.5% | |
| Minimum Operating Temperature | -70°C | |
| Conductor Material | Silver Plated Copper Clad Steel | |
| Size of Strands | 38 AWG | |
| Maximum Operating Temperature | +200°C | |
| Operating Temperature Range | -70 → +200 °C | |
| Number of Strands | 7 | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Terminated/Unterminated Unterminated | ||
Coaxial Type RG179 | ||
Outer Diameter 3.07mm | ||
Characteristic Impedance 75 Ω | ||
Attenuation 52.5 dB/100m @ 400MHz, 64.6 dB/100m @ 700MHz, 73.2 dB/100m @ 900MHz, 78.7 dB/100m @ 1GHz | ||
Length 25m | ||
Sheath Colour Brown | ||
Conductor Strand Type Stranded | ||
Core Strands 7/38 | ||
Sheath Material FEP | ||
Insulation Material TFE | ||
Velocity ratio 69.5% | ||
Minimum Operating Temperature -70°C | ||
Conductor Material Silver Plated Copper Clad Steel | ||
Size of Strands 38 AWG | ||
Maximum Operating Temperature +200°C | ||
Operating Temperature Range -70 → +200 °C | ||
Number of Strands 7 | ||
- COO (Country of Origin):
- GB
Belden RG179 Coaxial Cable, 75 ohm Capacitance, TFE Insulation - MRG1791.0050
This coaxial cable by Belden, with a capacitance of 75 ohms offers top-notch performance in various applications. It boasts high-quality materials and superior design, making it a reliable choice for your connectivity needs.
Features & Benefits
• Capacitance of 75 ohms ensures optimal signal transmission
• Silver plated copper clad steel conductor for enhanced conductivity
• TFE insulation for durability and flexibility
• High attenuation capability for reduced signal interference
• Black PVC sheathed design for protection and longevity
• Tinned copper braid shielding for maximum signal integrity
• Suitable for high temperature environments, with a temperature range of -25°C to +70°C
• Silver plated copper clad steel conductor for enhanced conductivity
• TFE insulation for durability and flexibility
• High attenuation capability for reduced signal interference
• Black PVC sheathed design for protection and longevity
• Tinned copper braid shielding for maximum signal integrity
• Suitable for high temperature environments, with a temperature range of -25°C to +70°C
Applications
• Ideal for use in automation systems
• Suitable for electronic circuits and equipment
• Can be used for electrical installations in industrial settings
• Suitable for electronic circuits and equipment
• Can be used for electrical installations in industrial settings
Can it withstand extreme temperatures?
Yes, this cable can operate efficiently in temperatures ranging from -25°C to +70°C.
Will it provide reliable signal transmission?
Yes, the high-quality design ensures optimal conductivity for superior signal integrity.
Is it suitable for industrial applications?
Yes, this coaxial cable is suitable for use in various industrial settings.
