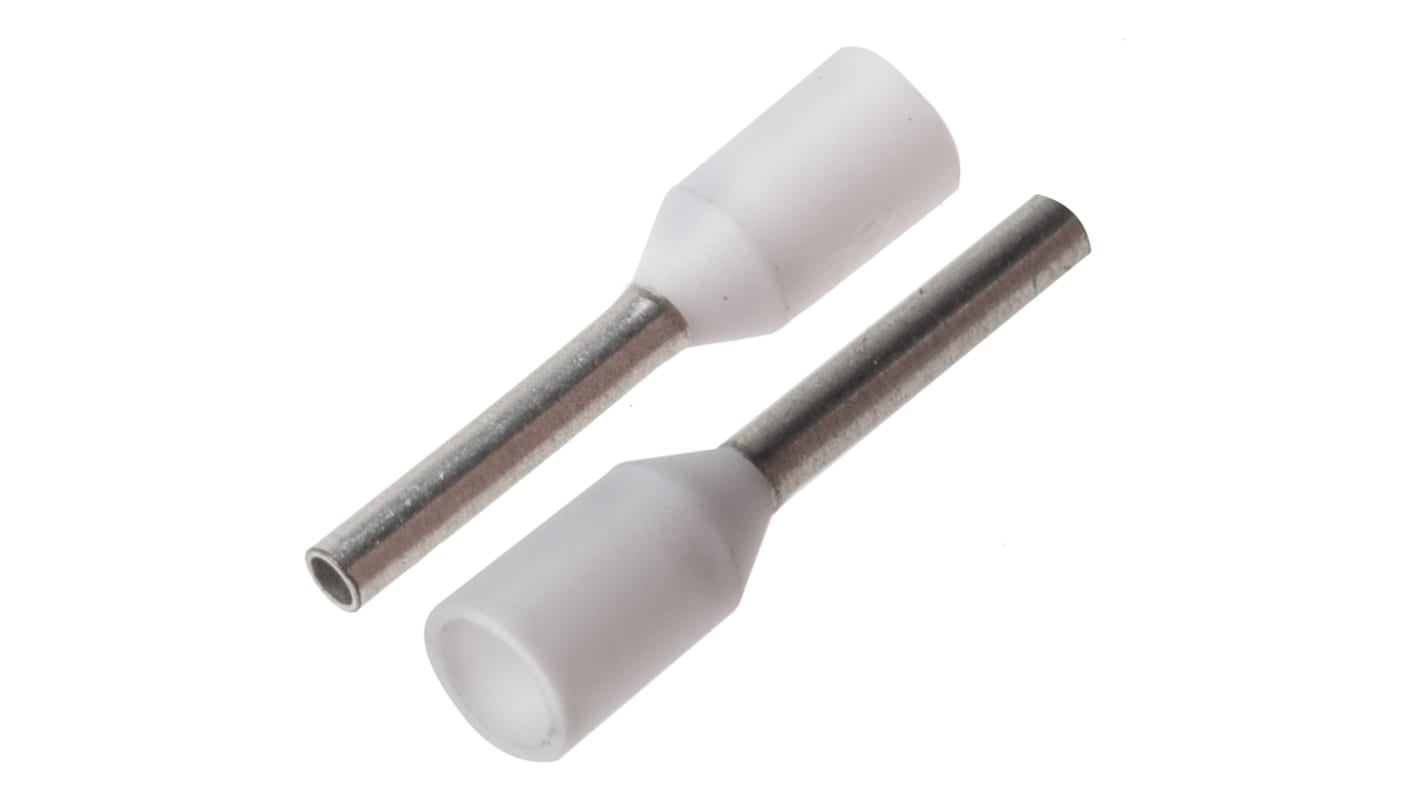

JST, FTR Insulated Crimp Bootlace Ferrule, 8mm Pin Length, 1mm Pin Diameter, 0.5mm² Wire Size, White
- RS Stock No.:
- 122-5194
- Mfr. Part No.:
- FTR0.5-8
- Brand:
- JST
2500 In stock for same day dispatch
Added
Price Each (In a Bag of 100)
Kr. 0,473
(exc. VAT)
Kr. 0,591
(inc. VAT)
| Units | Per unit | Per Bag* |
| 100 + | Kr. 0,473 | Kr. 47,30 |
| *price indicative | ||
- RS Stock No.:
- 122-5194
- Mfr. Part No.:
- FTR0.5-8
- Brand:
- JST
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
JST French Colour-Coded Insulated Bootlace Ferrule Crimp Terminals
A range of industrial standard French colour coded insulated bootlace ferrule crimp terminals. These insulated bootlace ferrule crimp terminals are made from oxygen free copper which is both robust and highly conductive with excellent mechanical and electrical characteristics. The terminals are then electroplated with tin and treated by a special process developed by JST. This method ensures that there is maximum adhesion of the electroplating, reduces electrical resistance and increases resistance to corrosion. The insulation of these bootlace crimp ferrules is made from polypropylene which has excellent flame resistance and insulation properties. These insulated bootlace crimp ferrules are available in various wire sizes.
JST Bootlace Ferrules
Specifications
Attribute | Value |
|---|---|
| Maximum Wire Size mm² | 0.5mm² |
| Pin Diameter | 1mm |
| Insulation Material | PP |
| Number of Entries | 1 |
| Colour | White |
| Pin Length | 8mm |
| Insulation | Insulated |
| Maximum Wire Size AWG | 20AWG |
| Overall Length | 14mm |
| Series | FTR |
