RS PRO RS380 Clamp Meter, Max Current 400A ac CAT III 600 V With UKAS Calibration
- RS Stock No.:
- 123-1977
- Brand:
- RS PRO
551 In stock for delivery within 3-5 working days
Not available for next day delivery
Added
Price Each
Kr. 1 490,82
(exc. VAT)
Kr. 1 863,52
(inc. VAT)
| Units | Per unit |
| 1 + | Kr. 1 490,82 |
- RS Stock No.:
- 123-1977
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

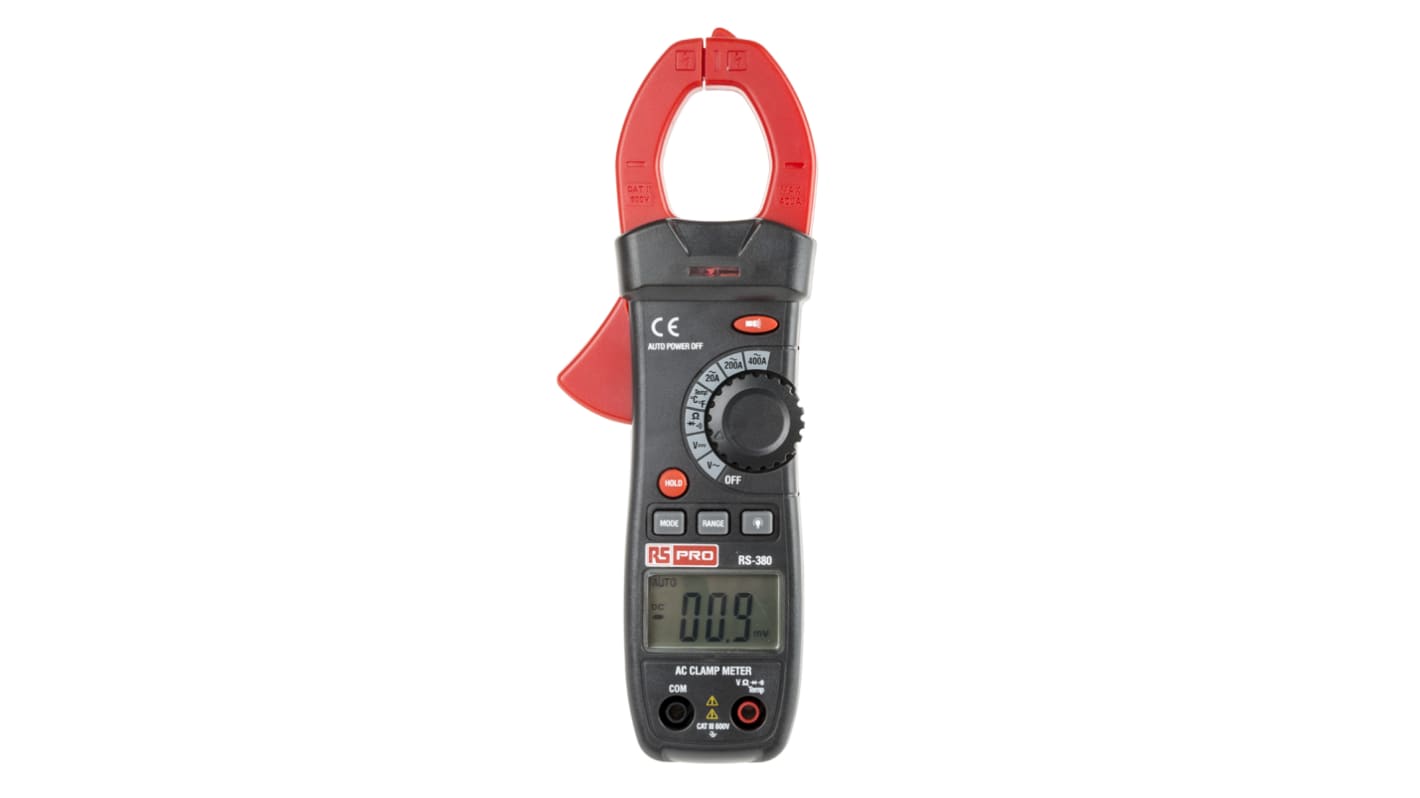

RS PRO RS380 Compact AC Auto-ranging Clamp Meter
A clamp meter is an electrical test tool that combines a basic digital multimeter with a current sensor. Clamps measure current such as AC current, AC and DC voltage, resistance, continuity, and, with some models, DC current, capacitance, temperature, frequency and more. Due to the hinged jaw, this tool allows the user to clamp the jaws around a wire, cable or other conductor at any point in an electrical system, then measure the current without disconnecting it.
The RS380 is a great value meter with a small body and jaw which opens 30mm (1.2"). Also available with this multimeter is test leads, a carrying case, temperature probe, 2 x AAA 1.5 V batteries and a user manual. There is also a “hold” function available in the compact design making it very user friendly
The RS380 is a great value meter with a small body and jaw which opens 30mm (1.2"). Also available with this multimeter is test leads, a carrying case, temperature probe, 2 x AAA 1.5 V batteries and a user manual. There is also a “hold” function available in the compact design making it very user friendly
Features and Benefits:
• 400 A AC Current Measurement
• 2000 Counts LCD display
• Auto power off
• Low battery indicator
• Non-contact voltage detection
• Resistance measurement, test measurement, Continuity and diode check
• Overvoltage Category III 600 V
• 2000 Counts LCD display
• Auto power off
• Low battery indicator
• Non-contact voltage detection
• Resistance measurement, test measurement, Continuity and diode check
• Overvoltage Category III 600 V
Dimensions: 197 mm x 70 mm x 40 mm
Supplied with
Test leads, carrying case, temperature probe, AAA 1.5 V batteries x2 and user manual
Specifications
Attribute | Value |
|---|---|
| Absolute Maximum AC Current Measurement | 400A ac |
| Absolute Maximum AC Voltage Measurement | 600V ac |
| Absolute Maximum DC Voltage Measurement | 600V dc |
| Absolute Maximum Resistance Measurement | 20MΩ |
| Model Number | RS380 |
| Calibrated | UKAS |
| AC Current Measurement Resolution | 0.01A ac |
| Clamp Meter Type | AC Current Clamp Meter |
| Best AC Current Accuracy | ±2.5% ± 5 Digits |
| Best AC Voltage Accuracy | ±1.5% ± 10 Digits |
| Best DC Voltage Accuracy | ±1.5% ± 2 Digits |
| True RMS | Yes |
| Jaw Capacity Busbars | 30mm |
| Functions Measured | AC Current, AC Voltage, Continuity, DC Voltage, Diode Test, Resistance, Temperature |
| Safety Category Level | CAT III |
| Best Resistance Measurement Accuracy | ±1% ± 4 Digits |
| Display Type | LCD |
| Maximum Operating Temperature | +40°C |
| Minimum Operating Temperature | +5°C |
| Height | 230mm |
| Weight | 230g |
| Best Temperature Measurement Accuracy | ±3% ± 5 Digits |
| DC Voltage Measurement Resolution | 0.1mV dc |
| Dimensions | 82 x 40 x 230mm |
| Resistance Measurement Resolution | 100mΩ |
| Length | 82mm |
| Width | 40mm |
| Non-Contact Voltage Detector | Yes |
| Power Source | Battery |
| Safety Category | CAT III 600 V |
| Absolute Maximum Temperature Measurement | +1400 °F, +760°C |
| Battery Type | AAA |
| Safety Category Voltage | 600V |
| AC Voltage Measurement Resolution | 0.1mV ac |
| Temperature Measurement Resolution | 1 °C, 1 °F |
