Fluke 323 Clamp Meter CAT III 600V, CAT IV 300V With RS Calibration

  • RS Stock No. 765-6988
  • Mfr. Part No. FLUKE 323
  • Brand Fluke
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): CN
Product Details

Fluke 320 Series True RMS Clampmeters

The Fluke 323, 324 and 325 are designed to perform in the toughest environments and provide noise-free, reliable results to diagnose problems. True RMS measurements and optimised ergonomics make the 320 Series the best and easiest-to-use general troubleshooting tools for commercial and residential electricians.

Features & Benefits

True RMS AC voltage and current for accurate measurements on non-linear signals The 325 also supports DC current measurement and min / max
Ergonomic, slender design
Improved functionality
Large, easy-to-read backlight display (324 and 325 only)
CAT IV 300 V/CAT III 600 V safety rating

Supplied with

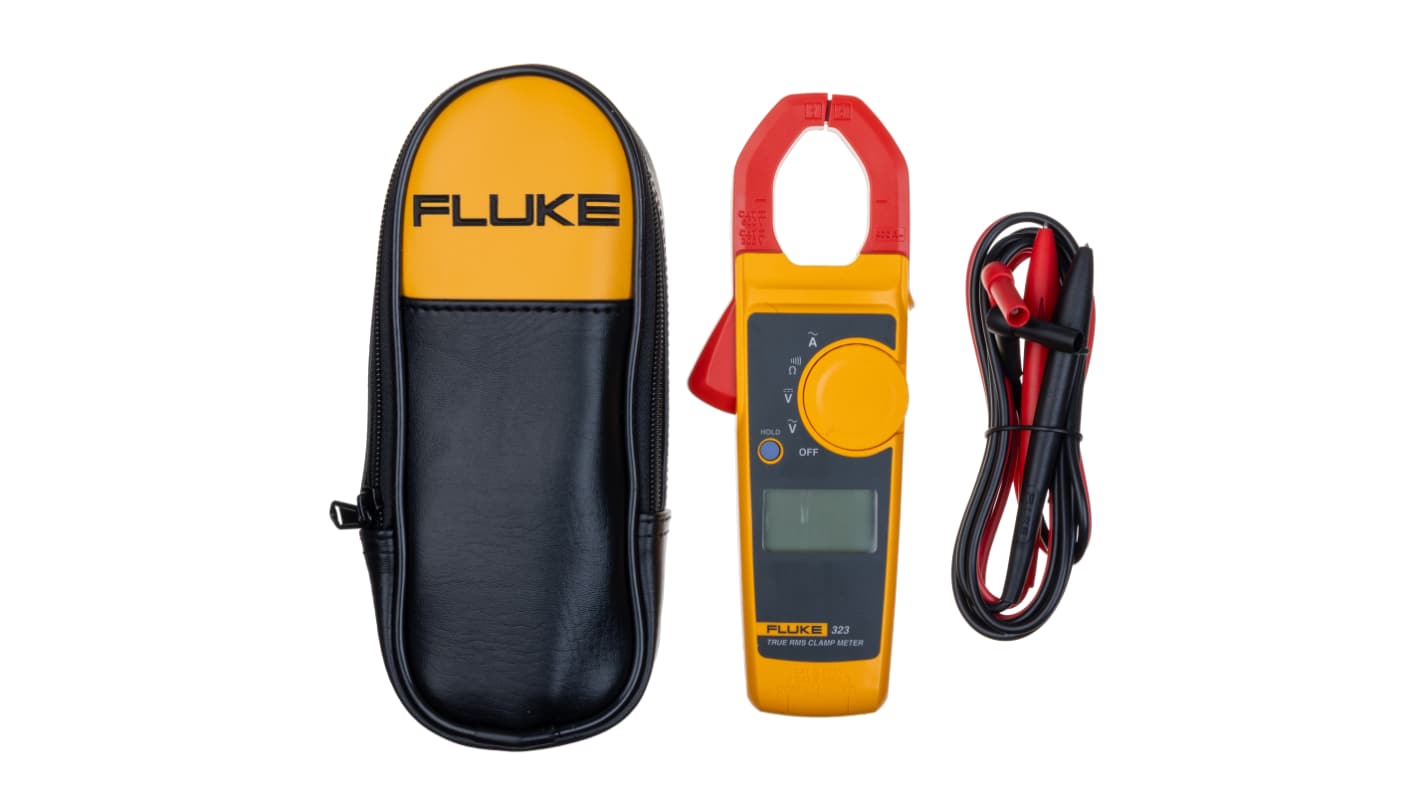

Clamp meter, Test leads, Soft case, user manual.

Fluke True-RMS Clamp Meter

The Fluke 320 series True-RMS clamp meter measures current up to 400A AC and voltage up to 600V AC/DC. This product is designed to verify the presence of load current, AC voltage, and continuity of circuits, switches, fuses, and contacts. It also offers DC and frequency measurements and is supplied with test leads, a soft case and a user manual. You can trust the 323 to help you confidently diagnose all kinds of electrical problems. It is an ideal troubleshooting tool for commercial and residential electricians.

Features and Benefits

400ohm resistance measurement True RMS AC voltage and current for accurate measurements on non-linear signals Operating temperature ranges between -10°C and 50° Frequency measurement Slim, ergonomic design Large, easy to read backlight display Hold button

Applications

Electricians Commercial sites Residential plant maintenance Home inspections HVAC/R

Certifications

CE certified cUS approved TUV approved

Specifications
Attribute Value
Absolute Maximum AC Voltage Measurement 600V ac
Absolute Maximum DC Voltage Measurement 600V dc
Absolute Maximum Resistance Measurement 400Ω
Model Number 323
Calibrated RSCAL
AC Current Measurement Resolution 100mA ac
Clamp Meter Type Current, Voltage
Best AC Current Accuracy ±2% +5 digits
Best AC Voltage Accuracy ±1% + 5 Digits
Maximum Conductor Size 30mm
AC Voltage Measurement Resolution 0.1V ac
Height 34mm
Minimum Operating Temperature -10°C
Functions Measured AC Current, AC Voltage, Continuity, DC Voltage, Resistance
DC Voltage Measurement Resolution 0.1V
Dimensions 207 x 75 x 34mm
Resistance Measurement Resolution 100mΩ
Length 207mm
Width 75mm
Safety Category Level CAT III, CAT IV
Maximum Operating Temperature +50°C
Display Type LCD
Safety Category CAT III 600V, CAT IV 300V
Battery Type AAA
Safety Category Voltage 300 V, 600 V
Weight 265g
Power Source Battery
