Testo 770-2 Clamp Meter, Max Current 400A ac CAT III 1000V With RS Calibration
- RS Stock No.:
- 905-6699
- Mfr. Part No.:
- 0590 7702
- Brand:
- Testo
2 In stock for delivery within 3-5 working days
Not available for next day delivery
Added
Price Each
Kr. 2 765,00
(exc. VAT)
Kr. 3 456,25
(inc. VAT)
| Units | Per unit |
| 1 + | Kr. 2 765,00 |
- RS Stock No.:
- 905-6699
- Mfr. Part No.:
- 0590 7702
- Brand:
- Testo
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

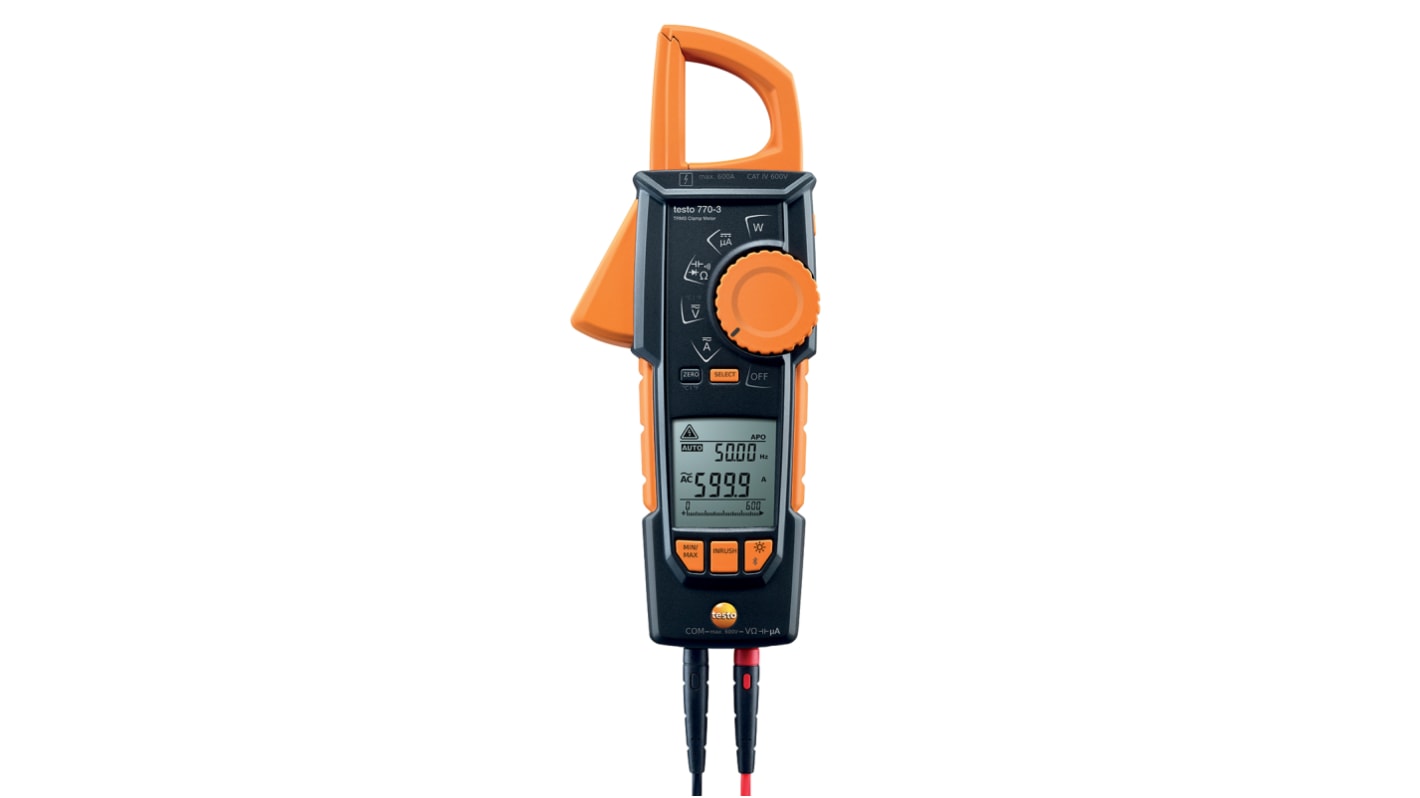

Testo 770-2 Clampmeter
Testo 770-2 is suited for current measurement in switching cabinets. One of the two pincer arms can be fully retracted into the instrument. This unique mechanism means that cables in tight switching cabinets can be easily grabbed. The automatic measurement parameter detection also enables reliable work. Testo 770-2 detect direct and alternating current and select other parameters such as resistance, continuity, diode and capacitance automatically. The clamp meter also has a μA range as well an integrated temperature adapter for all type K thermocouples.
Benefits
No more problems grabbing cables in confined spaces
Grab cables with the clamp instead of touching them
Clear visible measurement results
Grab cables with the clamp instead of touching them
Clear visible measurement results
Standards
EN 61326-1, EN 61140
Approvals
TÜV, CSA, CE
Supplied with
Testo 770-2 TRMS clamp meter, batteries, 1 set of measuring cables and 1 x adapter or type k thermocouples.
Testo Clamp Meter, 1mV to 600V AC/DC Voltage Measuring Range, Battery-Powered - 770 Series - 0590 7702
Reliably monitor the functioning of conductors with this clamp meter from Testo. You can fully retract one of its two pincer arms, which makes it easy to grab conductors in cabinets where space is limited. This versatile unit is designed to measure parameters such as AC and DC voltage and current, as well as resistance, frequency and temperature. Its large, two-line LCD screen is easy to read for quick data analysis.
Features & Benefits
• Supplied with a temperature adapter for quick connection with type K thermocouples
• Wide operating temperature range of -10°C to +50°C for use in demanding environments
• Broad voltage measuring range of 1mV to 600V AC/DC for use in low and high-power applications
• Wide operating temperature range of -10°C to +50°C for use in demanding environments
• Broad voltage measuring range of 1mV to 600V AC/DC for use in low and high-power applications
Applications
• Motor windings
• Heating systems
• Heating systems
Is this clamp meter portable?
Yes, this clamp meter is powered by three AAA batteries for portable use.
Specifications
Attribute | Value |
|---|---|
| Absolute Maximum AC Current Measurement | 400A ac |
| Absolute Maximum AC Voltage Measurement | 600V ac |
| Absolute Maximum Resistance Measurement | 40MΩ |
| Model Number | 770-2 |
| Calibrated | RSCAL |
| AC Current Measurement Resolution | 100mA |
| DC Current Measurement Resolution | 100mA |
| Best DC Current Accuracy | ±(2% rdg + 5dgts) |
| Clamp Meter Type | AC/DC Clamp Meter |
| Best AC Current Accuracy | ±(2% rdg + 5dgts) |
| Best AC Voltage Accuracy | ±(1% rdg + 3dgts) |
| Best DC Voltage Accuracy | ±(0.8% rdg + 3dgts) |
| True RMS | Yes |
| Functions Measured | AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature |
| AC Voltage Measurement Resolution | 1mV |
| Height | 43mm |
| Length | 243mm |
| Width | 96mm |
| Power Source | Battery |
| DC Voltage Measurement Resolution | 1mV |
| Minimum Operating Temperature | -10°C |
| Dimensions | 243 x 96 x 43mm |
| DC Current Measurement Range | 0.1 → 400 A |
| Maximum Operating Temperature | +50°C |
| Display Type | LCD |
| Safety Category | CAT III 1000 V, CAT IV 600V |
| Absolute Maximum Temperature Measurement | +500°C |
| Battery Type | AAA |
| Safety Category Voltage | 600 V, 1000V |
| Temperature Measurement Resolution | 0.2°C |
| Weight | 378g |
| AC Current Measurement Range | 0.1 → 400 A |
| AC Voltage Measurement Range | 0.001 → 600 V |
