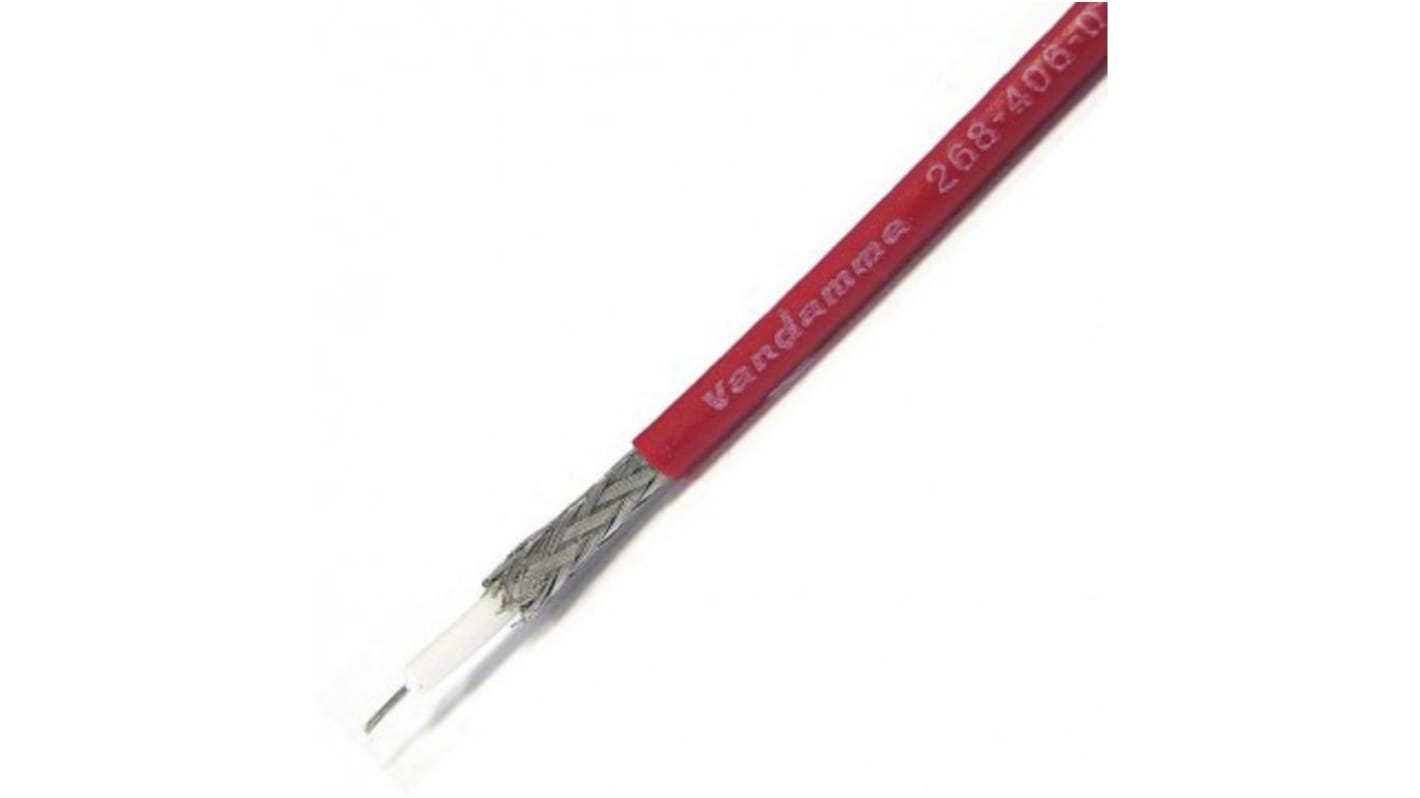

Van Damme Mini Standard 75 Series Coaxial Cable, 100m, RG179 Coaxial, Unterminated

RS Stock No.:: 427-474
Mfr. Part No.:: 268-406-020
Brand:: Van Damme

Van Damme Mini Standard 75 Series Coaxial Cable, 100m, RG179 Coaxial, Unterminated

3 In stock for same day dispatch

Added

Price 1 Reel of 100 Metre(s)

Kr. 1 666,72

(exc. VAT)

Kr. 2 083,40

(inc. VAT)

Reel(s)	Per Reel	Per Metre*
1 +	Kr. 1 666,72	Kr. 16,667
*price indicative

RS Stock No.:: 427-474
Mfr. Part No.:: 268-406-020
Brand:: Van Damme

Technical Reference

Legislation and Compliance

COO (Country of Origin):: IT

Product Details

Standard Mini 75Ω Video Cable

Designed and created due to the increasing demand for a quality range of OFC Cables. Stringent copper purity tests have resulted in a highly flexible yet extremely robust range of cables. This range of cable caters for the professional in audio recording or broadcast.

Combines small overall diameter with precision 75Ω performance
Dimensionally equivalent to RG179
Ideal for internal rack wiring, patch panels and multi-pin connectors where a reduced O/D is essential
Suitable for the transmission of serial digital video
Uses RG179 BNC connectors
Connector / cable group E

Specifications

Attribute	Value
Terminated/Unterminated	Unterminated
Coaxial Type	RG179
Outer Diameter	2.6mm
Characteristic Impedance	75 Ω
Attenuation	15.77 dB/100m @ 50MHz, 22.74 dB/100m @ 100MHz, 26.64 dB/100m @ 135MHz, 30.99 dB/100m @ 180MHz
Length	100m
Sheath Colour	Red
Conductor Strand Type	Stranded
Minimum Operating Temperature	-25°C
Size of Strands	0.12 mm
Capacitance	56.5pF/m
Core Strands	7/0.12
Series	Mini Standard 75
Velocity ratio	78%
Insulation Material	PE
Sheath Material	Polyvinyl Chloride PVC
Conductor Material	Bare Copper
Maximum Operating Temperature	+70°C
Number of Strands	7
Operating Temperature Range	-25 → +70 °C
