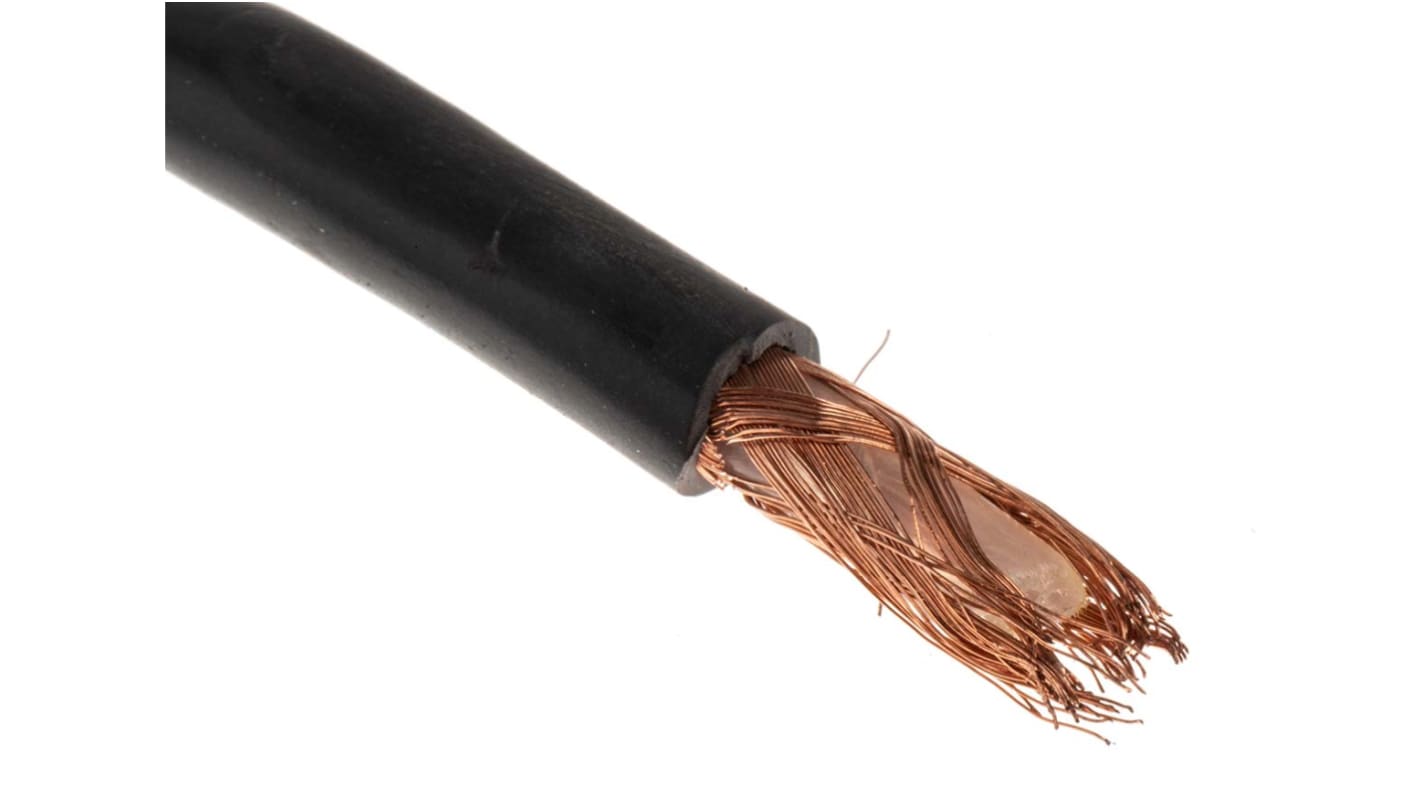

Alpha Wire MEC COAXIAL Series Coaxial Cable, 304m, RG62A/U Coaxial, Unterminated

RS Stock No.:: 168-2962
Mfr. Part No.:: 9062A BK001
Brand:: Alpha Wire

Alpha Wire MEC COAXIAL Series Coaxial Cable, 304m, RG62A/U Coaxial, Unterminated

3 In stock for same day dispatch

Added

Price 1 Reel of 304 Metre(s)

Kr. 4 362,60

(exc. VAT)

Kr. 5 453,25

(inc. VAT)

Reel(s)	Per Reel	Per Metre*
1 - 4	Kr. 4 362,60	Kr. 14,351
5 - 9	Kr. 4 122,80	Kr. 13,562
10 +	Kr. 3 882,56	Kr. 12,772
*price indicative

RS Stock No.:: 168-2962
Mfr. Part No.:: 9062A BK001
Brand:: Alpha Wire

Technical Reference

Legislation and Compliance

Product Details

RG 62 A / U coaxial cable

The Alpha Wire RG 62 A / U coaxial cables are precisely designed to broadcast video transmission at the highest quality whilst achieving low capacitance, high velocities of propagation and tight tolerances for maximum signal integrity.
The cable is composed of 0.64 mm copper coated steel core, semi-solid polyethylene dielectric insulation and a copper braided shield (95% coverage) in a 6.15 mm black PVC sheath, allowing it to remain functional throughout a range of temperatures.

Specifications

Attribute	Value
Terminated/Unterminated	Unterminated
Coaxial Type	RG62A/U
Outer Diameter	6.15mm
Characteristic Impedance	93 Ω
Attenuation	13 dB/100ft @ 1GHz, 8 dB/100ft @ 400MHz
Length	304m
Sheath Colour	Black
Conductor Strand Type	Solid
Maximum Operating Temperature	+80°C
Size of Strands	22 AWG
Conductor Material	Bare Copper
Capacitance	43.3pF/m
Core Strands	1/22
Series	MEC COAXIAL
Minimum Operating Temperature	-20°C
Velocity ratio	83%
Insulation Material	PE
Sheath Material	Polyvinyl Chloride PVC
Number of Strands	1
Operating Temperature Range	-20 → +80 °C
