Alpha Wire MEC COAXIAL Series Coaxial Cable, 30m, RG196A/U Coaxial, Unterminated
- RS Stock No.:
- 176-9750
- Mfr. Part No.:
- 9196A WH005
- Brand:
- Alpha Wire
27 In stock for same day dispatch
Added
Price 1 Reel of 30 Metre(s)
Kr. 1 768,69
(exc. VAT)
Kr. 2 210,86
(inc. VAT)
| Reel(s) | Per Reel | Per Metre* |
| 1 - 4 | Kr. 1 768,69 | Kr. 58,956 |
| 5 - 9 | Kr. 1 671,34 | Kr. 55,711 |
| 10 + | Kr. 1 574,10 | Kr. 52,47 |
| *price indicative | ||
- RS Stock No.:
- 176-9750
- Mfr. Part No.:
- 9196A WH005
- Brand:
- Alpha Wire
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Product Details

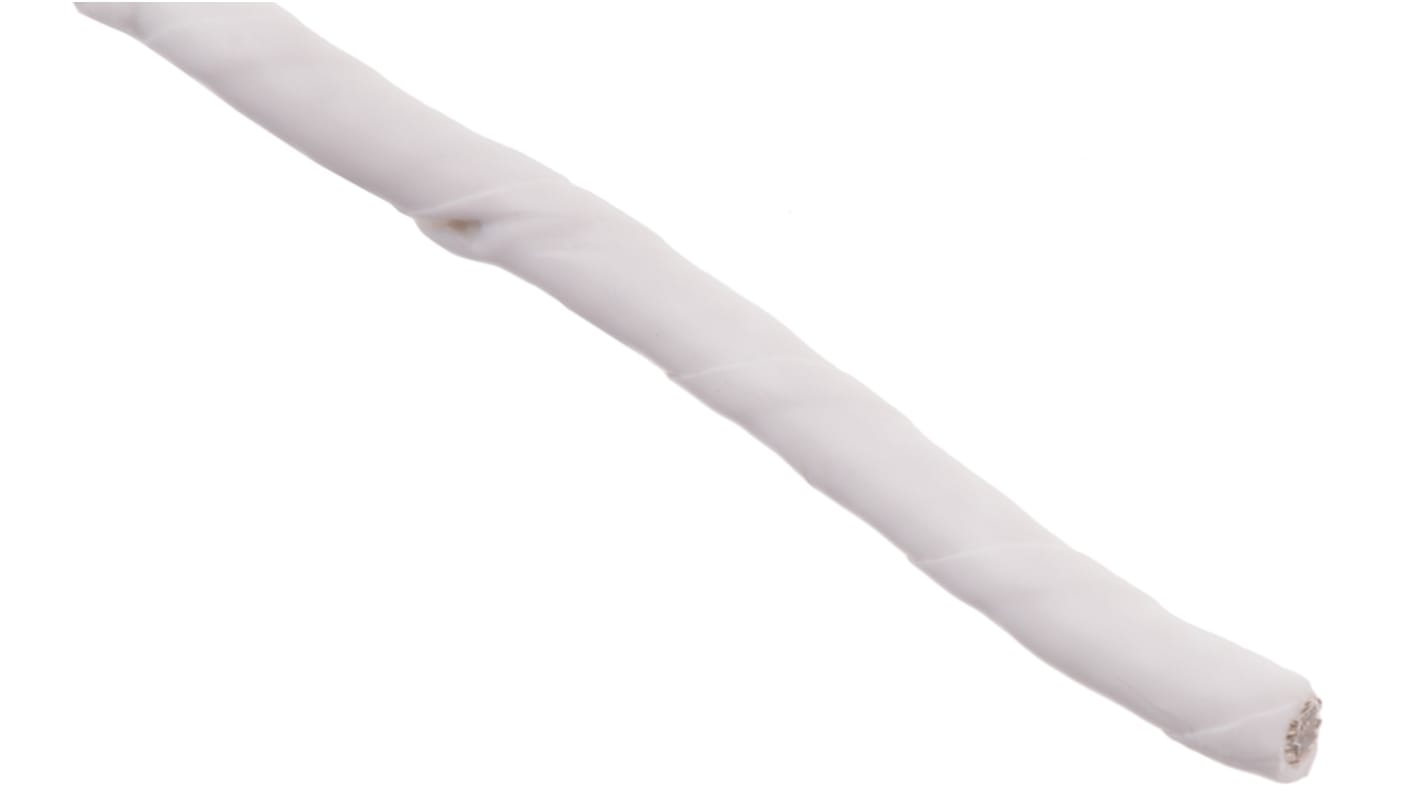

RG 196 A/U coaxial cable
The RG 196 A/U cable consists of a 7 x 0.1 mm (0.16 mm2) silver-plated copper core, a TFE dielectric, and a silver-plated copper braid with a Ø 1.93 mm natural coloured TFE sleeve.
Approvals
MIL-C 17D
Specifications
Attribute | Value |
|---|---|
| Terminated/Unterminated | Unterminated |
| Coaxial Type | RG196A/U |
| Outer Diameter | 1.91mm |
| Characteristic Impedance | 50 Ω |
| Attenuation | 29 dB/100ft @ 400MHz |
| Length | 30m |
| Sheath Colour | White |
| Conductor Strand Type | Stranded |
| Minimum Operating Temperature | -55°C |
| Velocity ratio | 70% |
| Sheath Material | Polytetrafluoroethylene PTFE |
| Insulation Material | PTFE |
| Number of Strands | 7 |
| Operating Temperature Range | -55 → +200 °C |
| Maximum Operating Temperature | +200°C |
| Size of Strands | 38 AWG |
| Conductor Material | Silver Plated Copper Clad Steel |
| Capacitance | 96.104pF/m |
| Core Strands | 7/38 |
| Series | MEC COAXIAL |
