- RS Stock No.:
- 521-7916
- Brand:
- Belden
Available to back order for despatch 03.05.2024
Price 1 Reel of 500 Metre(s)
kr 8 871,50
(exc. VAT)
kr 11 089,38
(inc. VAT)
Reel(s) | Per Reel | Per Metre* |
1 + | kr 8 871,50 | kr 17,743 |
*price indicative |
- RS Stock No.:
- 521-7916
- Brand:
- Belden
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- NL
Product Details

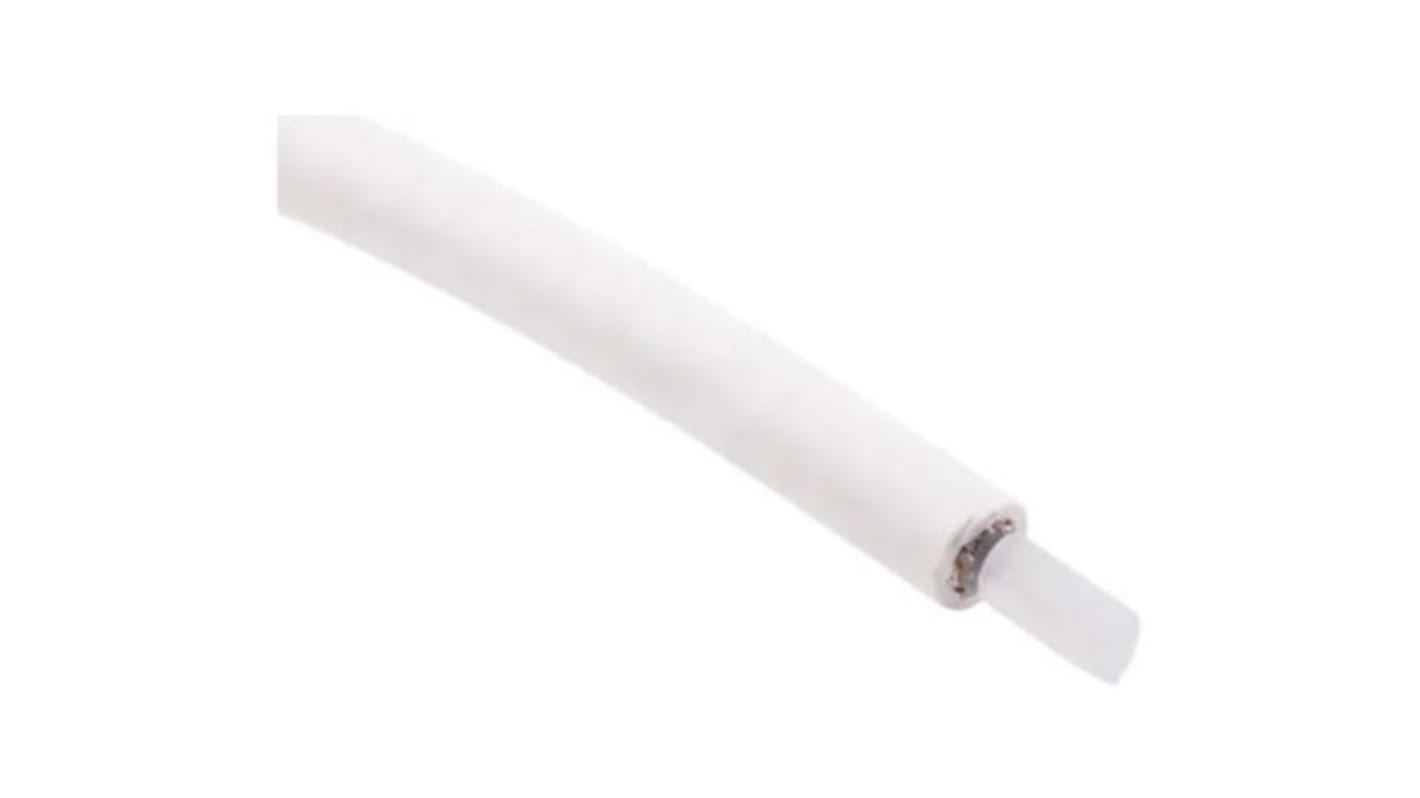

RS PRO White Unterminated to Unterminated RG58 Coaxial Cable, 50 Ω 4.95 mm OD 500 m
Looking to connect a radio frequency antenna to an electronic device? The RS PRO unterminated to unterminated RG58 coaxial cable is designed to do exactly that. It can join a satellite antenna to a TV, link a digital audio signal to a radio or connect computer networks over the internet. It comes in a handy 500-m reel so it's easy to carry between jobs.
This lead has a 50 ohms (Ω) rating for resistance, so it's best-suited to transmitting data and wireless communications. As an RG58 cable, it's one of the smallest options available.
As part of our RS PRO range, it's been tested by engineers for consistency and durability. There's a hardwearing fluorinated ethylene propylene (FEP) jacket to stop the inner cable corroding. The internal wiring is double shielded, so you'll benefit from improved image quality and less noise interference.
This lead has a 50 ohms (Ω) rating for resistance, so it's best-suited to transmitting data and wireless communications. As an RG58 cable, it's one of the smallest options available.
As part of our RS PRO range, it's been tested by engineers for consistency and durability. There's a hardwearing fluorinated ethylene propylene (FEP) jacket to stop the inner cable corroding. The internal wiring is double shielded, so you'll benefit from improved image quality and less noise interference.
Features and Benefits
• 19 wire strands of size 33 AWG
• Tinned copper conductors
• Unterminated to unterminated
• Annealed tinned copper braid to reduce interference
• Impedance of 50 Ω
• Capacitance of 101 pF/m
• Length of 500 m
• PVC sheath for protection
• Diameter of 4.95 mm
• Attenuation: 37.7 dB/100 m at 400 MHz, 55.8 dB/100 m at 700 MHz, 65.6 dB/100 m at 900 MHz, 70.5 dB/100 m at 1 GHz
• Minimum operating temperature of -40°C without cracking
• Maximum operating temperature of +85°C without melting
• Unterminated cable
• Complies with EU Directives 2011/65/EU and 2015/863 on restricted substances
• Tinned copper conductors
• Unterminated to unterminated
• Annealed tinned copper braid to reduce interference
• Impedance of 50 Ω
• Capacitance of 101 pF/m
• Length of 500 m
• PVC sheath for protection
• Diameter of 4.95 mm
• Attenuation: 37.7 dB/100 m at 400 MHz, 55.8 dB/100 m at 700 MHz, 65.6 dB/100 m at 900 MHz, 70.5 dB/100 m at 1 GHz
• Minimum operating temperature of -40°C without cracking
• Maximum operating temperature of +85°C without melting
• Unterminated cable
• Complies with EU Directives 2011/65/EU and 2015/863 on restricted substances
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
theyre only given the RS PRO Seal of Approval if were confident of their exceptional quality, which means you can be confident too.
Specifications
Attribute | Value |
---|---|
Terminated/Unterminated | Unterminated |
Coaxial Type | RG58 |
Outer Diameter | 4.95mm |
CPR Certification | Eca |
Characteristic Impedance | 50 Ω |
Attenuation | 4.7 dB/100m |
Length | 500m |
Sheath Colour | White |
Conductor Strand Type | Stranded |
Number of Strands | 19 |
Sheath Material | Polyvinyl Chloride PVC |
Shielding | Annealed Tinned Copper Braid |
Insulation Material | PE |
Velocity ratio | 66% |
Minimum Operating Temperature | -40°C |
Core Strands | 0.9/2.95 |
Capacitance | 100pF/m |
Conductor Material | Tinned Copper |
Size of Strands | 33 AWG |
Maximum Operating Temperature | +70°C |
Operating Temperature Range | -40 → +70 °C |
