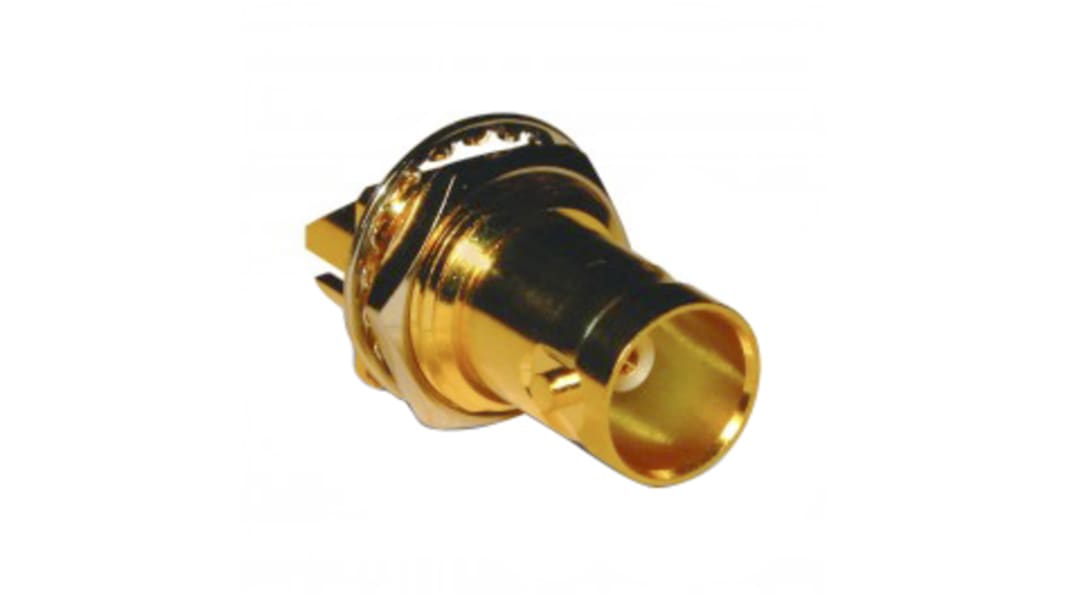

Amphenol RF BNC Series, jack PCB Mount BNC Connector, 75Ω, Solder Termination, Straight Body
- RS Stock No.:
- 143-9731
- Mfr. Part No.:
- 112740-13
- Brand:
- Amphenol RF
200 In stock for same day dispatch
Added
Price Each (In a Bag of 100)
Kr. 66,374
(exc. VAT)
Kr. 82,968
(inc. VAT)
| Units | Per unit | Per Bag* |
| 100 + | Kr. 66,374 | Kr. 6 637,40 |
| *price indicative | ||
- RS Stock No.:
- 143-9731
- Mfr. Part No.:
- 112740-13
- Brand:
- Amphenol RF
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Bayonet coupling mechanism provides positive, quick mating and un-mating
50 Ω and 75 Ω impedance designs allow customers to match impedance to system requirements
Connectors are available for military, industrial and commercial applications
50 Ω and 75 Ω impedance designs allow customers to match impedance to system requirements
Connectors are available for military, industrial and commercial applications
RF Connector, BNC End Launch Jack for 0.062 inch PCB, 75 Ohm, Bulkhead, Includes 14mm Hex Nut
Specifications
Attribute | Value |
|---|---|
| Coaxial Connector Type | BNC Connector |
| Gender | Female |
| Mounting Type | PCB Mount |
| Impedance | 75Ω |
| Termination Method | Solder |
| Body Orientation | Straight |
| Size | Standard |
| Bulkhead | Yes |
| Operating Frequency | 4GHz |
| Minimum Operating Temperature | -65°C |
| Body Plating | Gold |
| Polarity | Normal |
| Maximum Operating Temperature | +165°C |
| Series | BNC |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold |
