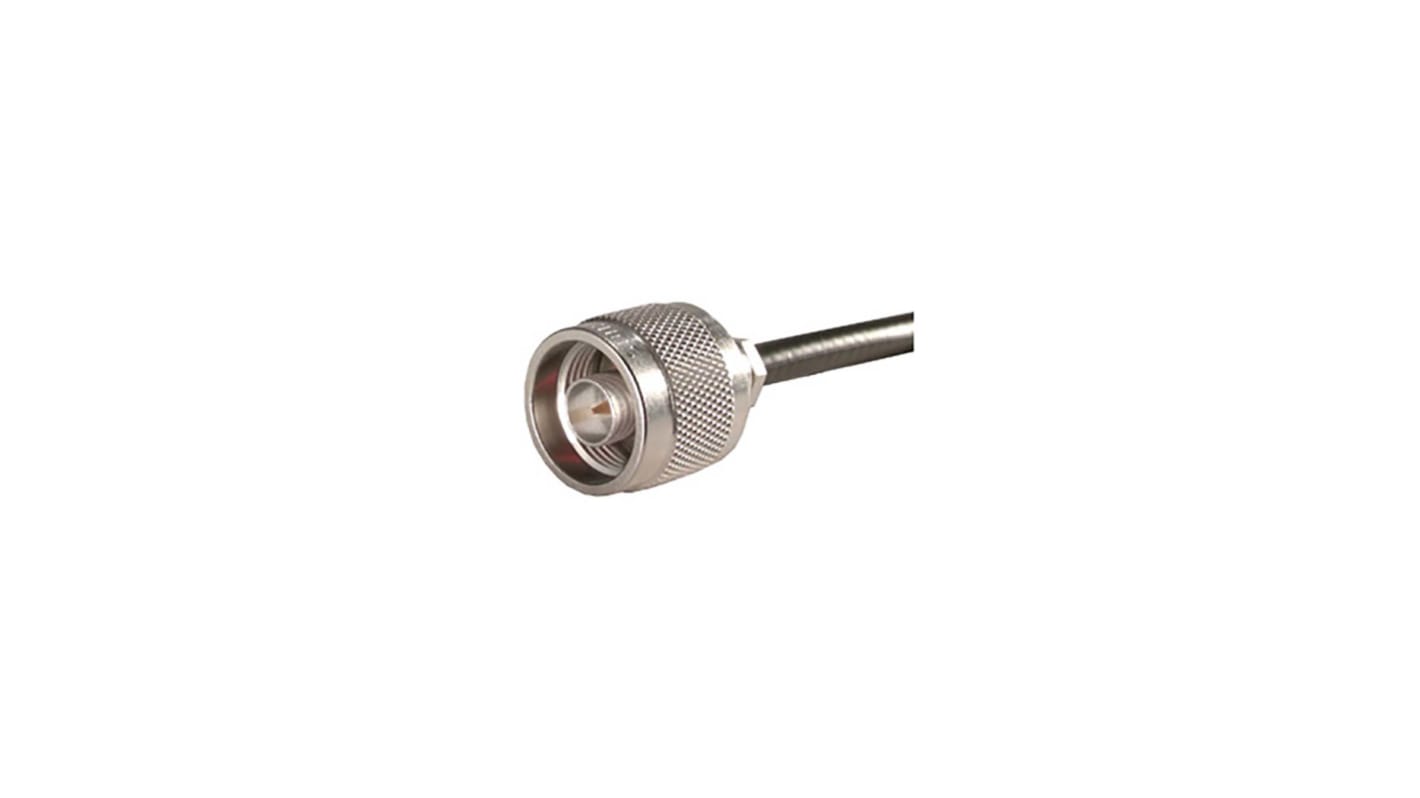

Huber+Suhner 11_N-50-3-54/133_NE Series Cable Male N Connector, 50 Ω, Straight Body Clamp
- RS Stock No.:
- 205-8927
- Distrelec Article No.:
- 302-15-175
- Mfr. Part No.:
- 11_N-50-3-54/133_NE
- Brand:
- Huber+Suhner
Bulk discount available
Subtotal (1 unit)*
Kr. 857,31
(exc. VAT)
Kr. 1 071,64
(inc. VAT)
FREE delivery for online orders over 500,00 kr
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | Kr. 857,31 |
| 10 - 24 | Kr. 782,72 |
| 25 - 49 | Kr. 720,03 |
| 50 - 99 | Kr. 666,95 |
| 100 + | Kr. 600,14 |
*price indicative
- RS Stock No.:
- 205-8927
- Distrelec Article No.:
- 302-15-175
- Mfr. Part No.:
- 11_N-50-3-54/133_NE
- Brand:
- Huber+Suhner
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Huber+Suhner | |
| Coaxial Connector Type | N Connector | |
| Product Type | Coaxial Connector | |
| Mount Type | Cable | |
| Impedance | 50Ω | |
| Connector Gender | Male | |
| Orientation | Straight | |
| Cable Type | Coaxial | |
| Size | Standard | |
| Bulkhead | No | |
| Operating Frequency | 18 GHz | |
| Body Plating | Brass | |
| Minimum Operating Temperature | -65°C | |
| Maximum Operating Temperature | 165°C | |
| Termination Type | Clamp | |
| Polarity | Normal | |
| Series | 11_N-50-3-54/133_NE | |
| Contact Gender | Male | |
| Standards/Approvals | RoHS | |
| Contact Material | Brass | |
| Contact Plating | Gold | |
| Select all | ||
|---|---|---|
Brand Huber+Suhner | ||
Coaxial Connector Type N Connector | ||
Product Type Coaxial Connector | ||
Mount Type Cable | ||
Impedance 50Ω | ||
Connector Gender Male | ||
Orientation Straight | ||
Cable Type Coaxial | ||
Size Standard | ||
Bulkhead No | ||
Operating Frequency 18 GHz | ||
Body Plating Brass | ||
Minimum Operating Temperature -65°C | ||
Maximum Operating Temperature 165°C | ||
Termination Type Clamp | ||
Polarity Normal | ||
Series 11_N-50-3-54/133_NE | ||
Contact Gender Male | ||
Standards/Approvals RoHS | ||
Contact Material Brass | ||
Contact Plating Gold | ||
- COO (Country of Origin):
- CH
The Huber & Suhner coaxial connector has 50 Ohm impedance. The electrical cable that has an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield. It has 18 GHz interface frequency and the body made from brass material. Coaxial cable is durable, easy to install and are designed to carry signals over long distances.
Impedance 50 O
Interface frequency max. 18 GHz
Frequency range DC to 4 GHz 4 to 10 GHz 10 to 12.4 GHz
Return loss 26 dB 21 dB 19 dB
Centre contact soldered
Outer contact clamped
Weight 0.0321 kg
Operating temperature -65 °C to 165 °C
