Radiall BNC Series Coaxial Connector Flange Female BNC, 50 Ω, Straight Body Solder
- RS Stock No.:
- 295-7857
- Mfr. Part No.:
- R141407000W
- Brand:
- Radiall
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
Kr. 168,63
(exc. VAT)
Kr. 210,79
(inc. VAT)
FREE delivery for online orders over 750,00 kr
In Stock
- 342 unit(s) ready to ship
- Plus 45 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | Kr. 168,63 |
| 25 - 49 | Kr. 154,67 |
| 50 - 99 | Kr. 147,23 |
| 100 - 249 | Kr. 141,63 |
| 250 + | Kr. 138,08 |
*price indicative
- RS Stock No.:
- 295-7857
- Mfr. Part No.:
- R141407000W
- Brand:
- Radiall
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Radiall | |
| Coaxial Connector Type | BNC | |
| Product Type | Coaxial Connector | |
| Mount Type | Flange | |
| Impedance | 50Ω | |
| Connector Gender | Female | |
| Orientation | Straight | |
| Size | Standard | |
| Bulkhead | Yes | |
| Operating Frequency | 4GHz | |
| Body Plating | Nickel | |
| Minimum Operating Temperature | -65°C | |
| Polarity | Normal | |
| Maximum Operating Temperature | 165°C | |
| Termination Type | Solder | |
| Series | BNC | |
| Contact Gender | Female | |
| Contact Material | Beryllium Copper Alloy | |
| Standards/Approvals | No | |
| Contact Plating | Gold over Nickel | |
| Select all | ||
|---|---|---|
Brand Radiall | ||
Coaxial Connector Type BNC | ||
Product Type Coaxial Connector | ||
Mount Type Flange | ||
Impedance 50Ω | ||
Connector Gender Female | ||
Orientation Straight | ||
Size Standard | ||
Bulkhead Yes | ||
Operating Frequency 4GHz | ||
Body Plating Nickel | ||
Minimum Operating Temperature -65°C | ||
Polarity Normal | ||
Maximum Operating Temperature 165°C | ||
Termination Type Solder | ||
Series BNC | ||
Contact Gender Female | ||
Contact Material Beryllium Copper Alloy | ||
Standards/Approvals No | ||
Contact Plating Gold over Nickel | ||

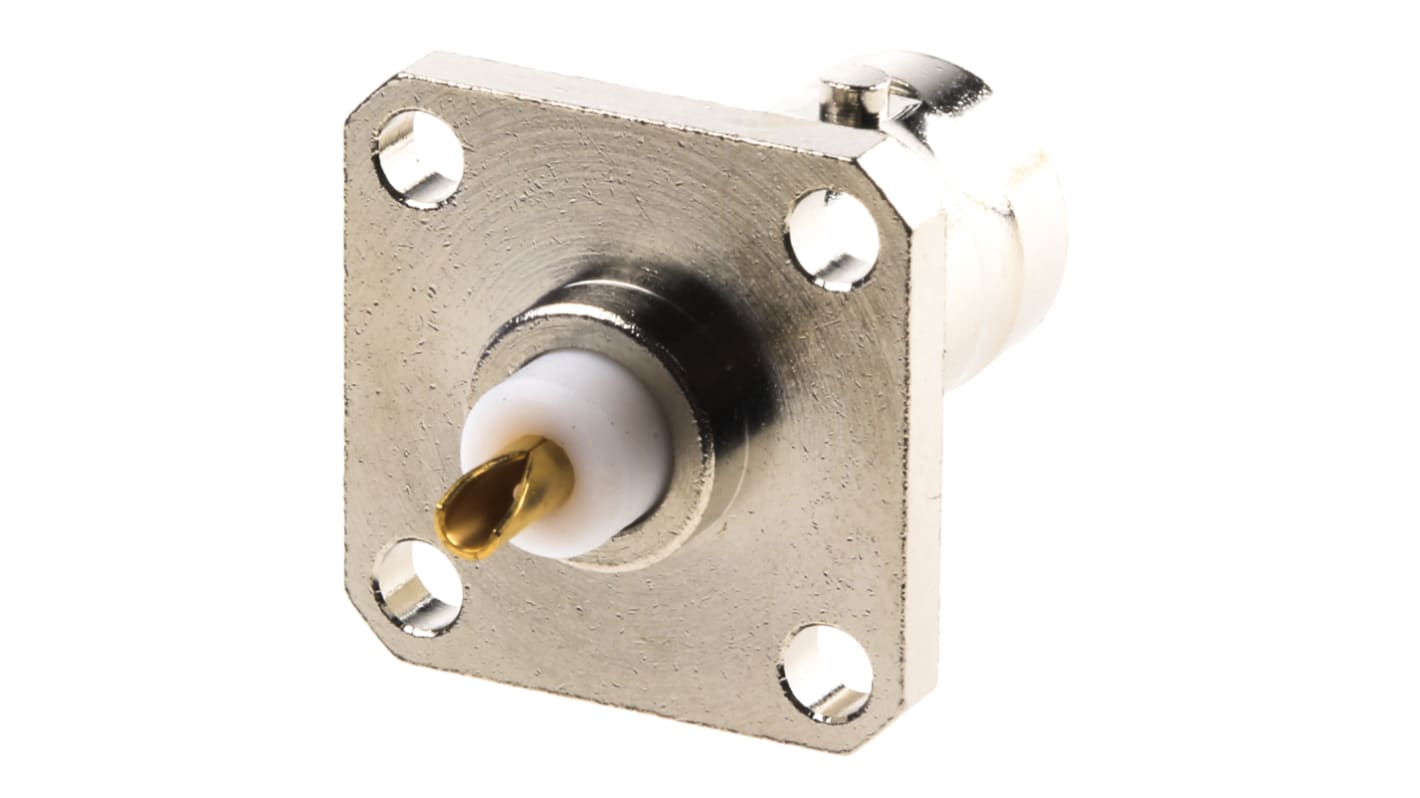

Straight female BNC sockets with flange
Straight sockets with square flanges for panel mounting.
Mount using four screws (not provided).
Solder connection.
Radiall BNC RF Coaxial Connectors
Brass -bodied connectors with PTFE insulators, and gold plated brass centre contacts. Certain connectors are available in both crimp and clamp braiding options and bulkhead sockets. A commercial range of BNC plugs and bulkhead sockets is available in bulk packs of 100. These have a different specification to the standard Radiall range. See the respective details in the technical specification table below.
