RS PRO 75Ω Straight Panel Mount BNC ConnectorBulkhead Fitting, jack, Mini RG59


1645 In stock for delivery within 1 working days
Add to Basket

Price Each

kr 12,66

(exc. VAT)

kr 15,82

(inc. VAT)

Units

Added

RS Stock No.:
546-3759
Brand:
RS PRO
COO (Country of Origin):
TW
UnitsPer unit
1 +kr 12,66

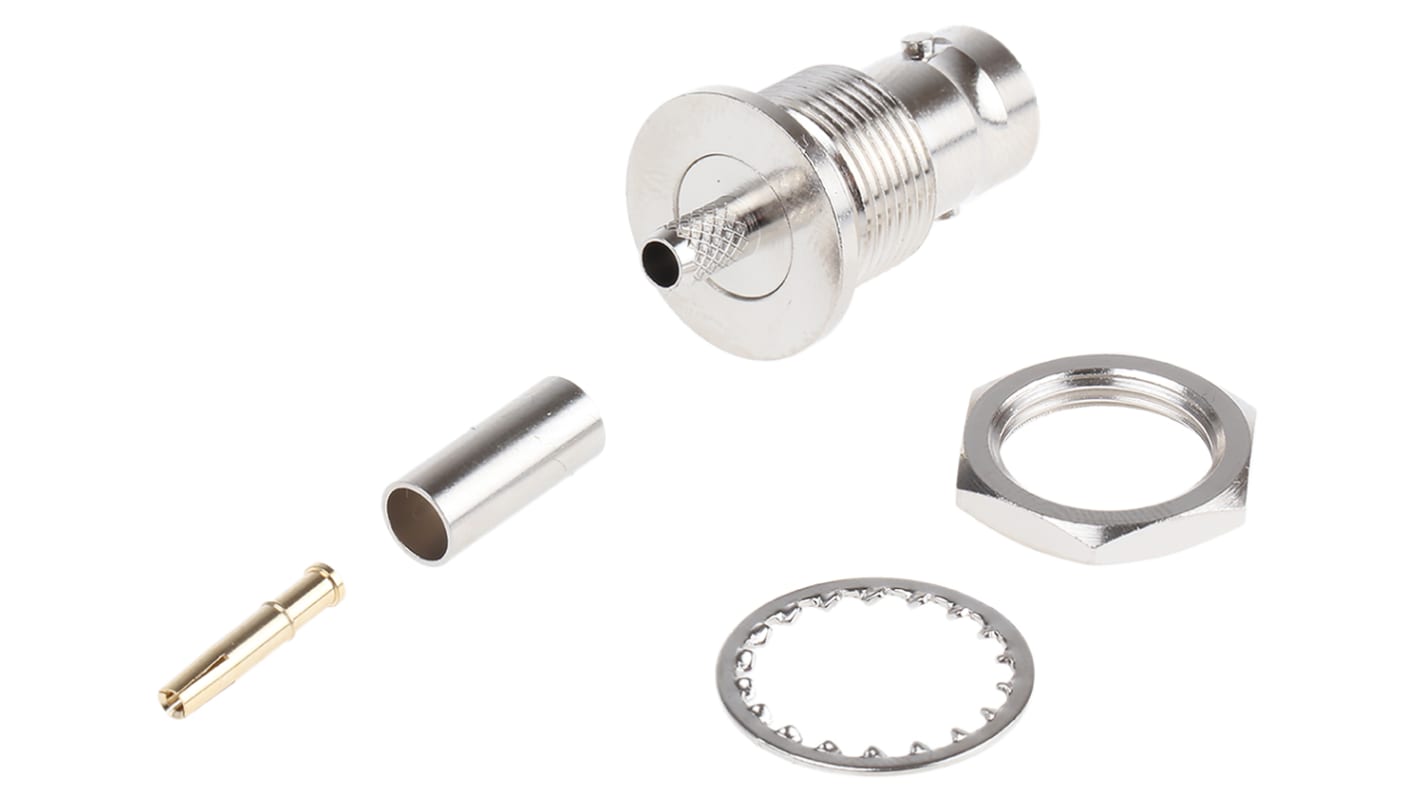

Straight Bulkhead Crimp Jack


RS 75 Ohm BNC RF Bulkhead BNC Connector Jack


From RS PRO, this straight BNC coaxial connector is designed for use with mini RG59 cables, and features a bulkhead and screw on nut for mounting to panels and chassis.

The connector has a robust nickel plated body, and features the secure and convenient bayonet coupling system typical of a BNC connector. The centre pin contact is gold plated, for excellent conductivity over a long service life, and there is also a PTFE insulator for increased reliability.

Features and Benefits

• BNC plug with bulkhead
• Nickel plated body provides a heavy-duty build quality
• Gold contacts ensure maximum efficiency
• Crimp termination method
• 75 Ω impedance
• Operating frequency of 4GhZ
• Insulation material: PTFE

Applications

BNC connectors are used in a variety of RF signal applications. Though they are most commonly used in radio and television broadcast applications, they can also be used in medical and test equipment.

• Antenna connection
• Cable Modems
• Telecom
• Medical Equipment
• Satcom
• CCTV

FAQs

Q: How should I connect a BNC connector to a coaxial cable?

A: This BNC connector is crimp terminating, and can be easily attached by compressing the crimp ferrule onto an appropriate cable. Crimp tooling is required to affectively achieve termination.

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.


Approvals

N/A

AttributeValue
Coaxial Connector TypeBNC Connector
GenderFemale
Mounting TypePanel Mount
Impedance75Ω
Termination MethodCrimp
Body OrientationStraight
Cable TypeMini RG59
BulkheadYes
Operating Frequency1GHz
Body PlatingNickel
PolarityNormal
Contact MaterialBrass
Contact PlatingGold
