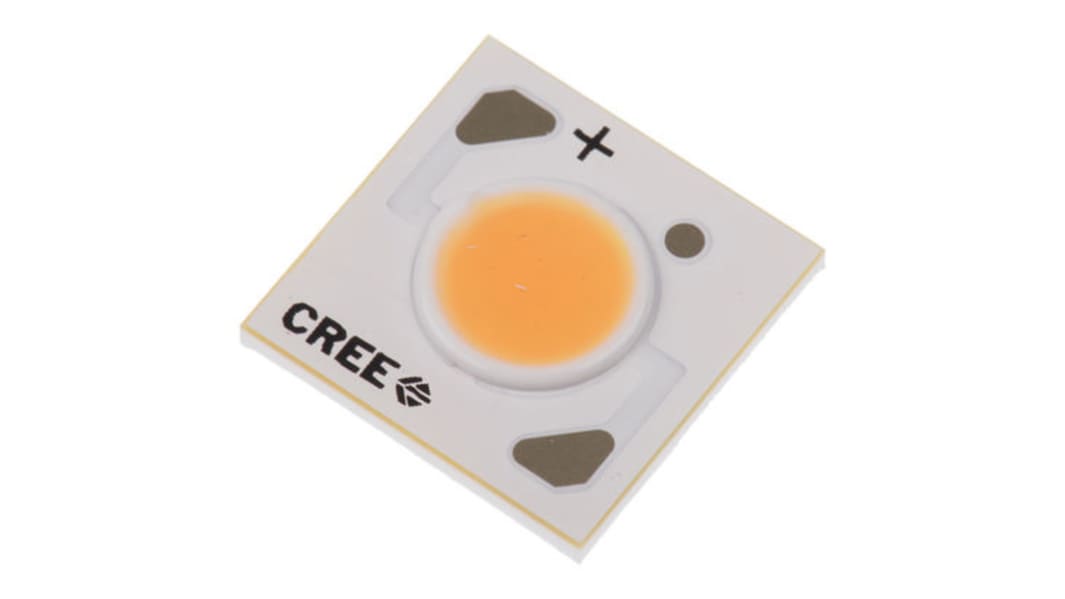

Cree LED CXA1304-0000-000N00B227F, CXA White CoB LED, 2700K 80CRI
- RS Stock No.:
- 145-7678
- Mfr. Part No.:
- CXA1304-0000-000N00B227F
- Brand:
- Cree LED
Available to back order for despatch 24.06.2024
Added
Price Each (In a Tray of 100)
Kr. 14,738
(exc. VAT)
Kr. 18,422
(inc. VAT)
| Units | Per unit | Per Tray* |
| 100 + | Kr. 14,738 | Kr. 1 473,80 |
| *price indicative | ||
- RS Stock No.:
- 145-7678
- Mfr. Part No.:
- CXA1304-0000-000N00B227F
- Brand:
- Cree LED
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Cree XLamp CXA1304 Series LED Arrays
The Cree XLamp CXA1304 LED array forms a part of Cree’s series of high-flux, multi-die arrays in a compact, easy to use platform. The CXA1304 LED integrated array delivers high lumen output and high efficacy within a single package which does not require reflow soldering. The device’s compact, uniform emitting surface allows for both directional and non-directional lighting applications. Small-form-factor lighting applications are ideal for the CXA1304 including lamp retrofit and luminaire designs.
85°C binning and characterisation
Wide viewing angle: 115°
Top-side solder connections
Thermocouple attach point
NEMA SSL-3 2011 standard flux bins
Wide viewing angle: 115°
Top-side solder connections
Thermocouple attach point
NEMA SSL-3 2011 standard flux bins
Specifications
Attribute | Value |
|---|---|
| Typical Luminous Flux | 423 lm |
| Optical Source Diameter | 6mm |
| Colour Temperature | 2700K |
| Radiant Flux | 10.9W |
| Series | CXA |
| Viewing Angle | 115 ° |
| Colour Rendering | 80 |
| LED Colours | White |
| Forward Voltage | 36 V |
| Forward Current | 250mA |
| Dimensions | 13.35 x 13.35 x 1.15mm |
