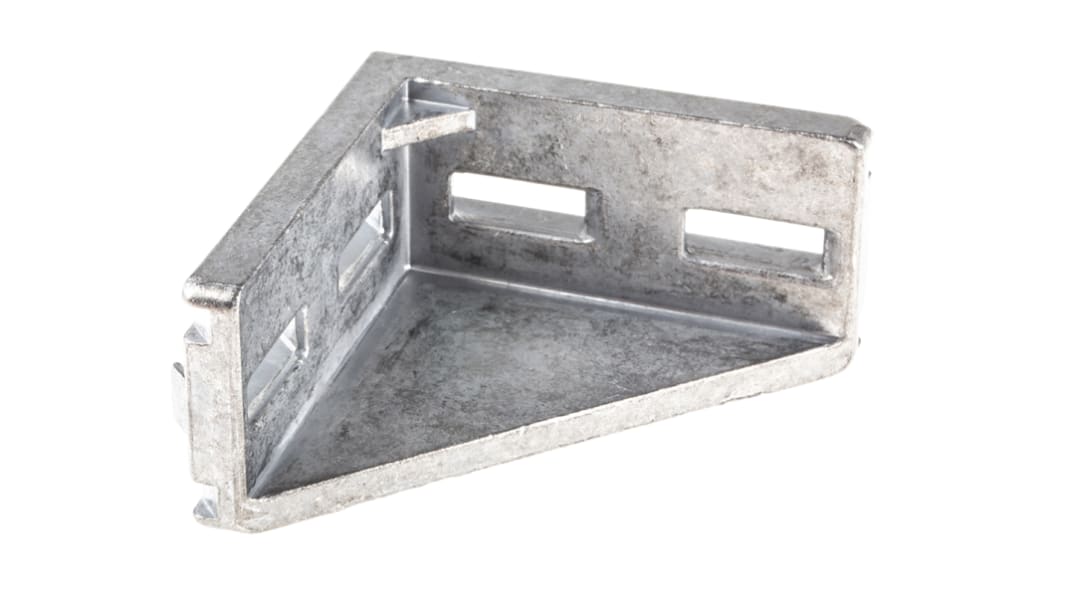

Bosch Rexroth M8 Angle Bracket Connecting Component, Strut Profile 45 mm, Groove Size 10mm

RS Stock No.:: 390-1811
Mfr. Part No.:: 3842523570
Brand:: Bosch Rexroth

714 In stock for same day dispatch

Added

Price Each

Kr. 208,23

(exc. VAT)

Kr. 260,29

(inc. VAT)

Units	Per unit
1 - 4	Kr. 208,23
5 - 9	Kr. 201,96
10 +	Kr. 195,25

RS Stock No.:: 390-1811
Mfr. Part No.:: 3842523570
Brand:: Bosch Rexroth

Technical Reference

Legislation and Compliance

RoHS Status: Not Applicable

COO (Country of Origin):: DE

Product Details

Bosch Rexroth Connecting Component, Angle Bracket Type, 6000N Maximum Force Rating - MGE Series - 3842523570

This connecting bracket from Bosch Rexroth creates strong bonds between your industrial structure's components. By withstanding torsional moments up to 60Nm, it stops your frames from twisting, which minimises the risk of shearing. As shown by its 6000N force rating, the unit supports demanding loads and boosts workplace safety. It mounts precisely on 10mm T-slots for wide compatibility with standard racks.

Features & Benefits

• Comes with two steel fastening screws for fast alignment during assembly
• Resilient die-cast aluminium body is corrosion-resistant for longevity in damp settings
• Compact profile size of 45mm adds minimal bulk to your setup

Applications

• Shelving reinforcement
• Signalling systems
• Logistics industry

Do I need to do any finishing work on this connecting component?

No, you can secure this unit without profile end finishing to minimise installation time.

Specifications

Attribute	Value
Connector Type	Angle Bracket
Fits Groove Size	10mm
Fits Strut Profile	45 mm
Thread Size	M8
Material	Die Cast Aluminium
Structural Element Type	Connector Bracket & Joint
Length	25mm
Product Family	Bosch Rexroth
Product System	MGE
