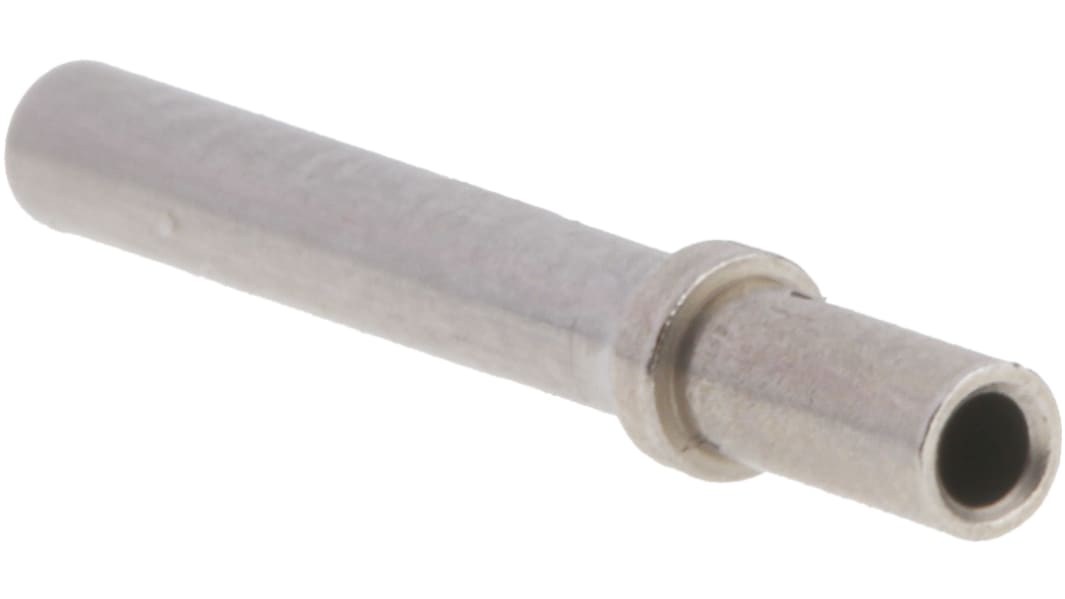

0462-201-20141 Deutsch 0462 Female Crimp Terminal Contact 20AWG

  • RS Stock No. 425-822
  • Mfr. Part No. 0462-201-20141
  • Brand Deutsch
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Crimp Contacts for DT and HD Series Sealed Connectors

From Deutsch, these high-quality circular crimp contacts are for use with DT and HD series sealed connectors. These connectors are environmentally sealed connectors that are designed for cable to cable applications within the automotive industry These solid contacts have a copper alloy body with nickel plating and a radial crimp type. The DT series crimp connectors are rugged quality but offer field-proven reliability.

Features & Benefits

Nickel plated copper crimp contact
Compatible with a wide range of Deutsch sealed connectors
Radial Crimp Type

V4 Contacts and Fillers

Specifications
Attribute Value
Gender Female
For Use With DT and HD Sealed Connector Housings
Series 0462
Minimum Wire Size mm² 0.2mm²
Maximum Wire Size mm² 0.5mm²
Termination Method Crimp
Minimum Wire Size AWG 24AWG
Contact Plating Nickel
Maximum Wire Size AWG 20AWG
Contact Material Copper Alloy
Maximum Contact Resistance 60mV
Minimum Operating Temperature -55°C
Maximum Operating Temperature +125°C
34360 In stock for delivery within 1 working days
Price Each (In a Bag of 10)
kr 7,894
(exc. VAT)
kr 9,868
(inc. VAT)
Units
Per unit
Per Bag*
10 - 140
kr 7,894
kr 78,94
150 - 490
kr 7,106
kr 71,06
500 - 990
kr 6,397
kr 63,97
1000 - 2490
kr 5,749
kr 57,49
2500 +
kr 5,189
kr 51,89
*price indicative
