Modulating Damper Actuator, 10Nm, 24 V ac/dc

  • RS Stock No. 504-1630
  • Mfr. Part No. HT 24-SR
  • Brand Belimo
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CH
Product Details

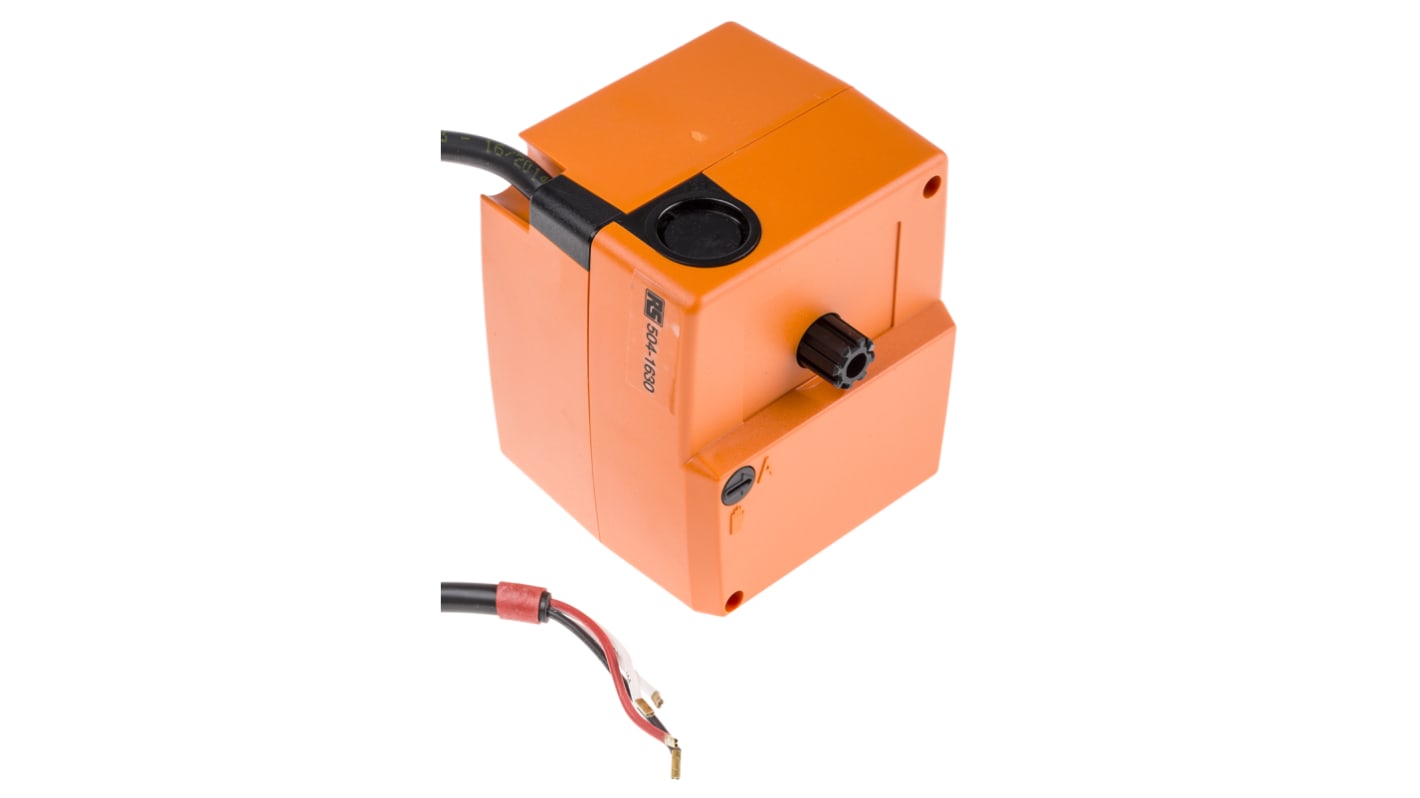

Belimo Modulating Damper Actuator

The Belimo valve motor actuator has a modulating control type. This is compatible with all the leading makes of HVAC controls, also available are linkage kits to Satchwell MB or ESBE valves. This actuator operates on stall torque technology, which does not require end switches. Modulating a rotary actuator in connection with a mounting kit is used for the motorisation of the most common mixing valves in HVAC systems. It requires 24VAC/VDC supply voltage.

Features and Benefits

Power consumption is 1.5W
Motor torque is 10Nm
Noise level is 35dB
Push button manual override
Direction of rotation changeover switch
Maintenance-free slipper valve actuator

Certifications

CE according to 89/336/EEC
EN 60730-1
CE certified

Specifications
Attribute Value
Return Type Spring Return
Power Consumption 1.5W
Control Type Modulating
Supply Voltage 24 V ac/dc
Motor Torque 10Nm
Noise Level 35dB(A)
18 In stock for delivery within 1 working days
Price Each
kr 1 945,79
(exc. VAT)
kr 2 432,24
(inc. VAT)
Units
Per unit
1 +
kr 1 945,79
