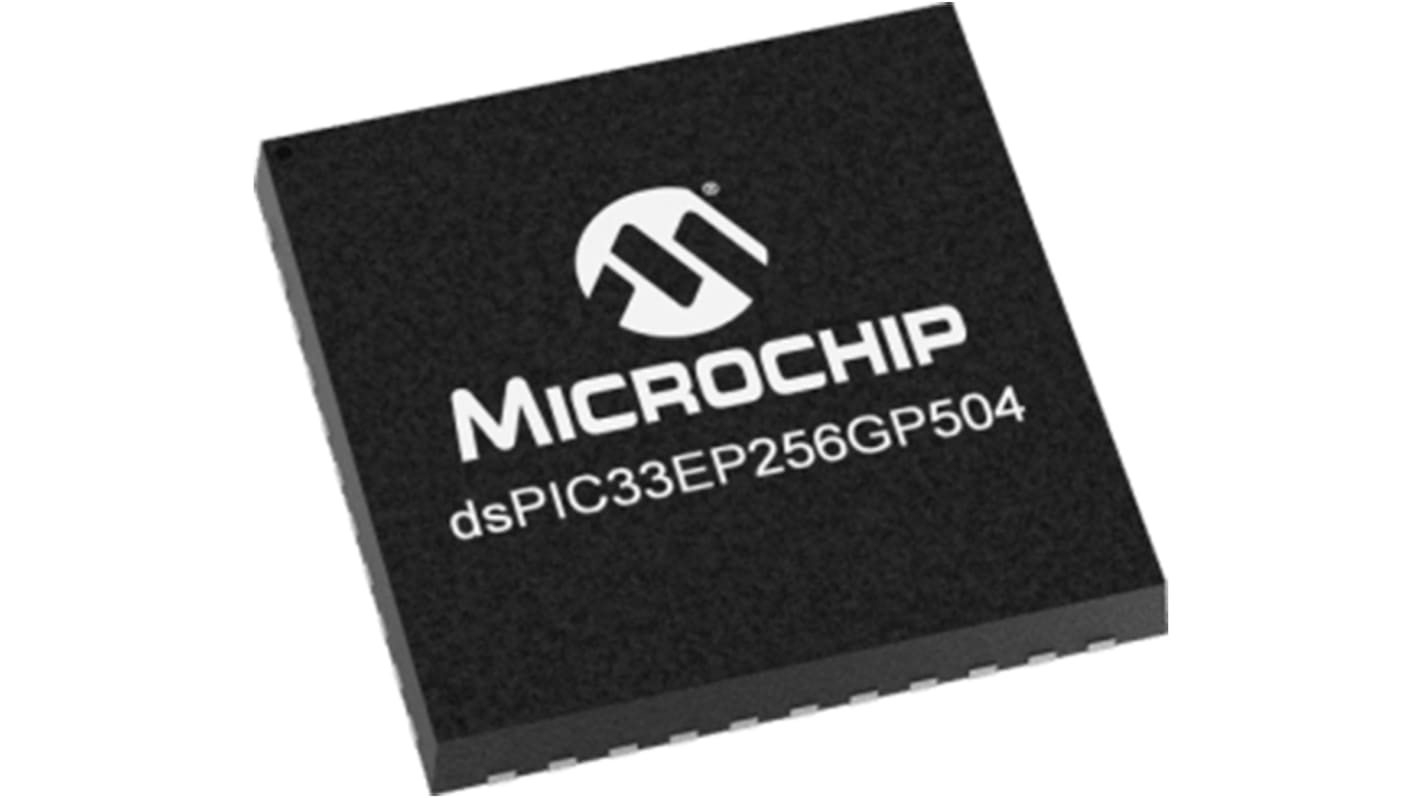

DSPIC33EP256GP504-I/ML Microchip DSPIC, 16bit Digital Signal Processor 60MHz 256 kB Flash 44-Pin QFN
- RS Stock No.:
- 177-1584
- Mfr. Part No.:
- DSPIC33EP256GP504-I/ML
- Brand:
- Microchip
450 In stock for same day dispatch
Added
Price Each (In a Tube of 45)
Kr. 47,466
(exc. VAT)
Kr. 59,332
(inc. VAT)
| Units | Per unit | Per Tube* |
| 45 - 90 | Kr. 47,466 | Kr. 2 135,97 |
| 135 + | Kr. 43,582 | Kr. 1 961,19 |
| *price indicative | ||
- RS Stock No.:
- 177-1584
- Mfr. Part No.:
- DSPIC33EP256GP504-I/ML
- Brand:
- Microchip
Technical Reference
Legislation and Compliance
Product Details
Microchip’s dsPIC33E family of digital signal controllers (DSCs) features a 70 MIPS dsPIC® DSC core with integrated DSP and enhanced on-chip peripherals. These DSCs enable the design of high-performance, precision motor control systems that are more energy efficient, quieter in operation, have a great range and extended life.
Operating Conditions:
3.0V to 3.6V, -40ºC to +85ºC, DC to 70 MIPS
3.0V to 3.6V, -40ºC to +125ºC, DC to 60 MIPS
dsPIC33E DSC Core:
Modified Harvard Architecture
C Compiler Optimized Instruction Set
16-bit Wide Data Path
24-bit Wide Instructions
16x16 Integer Multiply
3.0V to 3.6V, -40ºC to +85ºC, DC to 70 MIPS
3.0V to 3.6V, -40ºC to +125ºC, DC to 60 MIPS
dsPIC33E DSC Core:
Modified Harvard Architecture
C Compiler Optimized Instruction Set
16-bit Wide Data Path
24-bit Wide Instructions
16x16 Integer Multiply
Specifications
Attribute | Value |
|---|---|
| Maximum Frequency | 60MHz |
| Series | DSPIC |
| Device Million Instructions per Second | 70MIPS |
| Data Bus Width | 16bit |
| RAM Size | 32 kB |
| Instruction Set Architecture | C |
| Program Memory Size | 256 kB |
| Program Memory Type | Flash |
| Numeric and Arithmetic Format | ALU |
| Mounting Type | Surface Mount |
| Package Type | QFN |
| Pin Count | 44 |
| Typical Operating Supply Voltage | 3.3 V |
| Number of UART Channels | 2 |
| Pulse Width Modulation | 1 (6 Channel) |
| Number of SPI Channels | 2 |
| Dimensions | 8 x 8 x 0.95mm |
| ADC Channels | 9 |
| Number of ADC Units | 1 |
| Timers | 1 (2 x 32 bit), 1 (5 x 16 bit) |
| Width | 8mm |
| ADC Resolution | 12bit |
| PWM Channels | 6 |
| Minimum Operating Temperature | -40 °C |
| Height | 0.95mm |
| Maximum Operating Temperature | +85 °C |
| Number of PWM Units | 1 |
| Automotive Standard | AEC-Q100 |
| Number of I2C Channels | 2 |
| Timer Resolution | 16 bit, 32bit |
| ADCs | 1 (9 x 12 bit) |
| Length | 8mm |
| Number of Timers | 2 |
| Number of CAN Channels | 1 |
