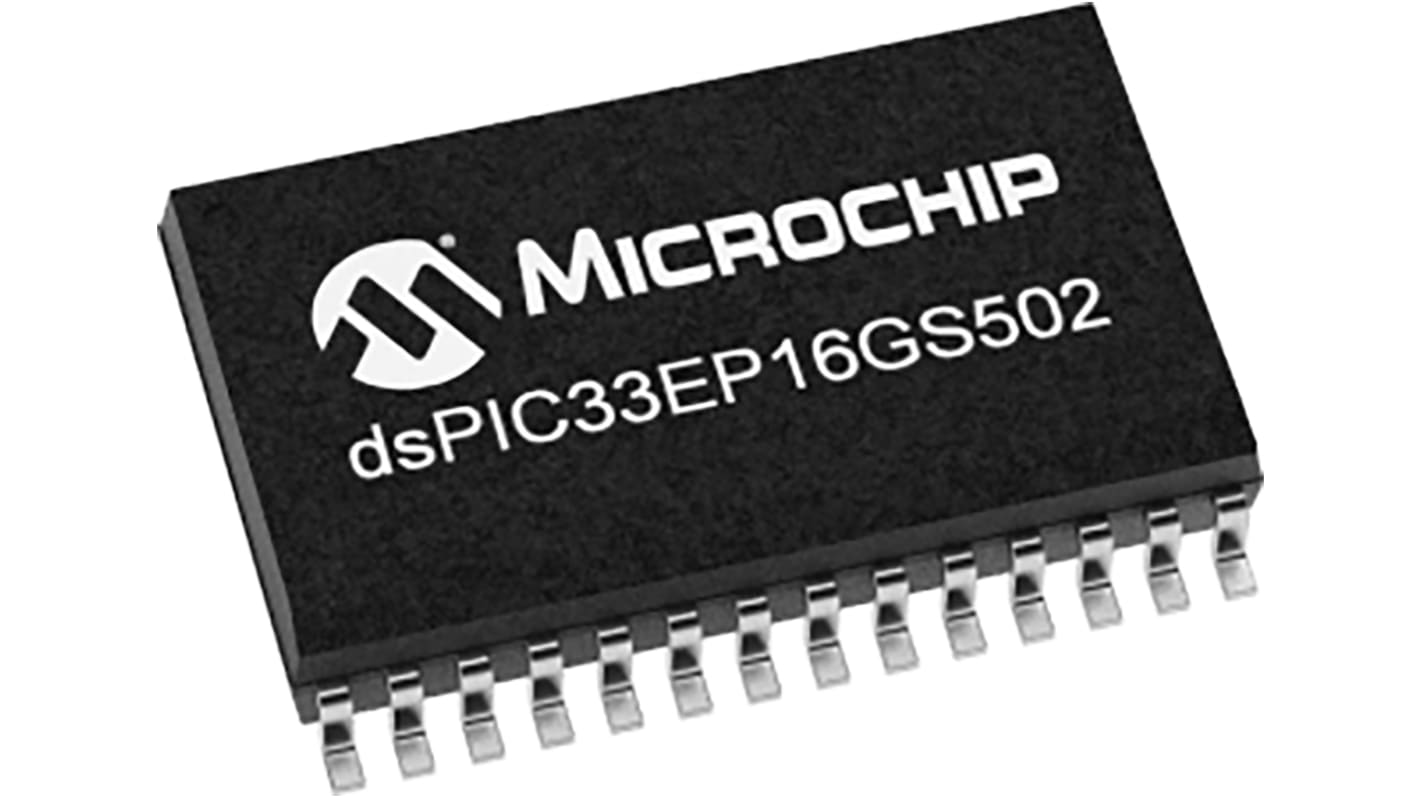

dsPIC33EP16GS502-I/SO Microchip DSPIC, 16bit Digital Signal Processor 60MHz 16 kB Flash 28-Pin SOIC
- RS Stock No.:
- 177-1805
- Mfr. Part No.:
- dsPIC33EP16GS502-I/SO
- Brand:
- Microchip
View all Digital Signal Processors
Available to back order for despatch 15.01.2024
Price Each (In a Pack of 5)
kr 37,378
(exc. VAT)
kr 46,722
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 + | kr 37,378 | kr 186,89 |
| *price indicative | ||
Packaging Options:
- RS Stock No.:
- 177-1805
- Mfr. Part No.:
- dsPIC33EP16GS502-I/SO
- Brand:
- Microchip
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TH
Product Details
dsPIC33EPXXGS50X is a SMPS & Digital Power Conversion Digital Signal Controller. These devices offer features supporting common, multi-loop digital switch-mode power supplies (SMPS) and other digital power-conversion applications
Operating Conditions:
3.0V to 3.6V, -40°C to +85°C, DC to 70 MIPS
3.0V to 3.6V, -40°C to +125°C, DC to 60 MIPS
Flash Architecture:
16K Flash Program Memory
Core: 16-Bit dsPIC33E CPU
Two 40-Bit Wide Accumulators
Code-Efficient (C and Assembly) Architecture
Single-Cycle (MAC/MPY) with Dual Data Fetch
Single-Cycle Mixed-Sign MUL Plus Hardware Divide
32-Bit Multiply Support
Two Additional Working Register Sets (reduces context switching)
3.0V to 3.6V, -40°C to +85°C, DC to 70 MIPS
3.0V to 3.6V, -40°C to +125°C, DC to 60 MIPS
Flash Architecture:
16K Flash Program Memory
Core: 16-Bit dsPIC33E CPU
Two 40-Bit Wide Accumulators
Code-Efficient (C and Assembly) Architecture
Single-Cycle (MAC/MPY) with Dual Data Fetch
Single-Cycle Mixed-Sign MUL Plus Hardware Divide
32-Bit Multiply Support
Two Additional Working Register Sets (reduces context switching)
Specifications
| Attribute | Value |
| Maximum Frequency | 60MHz |
| Series | DSPIC |
| Device Million Instructions per Second | 70MIPS |
| Data Bus Width | 16bit |
| RAM Size | 2 kB |
| Instruction Set Architecture | C |
| Program Memory Size | 16 kB |
| Program Memory Type | Flash |
| Numeric and Arithmetic Format | ALU |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Pin Count | 28 |
| Typical Operating Supply Voltage | 3.3 V |
| Number of UART Channels | 2 |
| ADCs | 1 (12 x 12 bit) |
| Timer Resolution | 16 bit, 32bit |
| Height | 2.35mm |
| PWM Channels | 6 |
| Width | 7.5mm |
| Timers | 1 (2 x 32 bit), 1 (5 x 16 bit) |
| Dimensions | 17.9 x 7.5 x 2.35mm |
| Pulse Width Modulation | 1 (5 Channel) |
| Number of SPI Channels | 2 |
| Number of Timers | 2 |
| Number of I2C Channels | 2 |
| ADC Resolution | 12bit |
| Minimum Operating Temperature | -40 °C |
| ADC Channels | 12 |
| Number of ADC Units | 1 |
| Maximum Operating Temperature | +85 °C |
| Number of PWM Units | 1 |
| Automotive Standard | AEC-Q100 |
| Length | 17.9mm |
