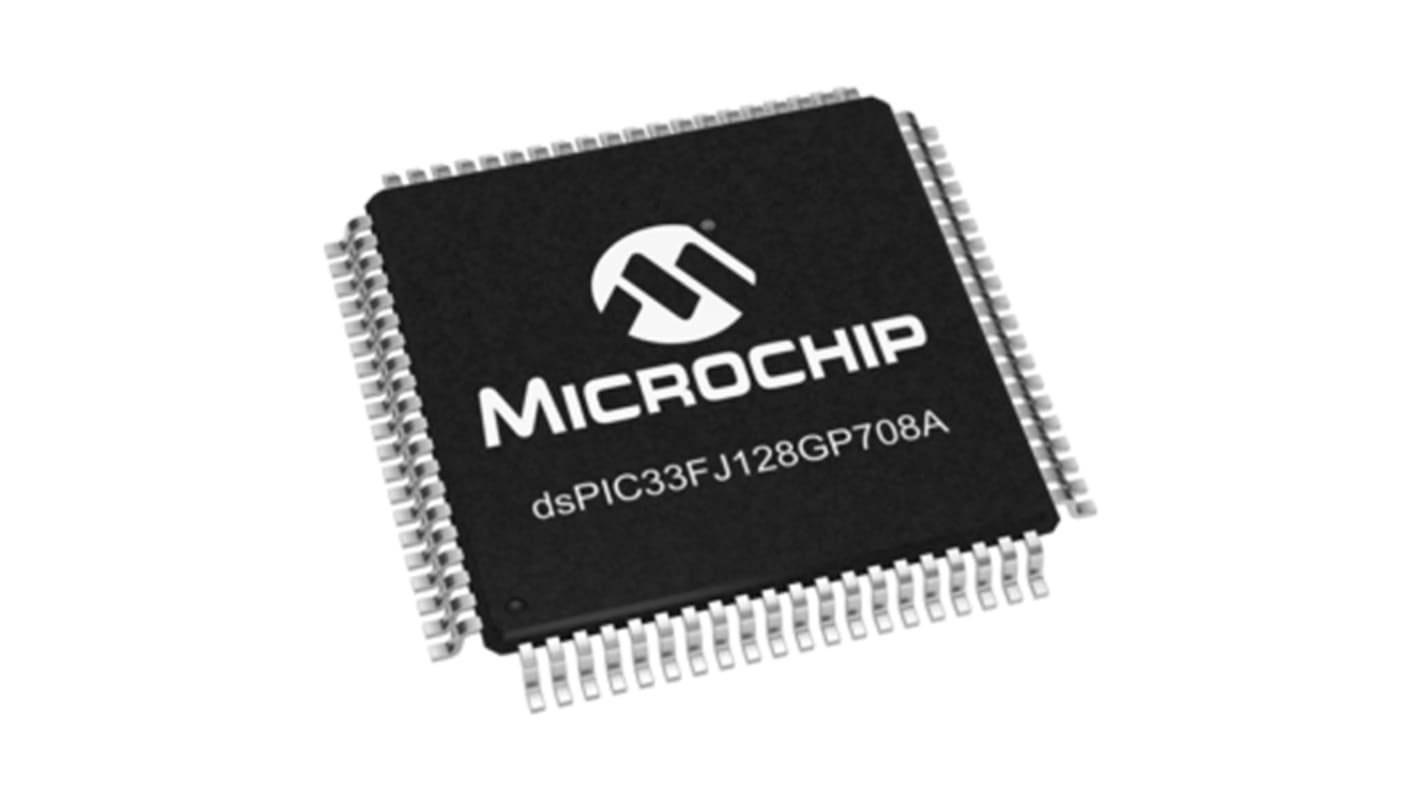

dsPIC33FJ128GP708A-I/PT Microchip, 16bit Digital Signal Processor 40MIPS 128 kB Flash 80-Pin TQFP
- RS Stock No.:
- 666-9642
- Mfr. Part No.:
- dsPIC33FJ128GP708A-I/PT
- Brand:
- Microchip
357 In stock for same day dispatch
Added
Price Each
Kr. 70,09
(exc. VAT)
Kr. 87,61
(inc. VAT)
| Units | Per unit |
| 1 + | Kr. 70,09 |
- RS Stock No.:
- 666-9642
- Mfr. Part No.:
- dsPIC33FJ128GP708A-I/PT
- Brand:
- Microchip
Technical Reference
Legislation and Compliance
Product Details
dsPIC33F Digital Signal Controllers
The dsPIC33F Digital Signal Controllers offer the performance of a DSP with the simplicity of an MCU. The 40MIPS dsPIC33F core is designed to execute digital filter algorithms, high-speed precision digital control loops and digital audio and speech processing.
dsPIC33F DSCs with Motor Control peripherals enable the design of high-performance, precision motor control systems. The dsPIC33F SMPS DSCs provide on-chip peripherals specifically designed for high-performance, digital power supplies. SMPS peripherals include high speed and high resolution PWM, fast ADC and analogue comparators.
dsPIC33F DSCs with Motor Control peripherals enable the design of high-performance, precision motor control systems. The dsPIC33F SMPS DSCs provide on-chip peripherals specifically designed for high-performance, digital power supplies. SMPS peripherals include high speed and high resolution PWM, fast ADC and analogue comparators.
Specifications
Attribute | Value |
|---|---|
| Maximum Frequency | 40MIPS |
| Data Bus Width | 16bit |
| RAM Size | 16 kB |
| Instruction Set Architecture | RISC |
| Program Memory Size | 128 kB |
| Program Memory Type | Flash |
| Mounting Type | Surface Mount |
| Package Type | TQFP |
| Pin Count | 80 |
| Typical Operating Supply Voltage | 3 to 3.6 V |
| Number of UART Channels | 2 |
| Number of USART Channels | 0 |
| Minimum Operating Temperature | -40 °C |
| PWM Resolution | 16bit |
| Number of LIN Channels | 0 |
| Height | 1.05mm |
| Timer Resolution | 16bit |
| Pulse Width Modulation | 8 x16 bit |
| Width | 12mm |
| PWM Channels | 8 |
| ADCs | 48 x 10/12 bit |
| Length | 12mm |
| Number of PWM Units | 1 |
| Timers | 9 x 16 bit |
| Number of ADC Units | 1 |
| Maximum Operating Temperature | +85 °C |
| ADC Channels | 48 |
| Number of CAN Channels | 2 |
| ADC Resolution | 10 bit, 12bit |
| Number of PCI Channels | 0 |
| Number of I2C Channels | 2 |
| Number of Timers | 9 |
| Number of Ethernet Channels | 0 |
| USB Channels | 0 |
| Number of SPI Channels | 2 |
| Dimensions | 12 x 12 x 1.05mm |
