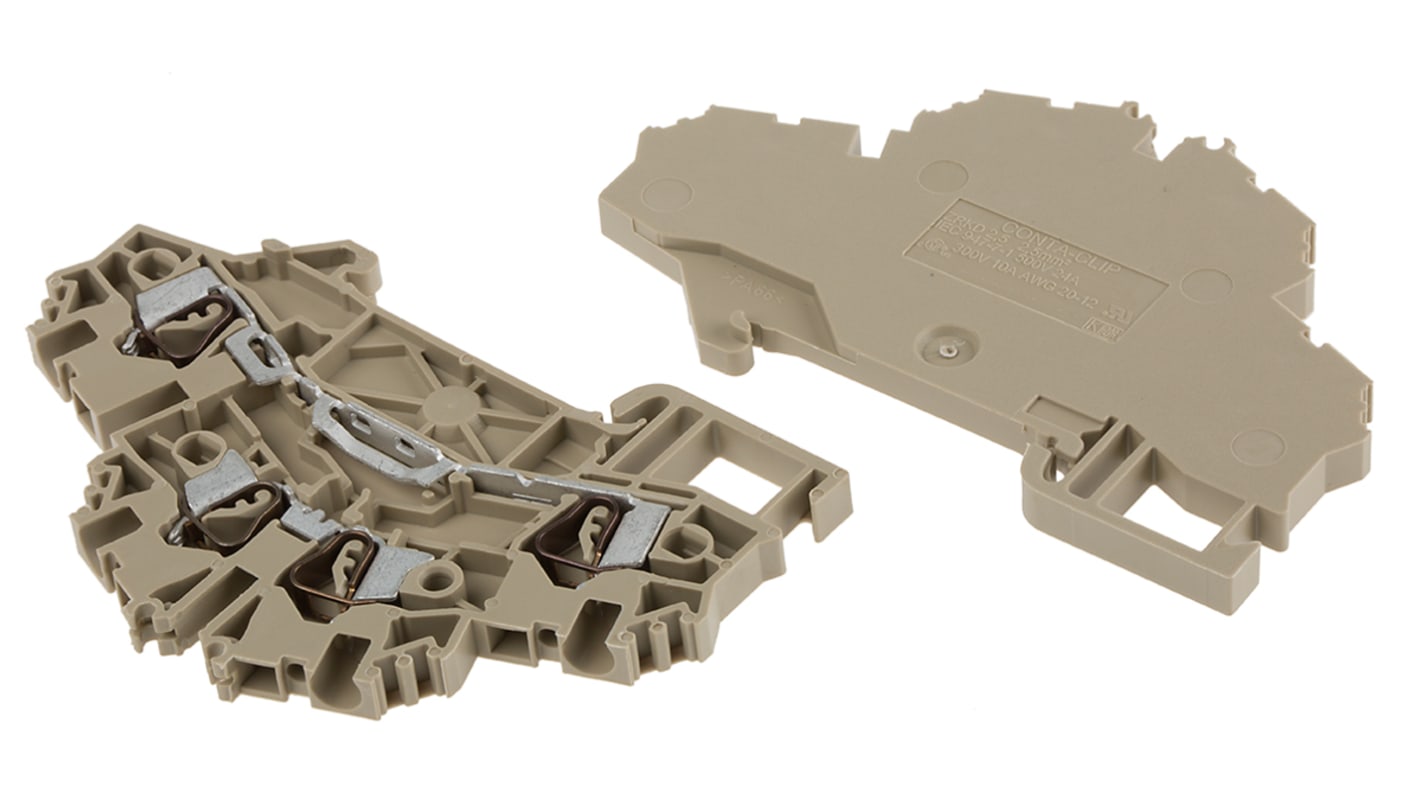

RS PRO Grey Double Level Terminal Block, 2.5mm², Double-Level, Spring Clamp Termination
- RS Stock No.:
- 763-7438
- Brand:
- RS PRO
Available to back order for despatch 13.05.2024
Added
Price Each (In a Pack of 10)
Kr. 27,544
(exc. VAT)
Kr. 34,43
(inc. VAT)
| Units | Per unit | Per Pack* |
| 10 + | Kr. 27,544 | Kr. 275,44 |
| *price indicative | ||
- RS Stock No.:
- 763-7438
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
Product Details
Spring Terminals
A range of spring feed through DIN Rail terminals with a proven tension spring connection system for the smallest cross sections ranging from 0.2mm² up to 16mm². This system provides safe and quick connections for solid and stranded wires, with or without wire-end ferrules. The earth terminals feature a PE foot contact that is snapped on, ensuring mechanical and electrical safety on both sides of the terminal without screws.
Specifications
Attribute | Value |
|---|---|
| Colour | Grey |
| Number of Levels | Double |
| Series | ZRKD |
| American Wire Gauge | 20 → 12AWG |
| Termination Method | Spring Clamp |
| Cable CSA | 2.5mm² |
| Current Rating | 24A |
| Voltage Rating | 500 V |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +120°C |
