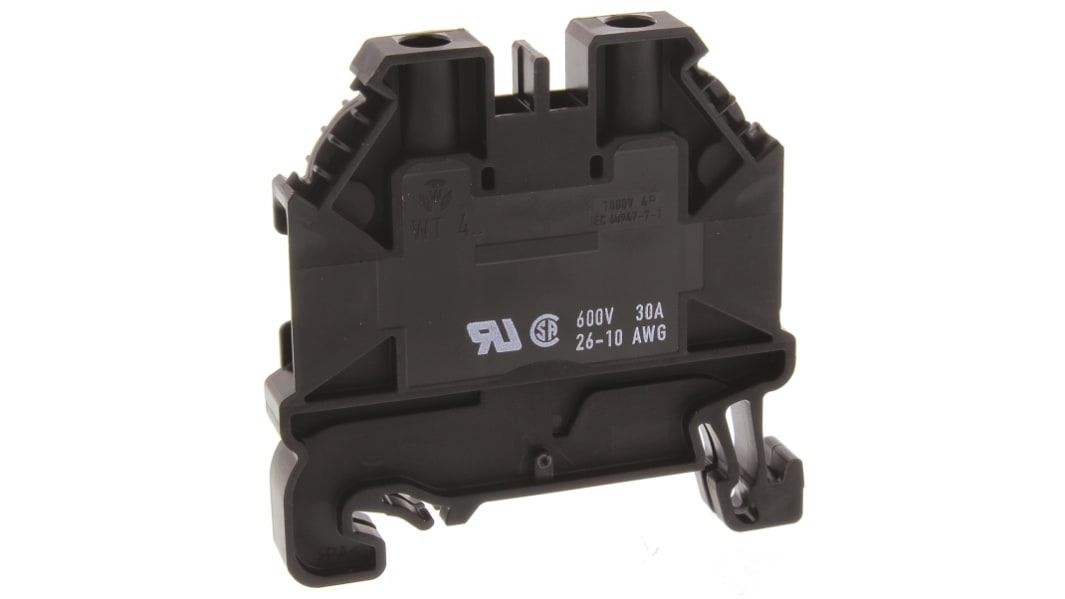

Wieland WT 4 Series Black Feed Through Terminal Block, Single-Level, Screw Termination, ATEX
- RS Stock No.:
- 811-3775
- Mfr. Part No.:
- 58.504.0055.1 - WT 4 SW
- Brand:
- Wieland
60 In stock for same day dispatch
Added
Price Each (In a Pack of 10)
Kr. 11,781
(exc. VAT)
Kr. 14,726
(inc. VAT)
| Units | Per unit | Per Pack* |
| 10 + | Kr. 11,781 | Kr. 117,81 |
| *price indicative | ||
- RS Stock No.:
- 811-3775
- Mfr. Part No.:
- 58.504.0055.1 - WT 4 SW
- Brand:
- Wieland
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Feed-Through DIN Rail Terminal Blocks 4mm², Screw Connection, TS35 Mounting, Type WT 4
Feed-through block with screw connection for mounting on TS35 DIN Rail
Nominal cross-section 4mm²
Maximum electrical current 41A / 6mm²
Connection capacity: 2 wires, equal size, 0.14 - 2.5mm²
Nominal cross-section 4mm²
Maximum electrical current 41A / 6mm²
Connection capacity: 2 wires, equal size, 0.14 - 2.5mm²
Selos
Specifications
Attribute | Value |
|---|---|
| Colour | Black |
| Number of Levels | Single |
| Series | WT 4 |
| American Wire Gauge | 26 → 10AWG |
| Termination Method | Screw |
| Voltage Rating | 1 kV |
| Current Rating | 32A |
| Pitch | 6mm |
| Maximum Operating Temperature | +120°C |
| Hazardous Area Certification | ATEX |
| Standards Met | CSA, GL, VDE |
