RS PRO 1, 3 Phase LCD Energy Meter, Type Energy Meter

RS Stock No.:: 264-1014
Brand:: RS PRO

RS PRO 1, 3 Phase LCD Energy Meter, Type Energy Meter

Bulk discount available

Subtotal (1 unit)*

Kr.1 506 84

(exc. VAT)

Kr.1 883 55

(inc. VAT)

FREE delivery for online orders over 500,00 kr

In Stock

29 unit(s) ready to ship
Plus 14 unit(s) ready to ship from another location
Plus 30 unit(s) shipping from 02. september 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 9	Kr. 1 506,84
10 +	Kr. 1 412,50

*price indicative

RS Stock No.:: 264-1014
Brand:: RS PRO

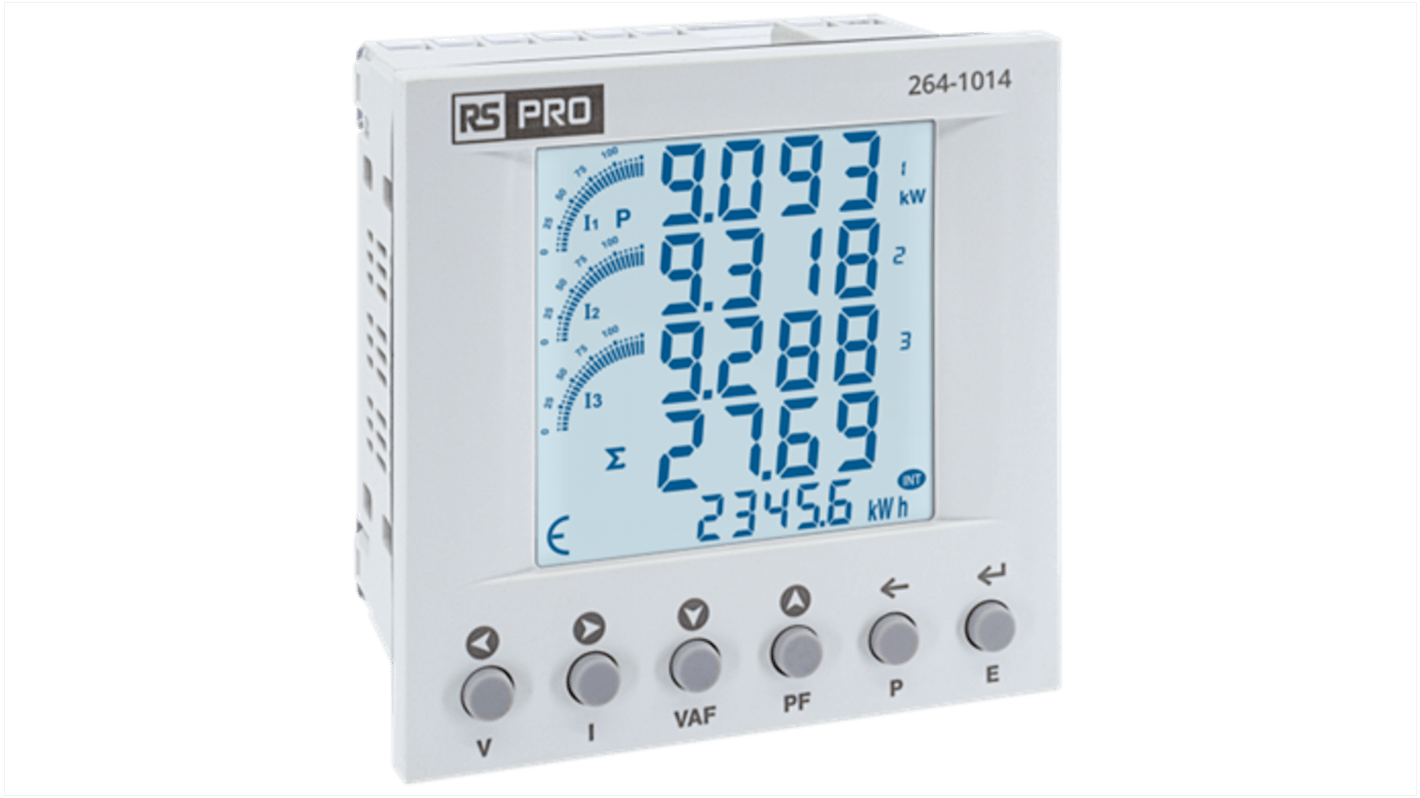

RS PRO Single or 3-Phase Backlit Multi-Function Power Energy Meter, Pulse Output and Modus, DIN96 Panel Mounted

From RS PRO this is the panel mounted multi-function power / energy meter providing you with a wealth of benefits to accurately measure and monitor energy usage. With a white backlit LDC digital display complete with an 8-digit resolution providing clear readings in all light conditions plus quick select push buttons on the front of the energy meter fast access to a display page. The RS Pro digital multi-function energy meter is not only suitable for monitoring precise energy consumption but also for various other electrical readings plus is complete with true RMS measurement, pulse output, RS485 Modbus communication all housed within a compact DIN 96 casing.

Features & Benefits

Single phase L1, L2, L3 CT, 3-Phase 3 Wire, 3-Phase 4-wire connection

11 to 300 V Input voltage range

1.2 A, 6 A (Nominal 1.2) maximum current

RS485 communication

Modbus Protocol

1 x Pulse output

True RMS measurement

High definition white backlit LCD display

Manual or auto scroll screen modes

Panel mounting with maximum 6 mm panel thickness

Polycarbonate UL94 V-0 housing, weighs 320 g

Compact size, 50 mm panel depth

Screw clamp current input, voltage input, communication terminals

Easy operation and programming

Display Parameters

Voltage, L-L, L-N and average

Current – Phase, total and maximum demand

Power factor per phase and average

Current and voltage total harmonic distortion

Neutral current, calculated

Frequency

Hours run, hours and minutes

Power, active, reactive, and apparent

Power minimum/maximum demand – active, reactive, and apparent

Energy Active – active, reactive, and apparent

Applications

Monitoring energy consumption

Residential

Industrial and commercial utility applications

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Cutout Width	91.5mm
	Cutout Height	31.5mm
	Display Type	LCD
	Number of Phases	1, 3
	Number of Inputs	3 x (Current Transformers) 3 x (Voltage) and Neutral
	Communication Port Type	Modbus RS485
	Pulse Output	Yes
	Number of Outputs	1 (Pulse)
	Depth	50mm
	Digit Height	6.35 mm
	Meter Accuracy	±0.5 (Current) %, ±0.5 (Voltage) %, ±Class 1 (Active Energy)
	Minimum Temperature	-10°C
	Maximum Temperature	+55°C
	Meter Type	Energy Meter
	Minimum Measurement	19 (Phase) V ac, 11 (Phase and Neutral) V ac, 45 Hz, 10mA
	Approvals	IEC/EN62053-21, IEC/EN62053-23, IEC/EN61326-1, IEC/EN55011 Class A, IEC/EN61000-4-2, IEC/EN61000-4-3, IEC/EN61000-4-4, IEC/EN61000-4-5, IEC/EN61000-4-6, IEC/EN61000-4-8, IEC/EN61000-4-11, IEC/EN61010, IEC/EN62053-31
	Maximum Measurement	519 (Phase) V ac, 300 (Phase and Neutral) V ac, 6A, 65Hz
	Measurement Range	19→519 (Phase) V ac, 45→65Hz, 10 mA→5A, 11→300 (Phase and Neutral)V ac

	Select all
	Brand RS PRO
	Cutout Width 91.5mm
	Cutout Height 31.5mm
	Display Type LCD
	Number of Phases 1, 3
	Number of Inputs 3 x (Current Transformers) 3 x (Voltage) and Neutral
	Communication Port Type Modbus RS485
	Pulse Output Yes
	Number of Outputs 1 (Pulse)
	Depth 50mm
	Digit Height 6.35 mm
	Meter Accuracy ±0.5 (Current) %, ±0.5 (Voltage) %, ±Class 1 (Active Energy)
	Minimum Temperature -10°C
	Maximum Temperature +55°C
	Meter Type Energy Meter
	Minimum Measurement 19 (Phase) V ac, 11 (Phase and Neutral) V ac, 45 Hz, 10mA
	Approvals IEC/EN62053-21, IEC/EN62053-23, IEC/EN61326-1, IEC/EN55011 Class A, IEC/EN61000-4-2, IEC/EN61000-4-3, IEC/EN61000-4-4, IEC/EN61000-4-5, IEC/EN61000-4-6, IEC/EN61000-4-8, IEC/EN61000-4-11, IEC/EN61010, IEC/EN62053-31
	Maximum Measurement 519 (Phase) V ac, 300 (Phase and Neutral) V ac, 6A, 65Hz
	Measurement Range 19→519 (Phase) V ac, 45→65Hz, 10 mA→5A, 11→300 (Phase and Neutral)V ac
