Bulgin Buccaneer Series Male RJ45 Connector, Cable Mount, Cat5e
- RS Stock No.:
- 468-6226
- Mfr. Part No.:
- PX0834/B
- Brand:
- Bulgin
390 In stock for same day dispatch
Added
Price Each
Kr. 404,36
(exc. VAT)
Kr. 505,45
(inc. VAT)
| Units | Per unit |
| 1 - 14 | Kr. 404,36 |
| 15 - 49 | Kr. 385,76 |
| 50 - 99 | Kr. 350,18 |
| 100 - 249 | Kr. 313,38 |
| 250 + | Kr. 283,05 |
- RS Stock No.:
- 468-6226
- Mfr. Part No.:
- PX0834/B
- Brand:
- Bulgin
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TN
Product Details

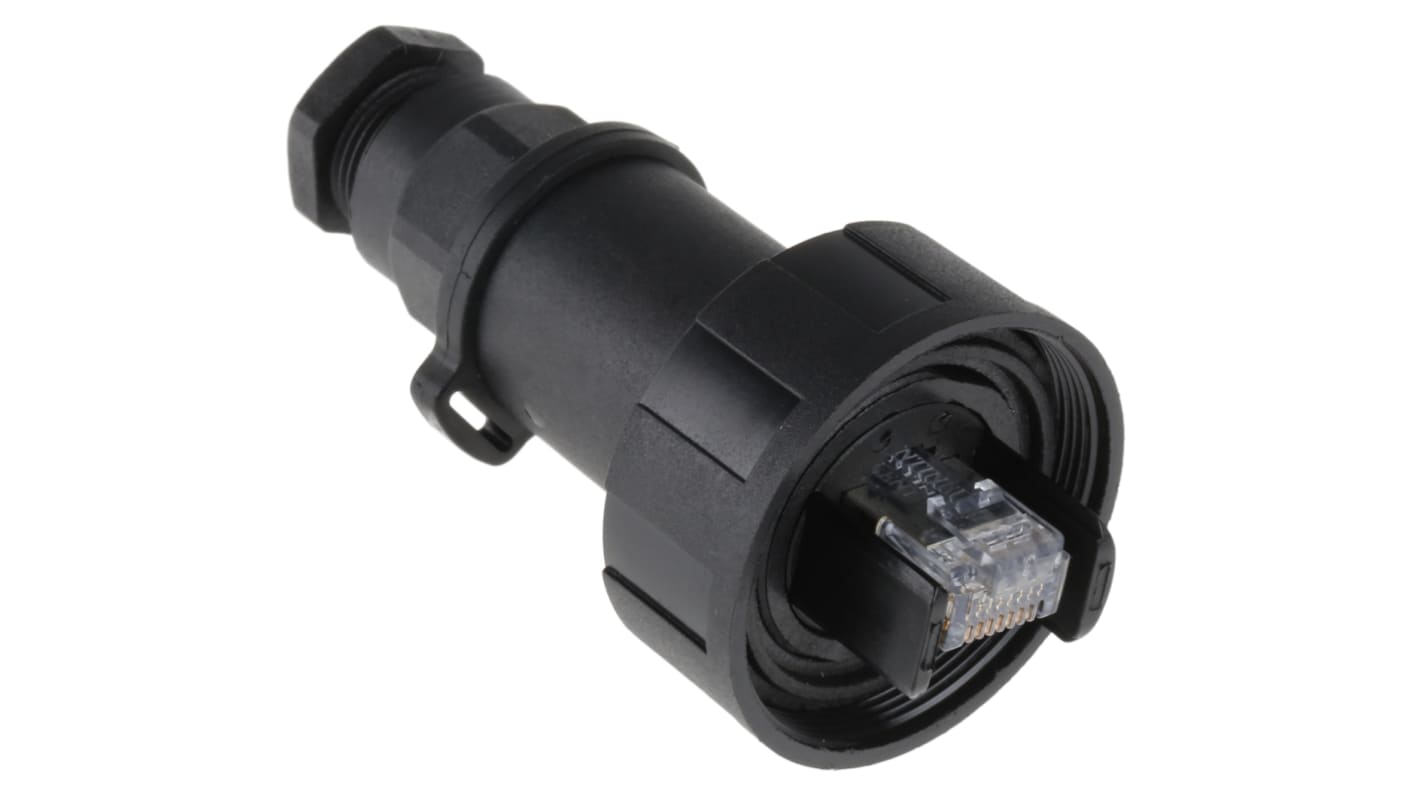

PX0834/B Re-Wireable Cable Connector
The Bulgin PX0834/B re-wireable RJ45 plug connector that provides high performance Cat5e Ethernet connections in harsh environments. This cable mount connector has a voltage rating of 32VAC/42VDC and current rating of up to 1.5A. This connector is made from polyester with a quick-connect mating system that ensures a secure quick connect and disconnect capabilities for use in challenging conditions.
Features and Benefits
- Crimp termination
- Dust and waterproof
- Easy assembly
- Operation temperature ranges between -40°C and 70°C
- Overall diameter is 38.1mm
- Overall length is 77.5mm
- Shielded connectors maintain required screening
- Straight body orientation
- Supplied cable glands
- Accommodates cable diameters 3.5 to 8mm
- Shielded connectors maintain required screening
Note
Supplied with
shielded RJ45 plug
Bulgin Buccaneer Range
The Ethernet Buccaneer provides a high degree of environmental sealing for standard Cat5e RJ45 connections. It is an ideal solution to connectivity in harsh and difficult industrial areas.
Specifications
Attribute | Value |
|---|---|
| Gender | Male |
| Ethernet Connector Type | RJ45 Connector |
| LAN Category | Cat5e |
| Number of Ports | 1 |
| Mounting Type | Cable Mount |
| Number of Ways | 8 |
| Shield Type | Shielded |
| Orientation | Straight |
| IP Rating | IP68 |
| Length | 77.5mm |
| Series | Buccaneer |
| Series Number | PX0834/B |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold |
