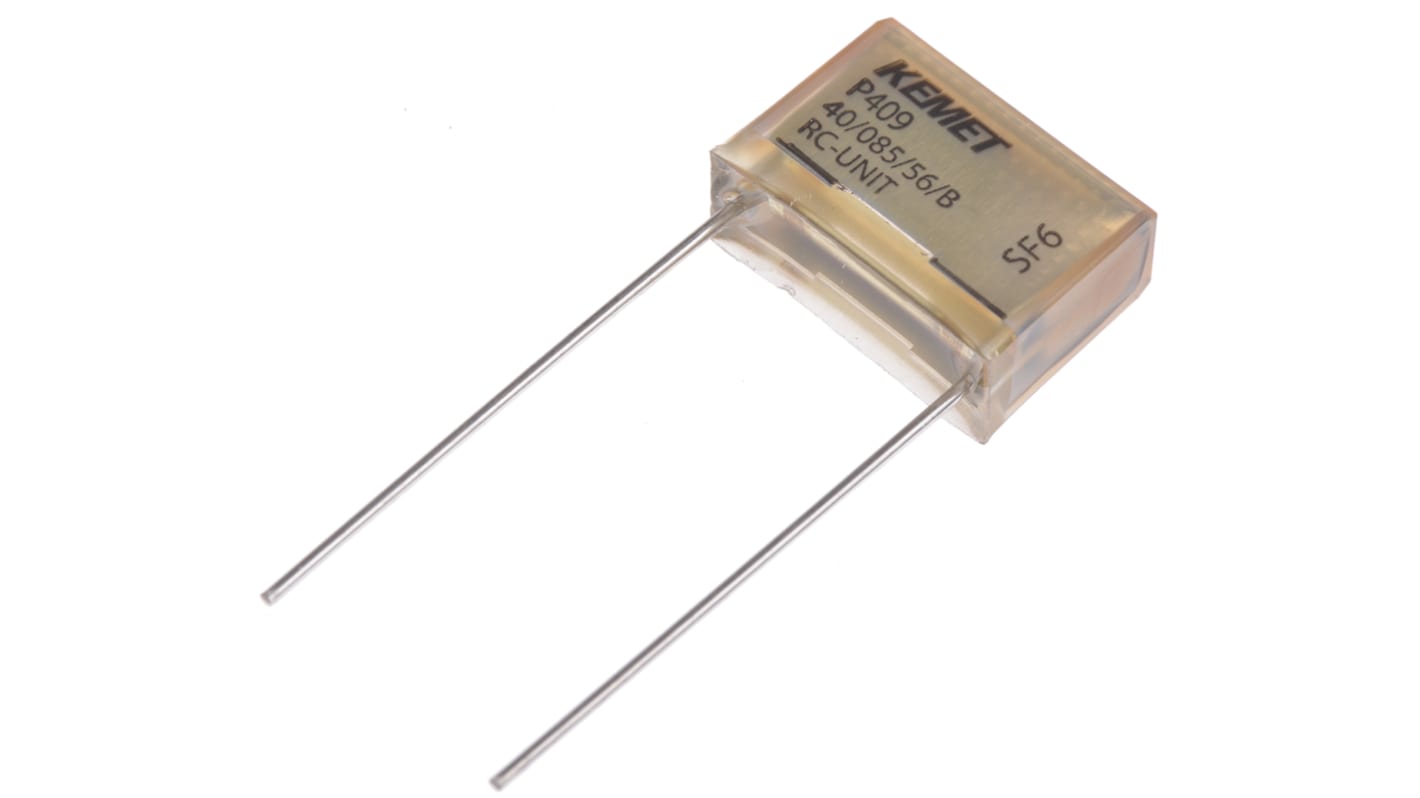

KEMET P409 Paper Capacitor X2 275V ac 275 V dc, Through Hole
- RS Stock No.:
- 173-4953
- Mfr. Part No.:
- P409QM473M275AH101
- Brand:
- KEMET
Bulk discount available
View bulk pricing optionsSubtotal (1 bag of 400 units)*
Kr. 4 887,20
(exc. VAT)
Kr. 6 108,80
(inc. VAT)
FREE delivery for online orders over 750,00 kr
Temporarily out of stock
- Shipping from 25 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 400 - 1600 | Kr. 12,218 | Kr. 4 887,20 |
| 2000 + | Kr. 11,974 | Kr. 4 789,60 |
*price indicative
- RS Stock No.:
- 173-4953
- Mfr. Part No.:
- P409QM473M275AH101
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Capacitance | 47nF | |
| Product Type | Paper Capacitor | |
| Mount Type | Through Hole | |
| Rated AC Voltage | 275V ac | |
| Series | P409 | |
| Rated DC Voltage | 275V dc | |
| Automotive Standard | No | |
| Lead Pitch | 15.2mm | |
| Suppression Class | X2 | |
| Pin Count | 2 | |
| Maximum Operating Temperature | 85°C | |
| Length | 18.5mm | |
| Depth | 7.3mm | |
| Standards/Approvals | CAN/CSA-E60384-14-09, RoHS, EN/IEC 60384-14, UL 60384-14 | |
| Height | 13mm | |
| Lead Diameter | 0.8mm | |
| Select all | ||
|---|---|---|
Brand KEMET | ||
Capacitance 47nF | ||
Product Type Paper Capacitor | ||
Mount Type Through Hole | ||
Rated AC Voltage 275V ac | ||
Series P409 | ||
Rated DC Voltage 275V dc | ||
Automotive Standard No | ||
Lead Pitch 15.2mm | ||
Suppression Class X2 | ||
Pin Count 2 | ||
Maximum Operating Temperature 85°C | ||
Length 18.5mm | ||
Depth 7.3mm | ||
Standards/Approvals CAN/CSA-E60384-14-09, RoHS, EN/IEC 60384-14, UL 60384-14 | ||
Height 13mm | ||
Lead Diameter 0.8mm | ||
- COO (Country of Origin):
- FI
P409 X2 Series Metallised Paper
The P409 Series is constructed of multilayer metallized paper encapsulated and impregnated in self-extinguishing material meeting the requirements of UL 94 V–0.
Impregnated paper ensures excellent stability and reliability properties, particularly in applications with continuous operation.
Applications include worldwide use in contact protection, contact interference suppression and transient suppression.
Features and Benefits:
Rated voltage: 275 V ac 50/60 Hz
Capacitance range: 0.047 – 0.47μF
Resistance range: 22 – 470 Ω
Resistance tolerance: ±30%
RoHS Compliant and lead-free terminations
Operating temperature range of -40˚C to +85˚C
Excellent self-healing properties which ensure long life even when subjected to frequent over voltages
Good resistance to ionisation due to impregnated paper dielectric
High dV/dt capability
Approvals
ENEC, UL and cUL
