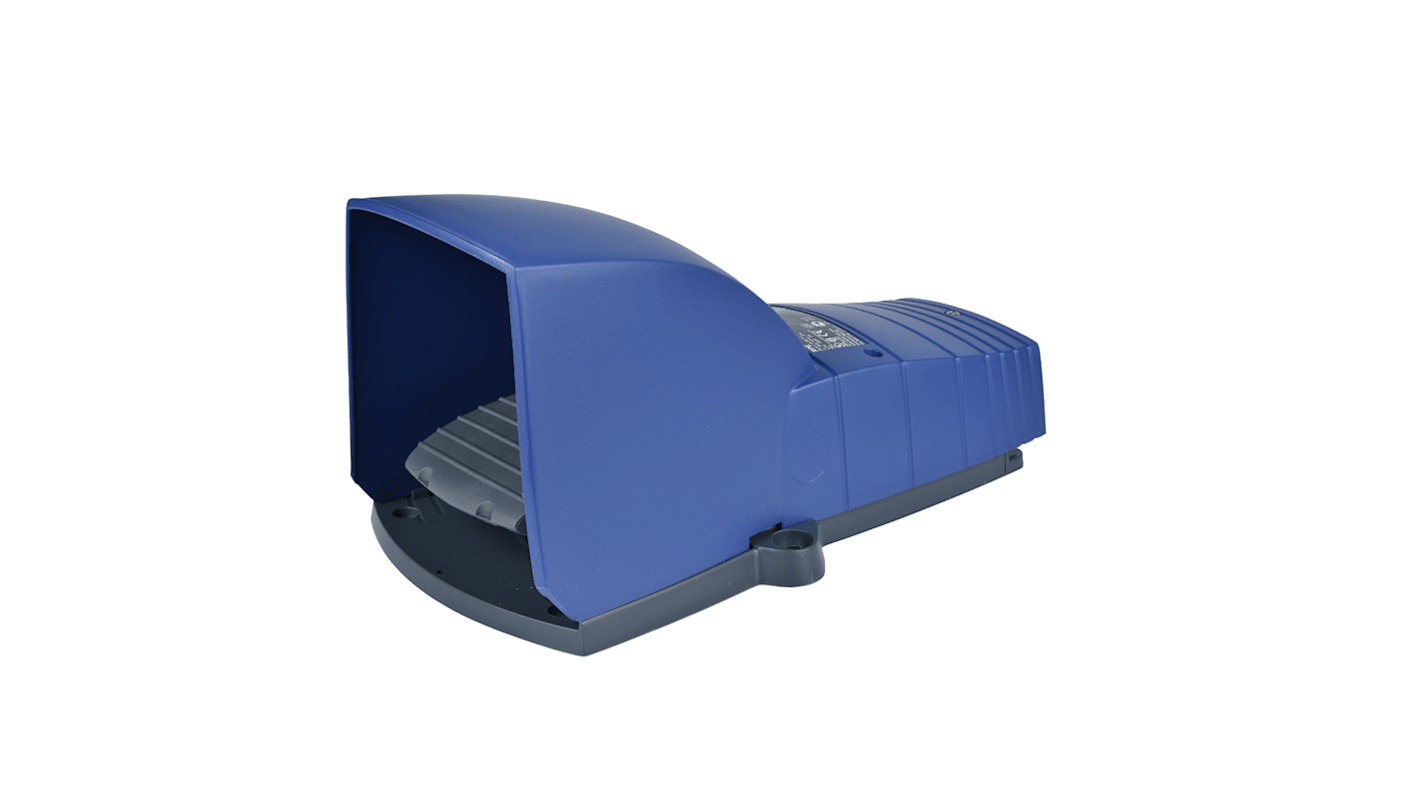

Schneider Electric Industrial Duty Momentary On-Off Foot Switch - Plastic Case Material, 1NO/1NC, 270 mA @ 250 V dc, 3
- RS Stock No.:
- 537-5321
- Mfr. Part No.:
- XPEB510
- Brand:
- Schneider Electric
3 In stock for same day dispatch
1 available from Europe for delivery within 2 working day(s).
Added
Price Each
Kr. 1 116,50
(exc. VAT)
Kr. 1 395,62
(inc. VAT)
| Units | Per unit |
| 1 + | Kr. 1 116,50 |
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 537-5321
- Mfr. Part No.:
- XPEB510
- Brand:
- Schneider Electric
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- FR
Product Details
Schneider Electric Footswitches - XPE Range
A wide range of plastic housed footswitches brought to you from Schneider Electric, ensuring you start on the right foot (or left)! They are available with or without a protective guard cover. The guarded cover types of foot switches are strongly recommended in high-risk areas where accidental starting of a machine, either by human action or falling objects could occur.
Features & Benefits
- Large surface area of pedal assures stability of foot and provides operator comfort
- High and wide protective cover accommodates large sizes and safety boots
- Can be fixed to the floor or on a support for improved stability
- Approvals - U/CSA
- Schneider Electrics XPE range of industrial footswitches are robust
- A great feature of this range of foot switches is that they allow the operator greater freedom of movement
- Available with or without trigger mechanism in 1 or 2 step configurations
- The trigger mechanism types of footswitch enable locking of the pedal in rest position, positive action is required before the pedal can be depressed
- Footswitches within the XPE range that feature 2-step contact operation are ideal for applications involving 2-speed machines
- The first step (6mm travel) operates one set of NC + NO contacts before the second step operates the other NC + NO contacts during full actuator travel (12mm)
Specifications
Attribute | Value |
|---|---|
| Series | Harmony XPEA |
| Contact Configuration | 1NO/1NC |
| Switch Operation | Momentary On-Off |
| Case Material | Plastic |
| Contact Voltage Rating AC | 240V |
| Contact Voltage Rating DC | 250V |
| Contact Current Rating | 270 mA @ 250 V dc, 3 A @ 240 V ac |
| Switch Environment | Industrial Duty |
| IP Rating | IP66 |
| Guard Cover | Yes |
| Better World Product | Yes |
| Better World Verification | Green Premium |
| Length | 282mm |
| Width | 141mm |
