IMI Norgren B72G FR Assembly 40μm G 1/4, 10 bar

  • RS Stock No. 239-0686
  • Mfr. Part No. B72G-2GK-ST3-RMN
  • Brand IMI Norgren
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): GB
Product Details
//media.rs-online.com/t_line/LD239068-01.gif
//media.rs-online.com/t_line/LE239068-01.gif
//media.rs-online.com/t_line/LF239068-10.gif
//media.rs-online.com/t_line/LI239068-10.gif

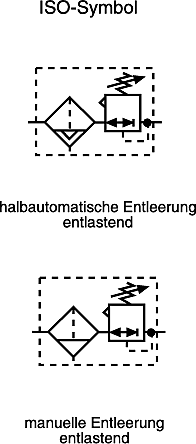

IMI Norgren Pneumatic Filter/regulator

The IMI Norgren 40μm pneumatic filter regulator has a G 1/4in port connection and a maximum operating pressure of 10bar. The regulator has a die-cast zinc housing, an ABS seal and a polyethylene filter insert. It is installed vertical with a single pressure supply and without a pressure gauge.
Note:
Typical flow data is accurate with 10bar inlet pressure, 6.3 bar set pressure and a 1bar drop. Maximum inlet pressure is 10bar.

Features and Benefits

Balanced valve design minimizes the effect of variation in the inlet pressure on the outlet pressure
Excelon design allows in-line or modular installation
Full flow gauge ports
Helps protect air-operated equipment from overpressure by retarding excessive pressure build-up
High-efficiency oil and particle removal
Highly visible, prismatic liquid level indicator lens on metal bowls
Modular installations with Excelon 72, 73 and 74 series can be made to suit particular applications
Optional electrical service indicator also available
Optional service indicator turns from green to red when the filter element needs to be replaced
Push to lock adjusting knob with tamper-resistant accessory
Quick-release bayonet bowl
Standard relieving models allow reduction of downstream pressure when the system is dead-ended
Standard visual service life indicator turns from green to red when the filter element needs to be replaced

Specifications
Attribute Value
Manufacturer Series B72G
Port Connection G 1/4
Drain Type Semi Automatic
Filtration Size 40µm
Pressure Gauge Port Rc 1/8
Pressure Gauge Port Thread Size 1/8 in
Port Connection Thread Size 1/4 in
Maximum Operating Pressure 10 bar
Maximum Ambient Operating Temperature +50°C
Minimum Operating Pressure 0.3bar
Bowl Material Polycarbonate
Ambient Operating Temperature Range -34 → +50°C
Minimum Ambient Operating Temperature -34°C
Port Connection Thread Standard G
Pressure Gauge Port Thread Standard Rc
