Theben / Timeguard 13A, Fused Connection Unit

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

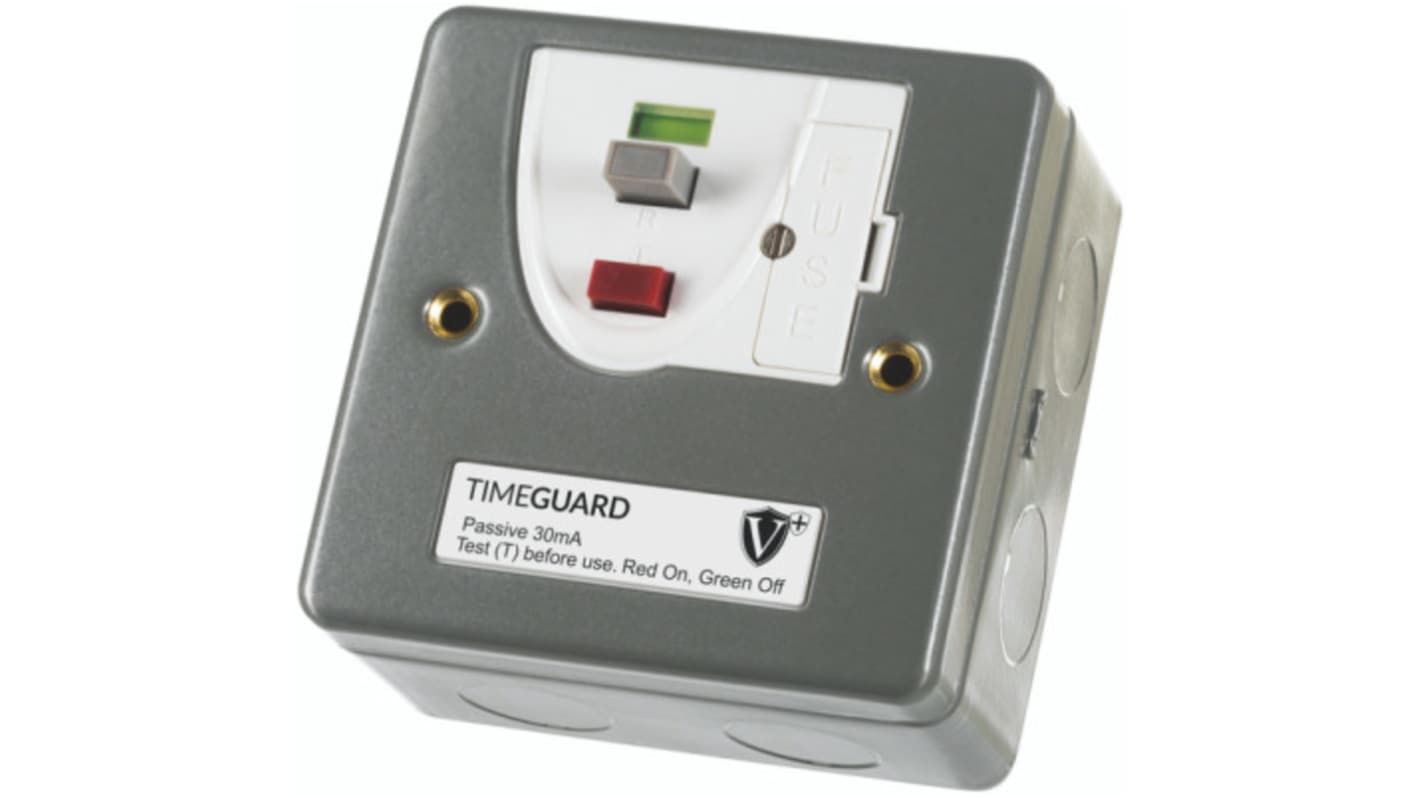

The RCD16ML RCD Fused Connection Unit gives additional protection against electric shocks and fire risk. The unit will remain latched if the power supply is tripped.

Provides additional protection against the dangers of electrocution
Eliminates the need for plug-in residual current circuit breakers
Protects appliances from possible fire hazard
Extra fast action – trips out within 40 milliseconds (BS7288)
Latching for continuous operation after supply interruption
Disconnects both Live and Neutral connections leaving Earth connection intact

Specifications
Attribute Value
Current Rating 13A
Trip Speed 40ms
Trip Current 30mA
Minimum Box Depth 40mm
Mounting Style Surface Mount
RCD Type Latching
Fuse Type BS 7288
Number of Poles 2
Length 85mm
Depth 85mm
Width 30mm
Fixing Standard BS
Colour Metal
Colour Family Metal
Earth Terminal Yes
Material Metal
Dimensions L x W x D 85 x 49 x 85mm
Voltage Rating 230V
5 In stock for delivery within 1 working days
Price Each
kr 674,47
(exc. VAT)
kr 843,09
(inc. VAT)
