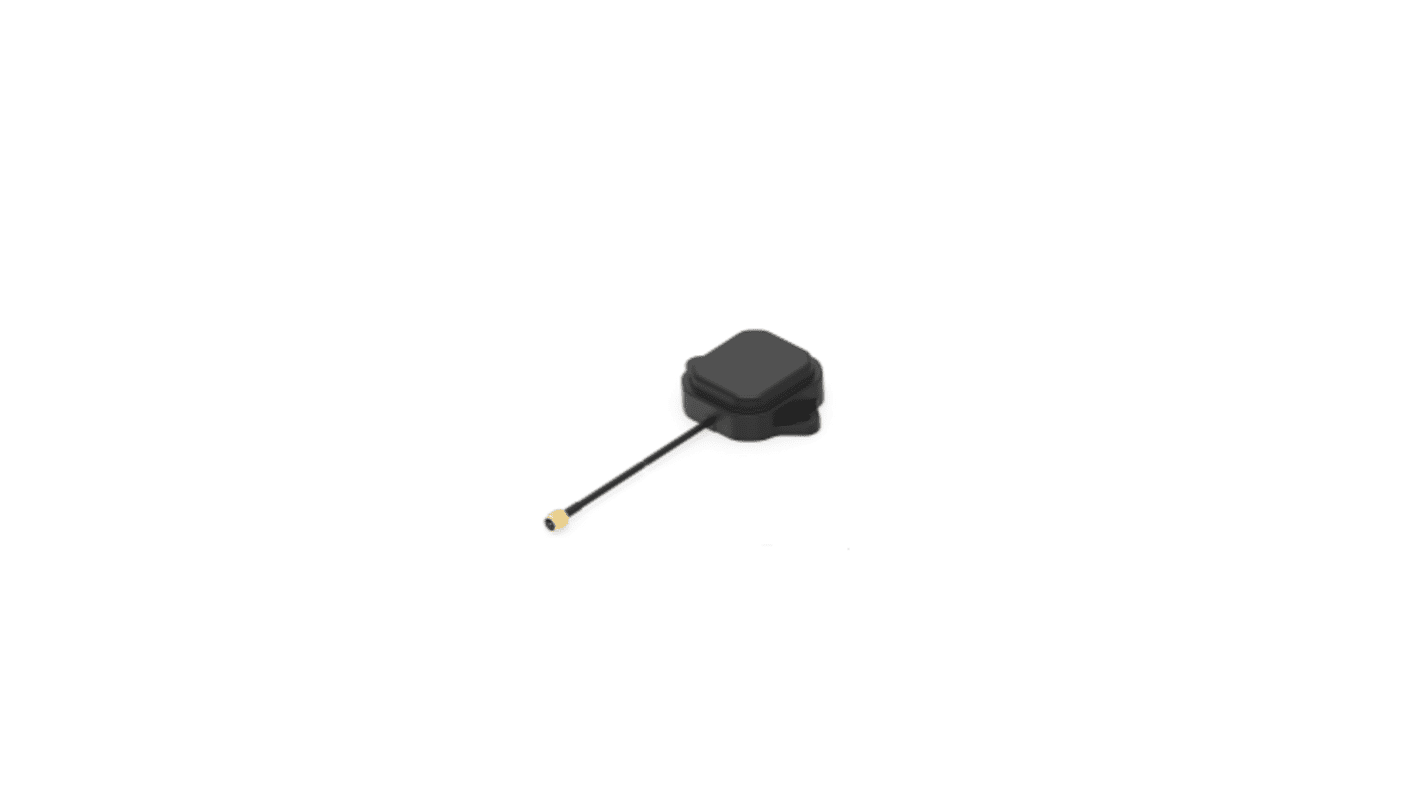

TE Connectivity 2108912-1 Patch Omnidirectional GPS Antenna, GPS
- RS Stock No.:
- 235-1419
- Mfr. Part No.:
- 2108912-1
- Brand:
- TE Connectivity
Available to back order for despatch 01.11.2024
Added
Price Each (In a Tray of 560)
Kr. 174,888
(exc. VAT)
Kr. 218,61
(inc. VAT)
| Units | Per unit | Per Tray* |
| 560 + | Kr. 174,888 | Kr. 97 937,28 |
| *price indicative | ||
- RS Stock No.:
- 235-1419
- Mfr. Part No.:
- 2108912-1
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- KR
Product Details
The TE Connectivity Active Patch Antenna is RHCP polarization antenna which uses L1 band for GNSS protocol. It has dimension of 12.0 mm x 12.0 mm x 5.2 mm. The following data is based on Dia.150mm ground size
L1 band for GNSS
Active Patch Antenna
Data is based on 12 x 12mm ground size
Different cable lengths and connector options available
No matching circuits required
Impedance 50 Ω
Active Patch Antenna
Data is based on 12 x 12mm ground size
Different cable lengths and connector options available
No matching circuits required
Impedance 50 Ω
Specifications
Attribute | Value |
|---|---|
| Internal/External | Internal |
| Antenna Physical Form | Patch |
| Lead Length | 55mm |
| Antenna Mounting Type | Adhesive |
| Includes Lead | Yes |
| Connector Gender | Female |
| Antenna Directivity | Omnidirectional |
| RF Protocols | GPS |
| Gain | 11.1dBi |
| Series | GNSS |
