- RS Stock No.:
- 307-184
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Hose Connector | |
| Hose Inside Diameter | 25.4mm | |
| Sub Type | Connector | |
| Connection Standard A | BSPT | |
| Connection Gender A | Male | |
| Connection Size A | 1 in | |
| Body Material | Stainless Steel | |
| Connection Gender B | Male | |
| Maximum Operating Pressure | 17 bar | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Hose Connector | ||
Hose Inside Diameter 25.4mm | ||
Sub Type Connector | ||
Connection Standard A BSPT | ||
Connection Gender A Male | ||
Connection Size A 1 in | ||
Body Material Stainless Steel | ||
Connection Gender B Male | ||
Maximum Operating Pressure 17 bar | ||
Standards/Approvals No | ||
RoHS Status: Exempted
- COO (Country of Origin):
- CN

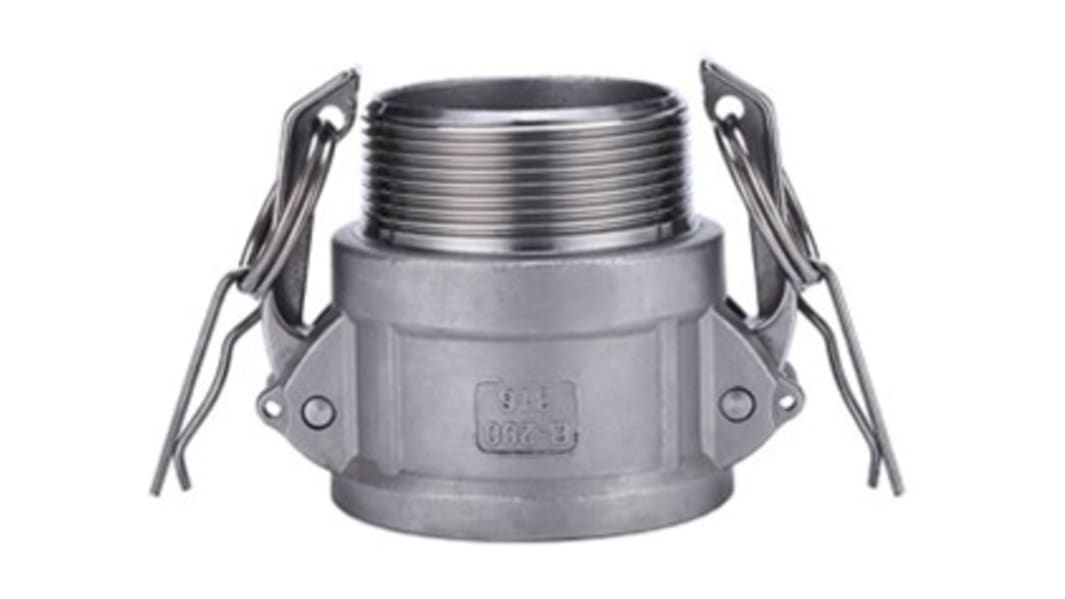

RS PRO Straight Male Hose Coupling, 1 in Part B Cam and Groove Coupler, 1 in BSPT Male, Stainless Steel
Use this cam and groove coupler from RS PRO to quickly and easily connect hoses. It provides a leak-free joint that's long-lasting and reliable. It has a working pressure of up to 17 bar, so it's a highly versatile part that's suitable for use with most fluid-carrying pipes. The robust coupling is frequently chosen for its uncomplicated attachment method, as it doesn't require any tools to use. All you need to do is pull down on the side levers and insert the hose for a secure connection.
The coupling is made of strong stainless steel, so it's durable and also corrosion-resistant to stop it from rusting quickly. This means you can use it both indoors and outdoors, without having to worry about it degrading easily. A coupling like this is well-suited for joining together heavy-duty pipes that carry water or diesel in industrial settings, such as a boatyard. It's compatible with hoses that have a 1-inch inner diameter.
Features and Benefits
• Stainless steel body material
• Straight coupling connector direction
• Part B cam and groove coupling connector
• Male coupling
• Hose inner diameter of 1 in
• Male BSPT (British Standard Pipe Thread) thread size of 1 in
• Maximum working pressure of 17 bar
