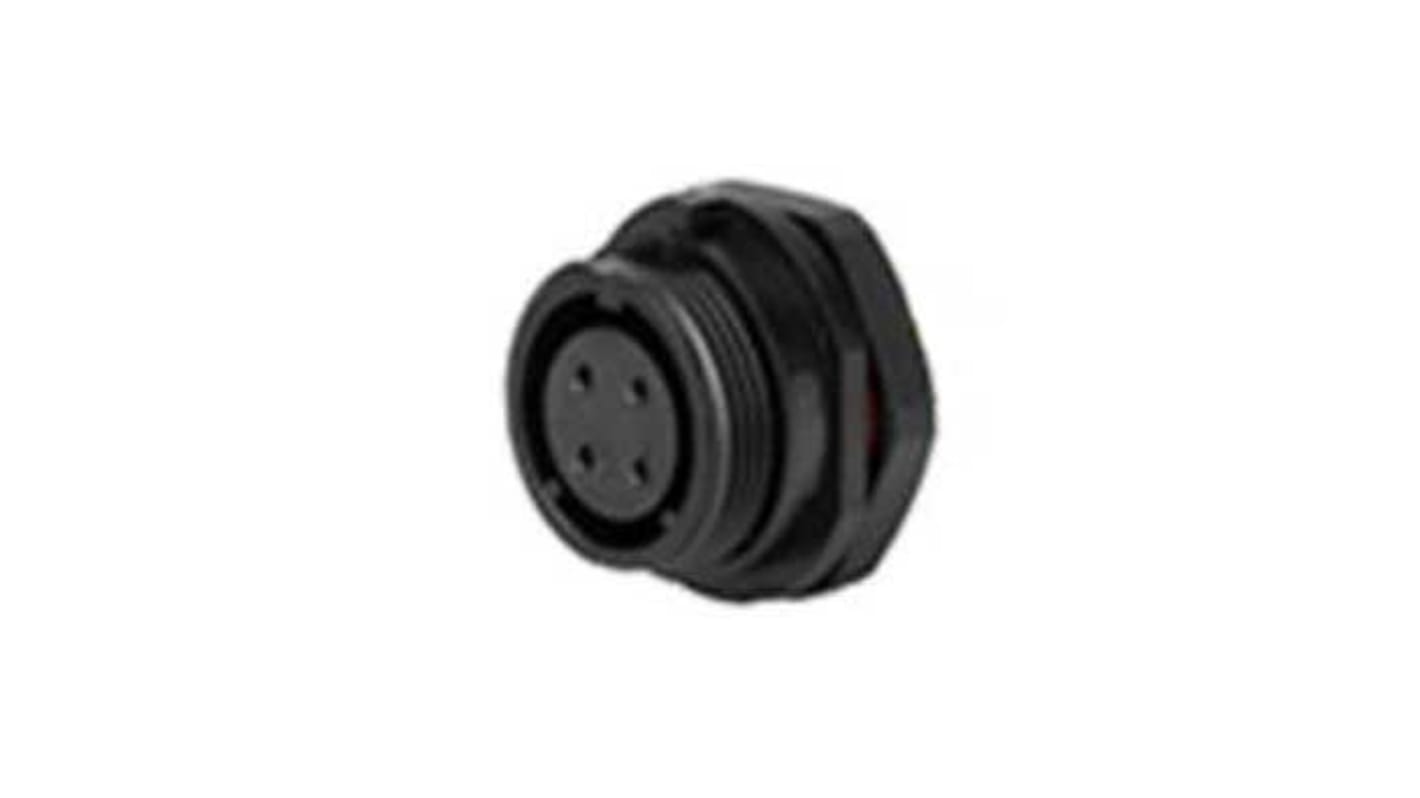

RS PRO Circular Connector, 4 Contacts, Panel Mount, Socket, Female, IP68
- RS Stock No.:
- 124-6654
- Brand:
- RS PRO
68 In stock for same day dispatch
Added
Price Each
Kr. 135,63
(exc. VAT)
Kr. 169,54
(inc. VAT)
| Units | Per unit |
| 1 - 9 | Kr. 135,63 |
| 10 - 49 | Kr. 128,81 |
| 50 - 99 | Kr. 121,99 |
| 100 + | Kr. 114,95 |
- RS Stock No.:
- 124-6654
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Front Mount Socket 10A/5A Circular Connectors (Threaded) IP68
From RS Pro, these threaded sockets are serious contenders for your application. This particular model has a bigger and stronger shell. That coupled with the IP68 rating excels in harsh environments. When choosing a female connector, this version should really be one you consider.
Features & Benefits
• 2 way, 3 way and 4 way available
• Cable outer diameter acceptance: 6 mm - 10 mm
• AWG 14
• Crimp contact termination
• High-quality Nylon66 shell
• Panel hole cutout diameter: 17 mm
• Front mounted for your convenience
• Cable outer diameter acceptance: 6 mm - 10 mm
• AWG 14
• Crimp contact termination
• High-quality Nylon66 shell
• Panel hole cutout diameter: 17 mm
• Front mounted for your convenience
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 4 |
| Mounting Type | Panel Mount |
| Connector Size | Standard |
| Plug/Socket | Socket |
| Contact Gender | Female |
| Termination Method | Crimp |
| IP Rating | IP68 |
| Current Rating | 5.0A |
| Body Orientation | Straight |
| Voltage Rating | 500 V |
| Mating Type | Threaded |
| Housing Material | Polymer |
| Pole Format | 4P |
| Contact Plating | Gold |
| Maximum Operating Temperature | +85°C |
| Contact Material | Brass |
| Minimum Operating Temperature | -25°C |
