Phoenix Contact Circular Connector, 3 Contacts, Bulkhead Mount, M8 Connector, Plug, Female, IP67, SACC Series
- RS Stock No.:
- 802-5489
- Mfr. Part No.:
- 1500350
- Brand:
- Phoenix Contact
View this category
2 In stock for same day dispatch
Price Each
kr 253,44
(exc. VAT)
kr 316,80
(inc. VAT)
Units | Per unit |
1 - 4 | kr 253,44 |
5 - 24 | kr 245,63 |
25 + | kr 235,73 |
- RS Stock No.:
- 802-5489
- Mfr. Part No.:
- 1500350
- Brand:
- Phoenix Contact
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Flush Type Sensor/Actuator M8 Connectors, M8/10/12 Thread Types, Free End Litz Wire
Phoenix contact M8 flush mount connectors with 0.5m of PVC litz wire. These 3 and 4 way panel mount connectors are A-coded and have 3-4 strands of 0.25mm2 free end litz wire measuring 0.5 metres in length to terminate to your particular application, IP67 rated once mated with a rating of 4A at 30V (4 pole) and 4A at 60V (3 Pole) , with a M8/M10/M12 fastening thread where applicable.

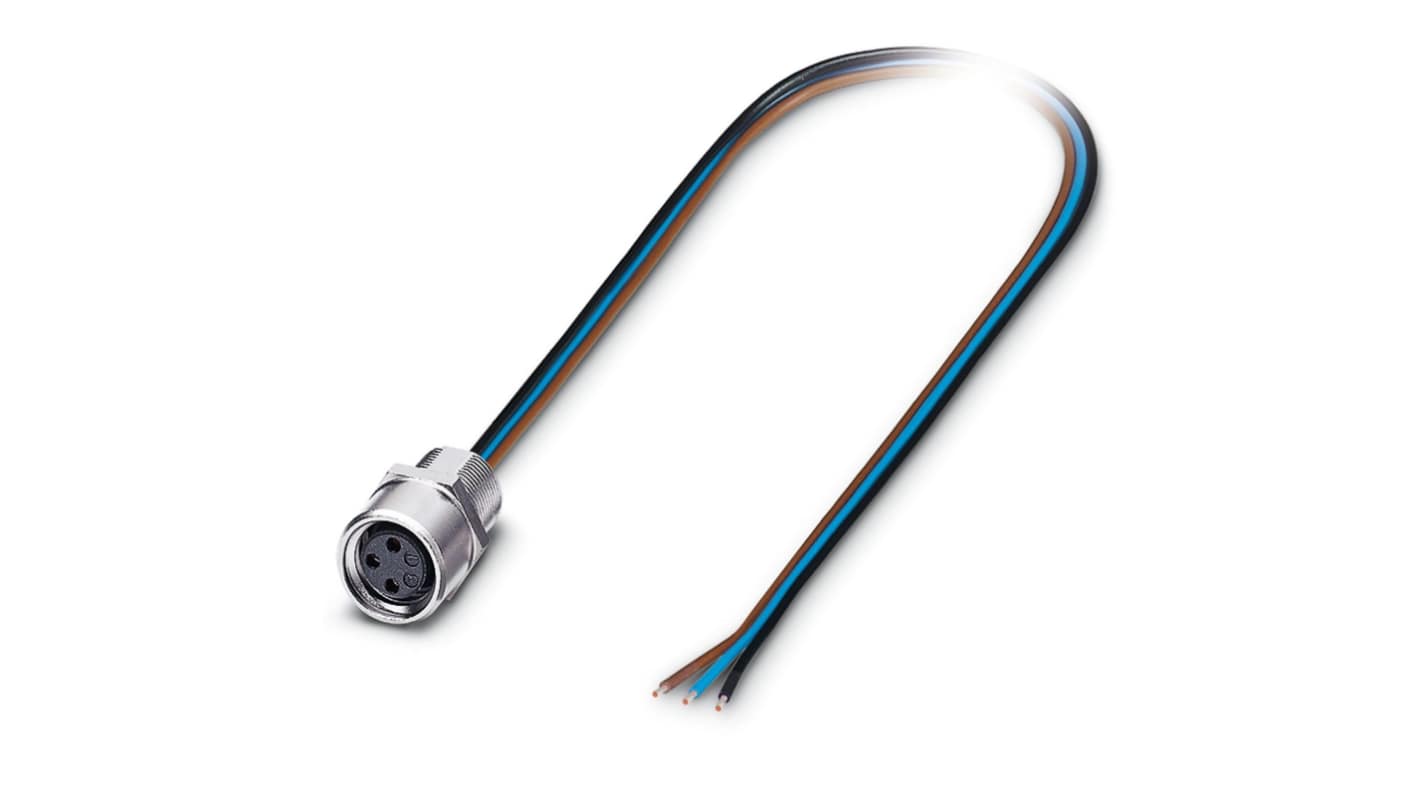

Phoenix Contact Bulkhead Mount Connector, M8, 3 Contacts - SACC-E-M 8FS-3CON-M8/0.5 - 1500350
Effectively meet the power and data demands of your equipment with this Phoenix Contact bulkhead-mount circular connector. The heavy-duty 3-contact connector and 0.5m lead create secure and stable links to reduce downtime in operations like industrial assembly lines.
The female M8 actuator features multistrand Litz wire that efficiently carries alternating current (AC) at radio frequencies to reduce proximity effect losses that can hamper signal transmissions. It has an ingress protection (IP) rating of IP67 when paired with a corresponding male plug, so you can be sure that the contacts and wires are protected from dust and water jets.
Pre-wired termination saves on installation time as the connector is already attached to the wire and can be simply plugged and unplugged. Use this unit to transmit electricity or data to a variety of residential, commercial and industrial equipment.
The female M8 actuator features multistrand Litz wire that efficiently carries alternating current (AC) at radio frequencies to reduce proximity effect losses that can hamper signal transmissions. It has an ingress protection (IP) rating of IP67 when paired with a corresponding male plug, so you can be sure that the contacts and wires are protected from dust and water jets.
Pre-wired termination saves on installation time as the connector is already attached to the wire and can be simply plugged and unplugged. Use this unit to transmit electricity or data to a variety of residential, commercial and industrial equipment.
Features & Benefits
Polymer housing is hardy and chemical-resistant to effectively shield internal components
Gold-plated copper contacts provide strong conductivity to ensure optimal signal transmissions
Operating temperature range of -25°C to +85°C for reliable use in harsh industrial conditions
Gold-plated copper contacts provide strong conductivity to ensure optimal signal transmissions
Operating temperature range of -25°C to +85°C for reliable use in harsh industrial conditions
Specifications
Attribute | Value |
Number of Contacts | 3 |
Mounting Type | Bulkhead Mount |
Connector Size | M8 |
Plug/Socket | Plug |
Contact Gender | Female |
Termination Method | Pre-Wired |
IP Rating | IP67 |
Current Rating | 4A |
Series | SACC |
Body Orientation | Straight |
Coding | A |
Voltage Rating | 48 V ac, 60 V dc |
Mating Type | Quick Connect |
Housing Material | Polymer |
Pole Format | 3P |
Contact Plating | Gold |
Contact Material | Copper |
Minimum Operating Temperature | -10 (Flexible) °C, -40 (Fixed) °C |
Maximum Operating Temperature | +105°C |
