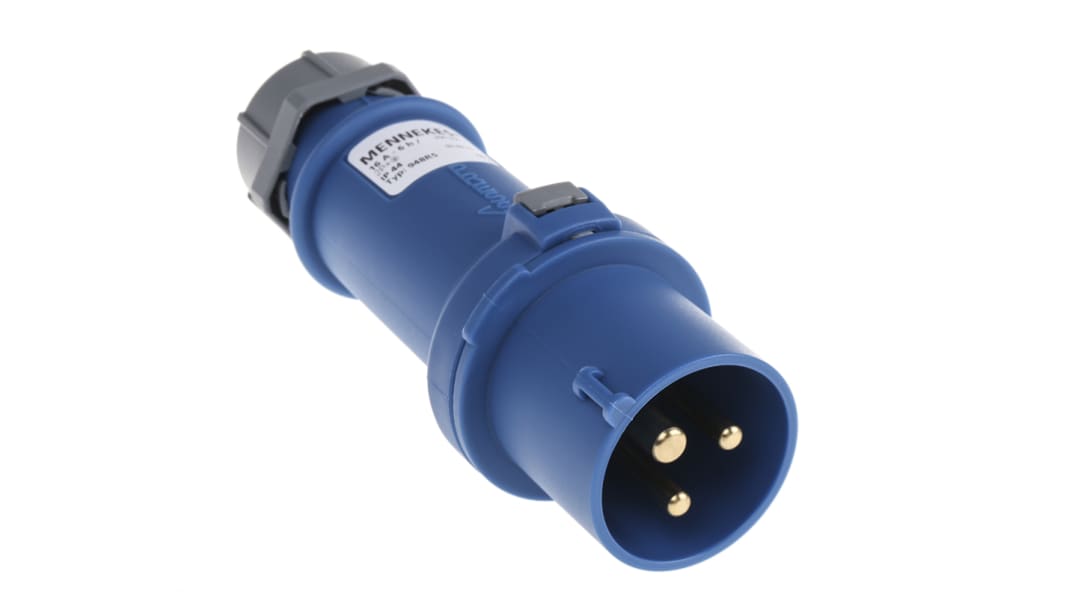

    MENNEKES, StarTOP IP44 Blue Cable Mount 3P Industrial Power Plug, Rated At 16A, 230 V

    MENNEKES
    RS Stock No.:
    530-5798
    Mfr. Part No.:
    948
    Brand:
    MENNEKES
    View this category
    Available to back order for despatch 11.12.2023
    Add to Basket
    Units

    Added

    Price Each

    kr 260,70

    (exc. VAT)

    kr 325,88

    (inc. VAT)

    UnitsPer unit
    1 - 4kr 260,70
    5 +kr 247,39

    Alternative

    This product is not currently available. Here is our alternative recommendation.

    presentation
    RS Stock No.
    530-5760

    Price Each

    kr 158,62

    (exc. VAT)

    kr 198,28

    (inc. VAT)

    RS Stock No.:
    530-5798
    Mfr. Part No.:
    948
    Brand:
    MENNEKES

    Technical Reference


    Legislation and Compliance

    COO (Country of Origin):
    DE

    Product Details

    StarTOP Plugs and Connectors


    Glanded entry completely screwless industrial plug and connector, used to reduce installation time by approximately 60%
    Connection terminals strip conductors and provide contact as terminal is pushed home
    Integral pressure cable gland automatically gives strain relief and a watertight cable seal to IP44
    The black connectors are for use with 500V/60Hz supplies
    The green connectors are for use with 500V/100-300Hz supplies

    Note

    230V plug and socket stock no.s 530-6151 and 530-6230 have four pins and are for use with 230V 3-phase supply applications. They are not compatible with the standard 2P+E 3-pin planform blue 230V connectors.

    Caution

    Users should ensure that if these 230V 3-phase connectors are used in conjunction with an inverter, then on no account should the output be disconnected from the inverter with the load still on-line.


    Mennekes ProTOP & StarTOP


    Plugs and sockets conforming to the latest requirements of British and European standards. The insulator outer casing and interiors are manufactured from Amaplast (nylon 6) for excellent mechanical performance from -25°C to +55°C (ambient temperature). This material provides good electrical insulation and will meet the requirements of most industrial environments.,Contact tubes and pins are made of brass. To prevent incorrect connection, the earth contact is in a different position, relative to the safety key way on each socket outlet, for each voltage.,Products are type tested to VDE.

    Specifications

    AttributeValue
    Current Rating16A
    Plug/SocketPlug
    Pole Format3P
    Voltage Rating230 V
    Mounting TypeCable Mount
    GenderMale
    Body OrientationStraight
    Termination MethodScrewless
    SeriesStarTOP
    IP RatingIP44
    Cable CSA1 → 2.5mm²
    ColourBlue
    Maximum Operating Temperature+55°C
    Minimum Operating Temperature-25°C
    Low VoltageNo
