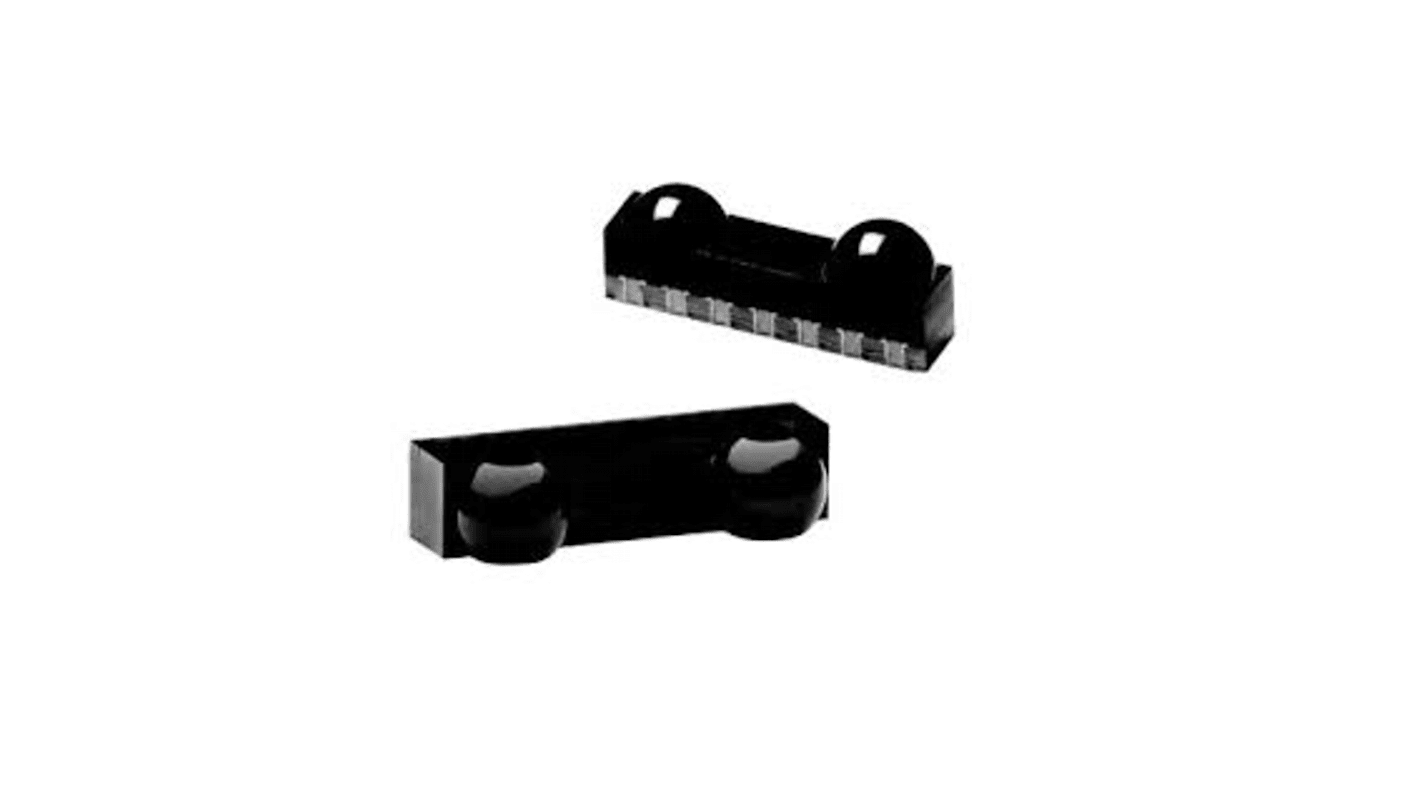

TFBS4652-TT1 Vishay, Infrared Transceiver, 886nm 15 ° IrDA, 886nm 115kbit/s, 50cm Range, SMT, 6.8 x 2.8 x 1.6mm
- RS Stock No.:
- 230-8356
- Mfr. Part No.:
- TFBS4652-TT1
- Brand:
- Vishay
406 In stock for same day dispatch
Added
Price Each (In a Pack of 2)
Kr. 53,05
(exc. VAT)
Kr. 66,31
(inc. VAT)
| Units | Per unit | Per Pack* |
| 2 - 18 | Kr. 53,05 | Kr. 106,10 |
| 20 - 48 | Kr. 31,885 | Kr. 63,77 |
| 50 - 98 | Kr. 29,22 | Kr. 58,44 |
| 100 - 198 | Kr. 27,555 | Kr. 55,11 |
| 200 + | Kr. 26,555 | Kr. 53,11 |
| *price indicative | ||
- RS Stock No.:
- 230-8356
- Mfr. Part No.:
- TFBS4652-TT1
- Brand:
- Vishay
Technical Reference
Legislation and Compliance
Product Details
The Vishay infrared transceiver is one of the smallest IrDA compliant transceivers available. It supports data rates up to 115 Kbit/s. The transceiver consists of a PIN photodiode, infrared emitter, and control IC in a single package. It has low current consumption of 75 μA idle at 3.6 V.
It is adjustable to logic I/O voltage swing from 1.5 V to 5.5 V
It is compliant to RoHS directive and lead free
It is compliant to RoHS directive and lead free
Specifications
Attribute | Value |
|---|---|
| Maximum Transmission Distance | 50cm |
| Emitter Peak Wavelength | 886nm |
| Wavelength of Peak Sensitivity | 886nm |
| Maximum Data Receiving Rate | 115kbit/s |
| Mounting Type | Surface Mount |
| Dimensions | 6.8 x 2.8 x 1.6mm |
| Emitter Angle of Half Intensity | 15 ° |
| IrDA Compliance | IrDA |
