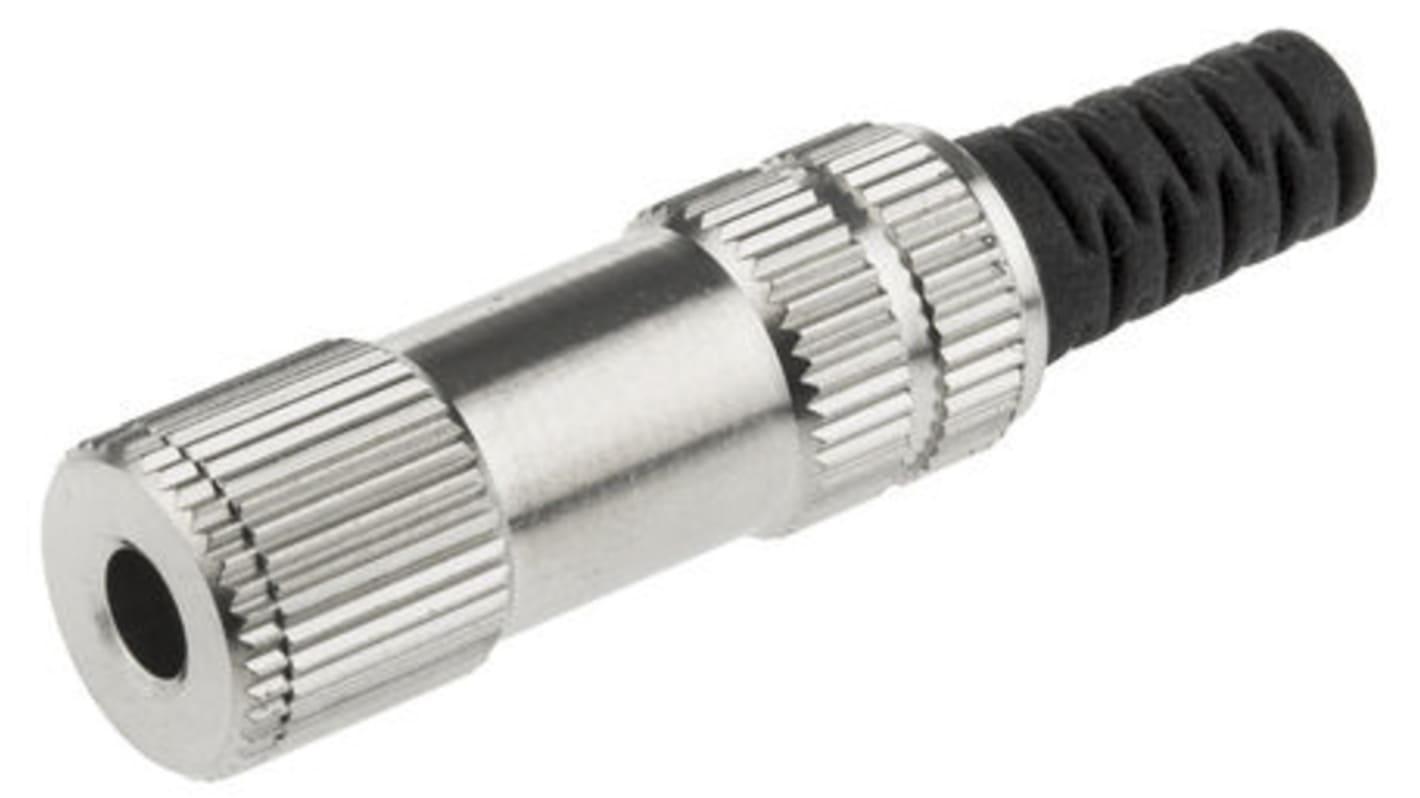

Lumberg Jack Connector 3.5 mm Cable Mount Stereo Socket, 3Pole 1A
- RS Stock No.:
- 884-1238
- Mfr. Part No.:
- 1520 02
- Brand:
- Lumberg
155 In stock for same day dispatch
Added
Price Each (In a Pack of 5)
Kr. 29,018
(exc. VAT)
Kr. 36,272
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 20 | Kr. 29,018 | Kr. 145,09 |
| 25 + | Kr. 26,092 | Kr. 130,46 |
| *price indicative | ||
- RS Stock No.:
- 884-1238
- Mfr. Part No.:
- 1520 02
- Brand:
- Lumberg
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
3.5 mm female jack plugs
From Lumberg, this selection of female jack plugs are available in two-pole (mono) and three-pole (stereo) versions and have a solder connection. These female jack plugs are compatible with JISC 6560 plugs.
Features and Benefits:
• Contact Resistance: ≥30 mΩ
• Voltage: 12 V
• Current: 1A
• Operating Temperature: -20°C to +70°C
• Contact Resistance: ≥30 mΩ
• Voltage: 12 V
• Current: 1A
• Operating Temperature: -20°C to +70°C
Lumberg Jack Plug
The Lumberg female mono jack plug connector of size 3.5mm and has 2-poles. This jack is cable mount and the housing is made of PE material with copper alloy nickel-plated contact. It has an electrical voltage rating of 12VDC and current rating 1A.
Features and Benefits
• Contact Resistance is ≥30mΩ
• Good solder connection
• Insulation resistance ≥ 100 MΩ
• Operating temperature ranges between -10°C and 50°C
• Provides bend protection and solder terminals
• Good solder connection
• Insulation resistance ≥ 100 MΩ
• Operating temperature ranges between -10°C and 50°C
• Provides bend protection and solder terminals
Certifications
• UL 94 approved
Specifications
Attribute | Value |
|---|---|
| Gender | Female |
| Size | 3.5 mm |
| Mounting Type | Cable Mount |
| Type | Stereo |
| Body Orientation | Straight |
| Termination Method | Solder |
| Contact Plating | Nickel |
| Current Rating | 1A |
| Housing Material | PVC |
| Voltage Rating | 12 V dc |
| Colour | Black, Silver |
| Contact Material | Copper Alloy |
| No of Poles/ Way | 3 |
