- RS Stock No.:
- 166-2319
- Mfr. Part No.:
- BSR58
- Brand:
- onsemi
- RS Stock No.:
- 166-2319
- Mfr. Part No.:
- BSR58
- Brand:
- onsemi
Legislation and Compliance
Product Details
N-channel JFET, Fairchild Semiconductor
JFET Transistors
A range of JFET (junction field-effect transistor) and HEMT/HFET (high-electron-mobility transistor/ hetero-junction FET) discrete semiconductor devices.
Specifications
Attribute | Value |
---|---|
Channel Type | N |
Idss Drain-Source Cut-off Current | 8 to 80mA |
Maximum Drain Source Voltage | 0.4 V |
Maximum Gate Source Voltage | -40 V |
Maximum Drain Gate Voltage | 40V |
Configuration | Single |
Transistor Configuration | Single |
Mounting Type | Surface Mount |

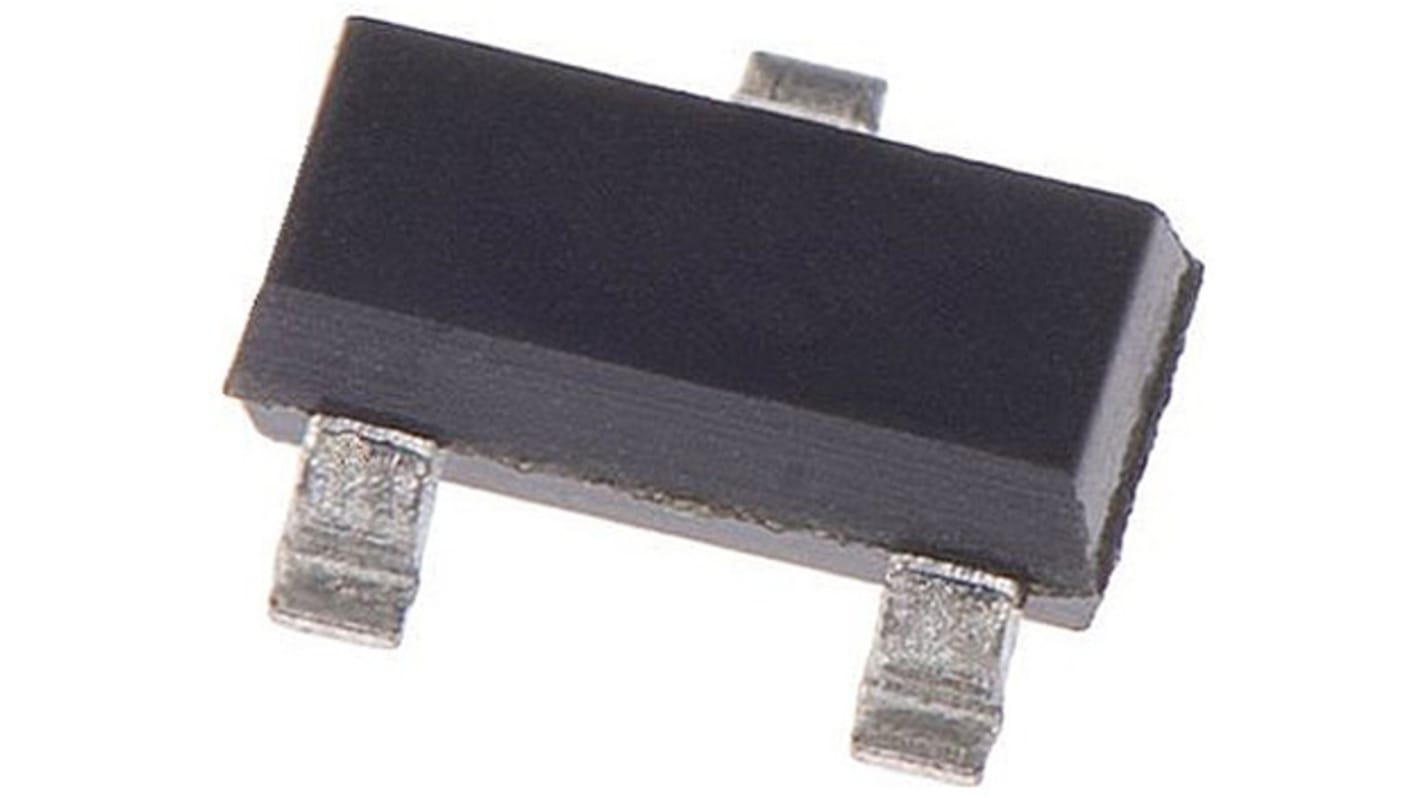

Package Type | SOT-23 |
Pin Count | 3 |
Dimensions | 2.9 x 1.3 x 0.97mm |
Width | 1.3mm |
Length | 2.9mm |
Maximum Operating Temperature | +150 °C |
Height | 0.97mm |
