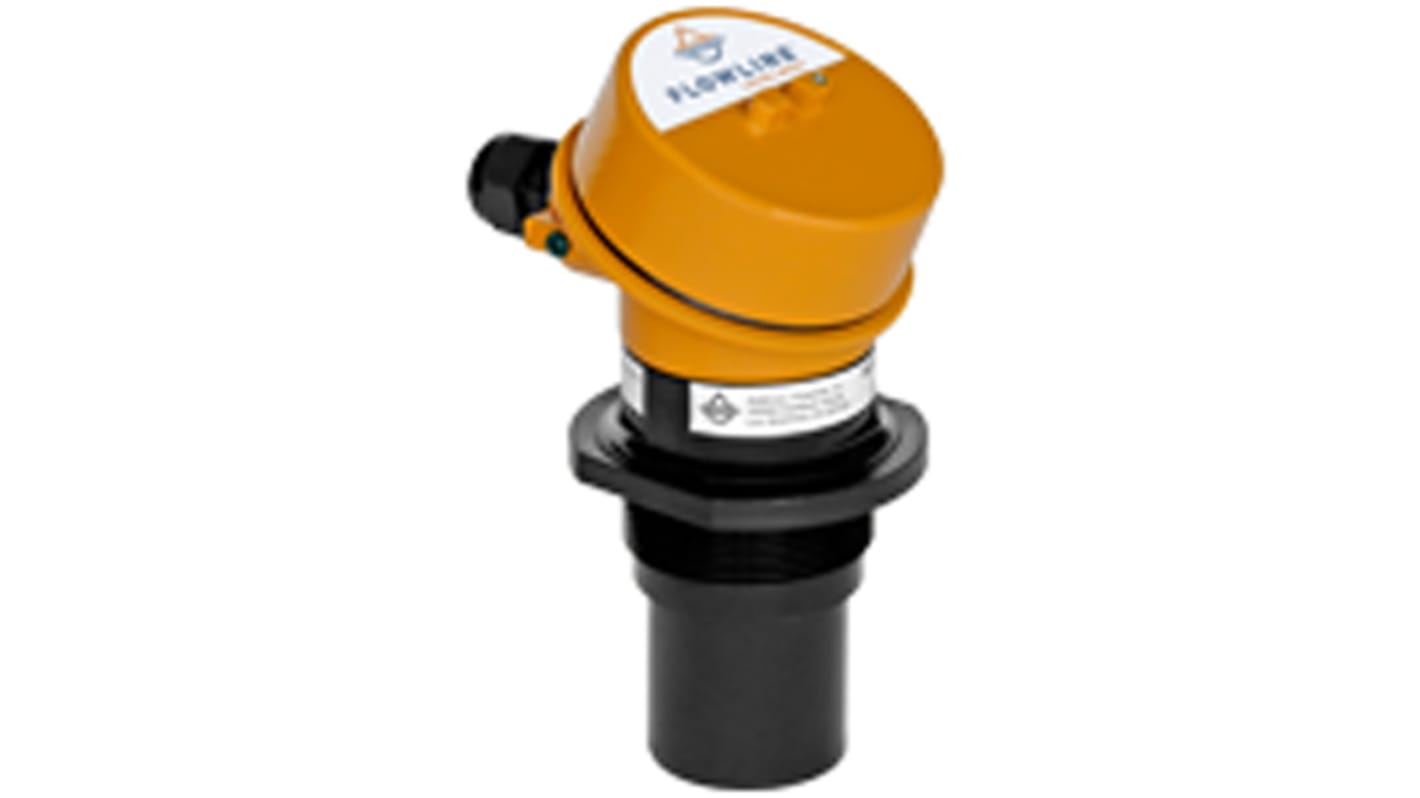

Flowline US06 Series Reflective Ultrasonic Liquid Level Transmitter Level Transmitter, 2 Wire, 4 to 20 mA, HART 7
- RS Stock No.:
- 137-2046
- Mfr. Part No.:
- US06-0001-01
- Brand:
- Flowline
2 In stock for same day dispatch
Added
Price Each
Kr. 12 959,32
(exc. VAT)
Kr. 16 199,15
(inc. VAT)
| Units | Per unit |
| 1 + | Kr. 12 959,32 |
- RS Stock No.:
- 137-2046
- Mfr. Part No.:
- US06-0001-01
- Brand:
- Flowline
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- US
Product Details
Flowline EchoTouch US06 Reflective Ultrasonic Liquid Level Transmitter
Flowline EchoTouch US06 intrinsically safe reflective ultrasonic level transmitter provides continuous level measurement up to 12 m with a 4 mA to 20 mA analogue and HART digital signal output. Outputs are configurable via an integrated push button display module or Flowline WebCal software. The non-contact liquid level sensor features proprietary Reflective Technology that delivers reliable level measurement in condensing environments. Typical applications include bulk storage, neutralisation tank, clarifier and waste sumps.
Features and Benefits
Reflective Technology measures reliably with condensation
Corrosion resistant PVDF transducer with aluminium enclosure
Narrow 3” (7.6 cm) beam width for applications with limited space
LCD display indicates level in inches, meters or percent of span
HART communication in point to point and multi-drop modes
Fail-safe diagnostics with selectable fail-safe signal outputs
Configuration via push button display or WebCal software
Automatic temperature compensation from -40º to 80º C.
Flowline Sensors
Specifications
Attribute | Value |
|---|---|
| Device Type | Reflective Ultrasonic Liquid Level Transmitter |
| Mounting Type | Horizontal, Vertical |
| Switch Output | 2 Wire, 4 to 20 mA, HART 7 |
| Body Material | Aluminium |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +80°C |
| Maximum DC Voltage | 28V |
| Maximum Current | 20 mA |
| Maximum Pressure | 2bar |
| Series | US06 |
| Standards Met | CE, CSA, cUS |
| Interface | HART, USB |
