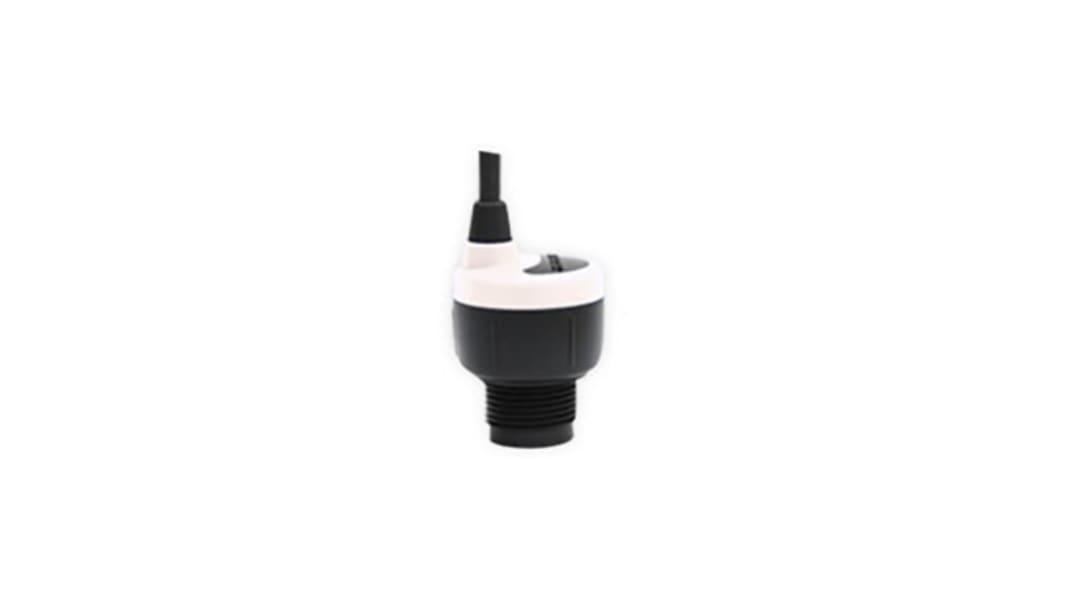

Flowline EchoPod Series Ultrasonic Level Transmitter Ultrasonic Level Sensor, Vertical, Polycarbonate Body

RS Stock No.:: 889-1346
Mfr. Part No.:: DL10-11
Brand:: Flowline

Flowline EchoPod Series Ultrasonic Level Transmitter Ultrasonic Level Sensor, Vertical, Polycarbonate Body

3 In stock for same day dispatch

Added

Price Each

Kr. 5 658,18

(exc. VAT)

Kr. 7 072,72

(inc. VAT)

Units	Per unit
1 +	Kr. 5 658,18

RS Stock No.:: 889-1346
Mfr. Part No.:: DL10-11
Brand:: Flowline

Technical Reference

Datasheet

Legislation and Compliance

RoHS Status: Not Applicable

Product Details

Flowline Ultrasonic Level Switch

The Flowline Ultrasonic level transmitter provides continuous level measurement up to 49.2in (1.25m) and output current rating ranging from 4mA to 20mA and is configured via our free WebCal software. This non-contact liquid level sensor is ideally suited for corrosive, sticky or dirty liquids. It has a supply voltage of 24VDC.
Note:
Compatible with Various Flowline product ranges such as DataLoop, DataView, DataPoint and Commander

Features and Benefits

Narrow 2in beam width and short 2in dead band optimized for small tanks
PVDF transducer and 6P polycarbonate enclosure for corrosive liquids
Automatic temperature compensation for accurate measurement
USB adapter with fob
Cable length of 1.2m
Maximum current of 20mA
Process mount: 1in NPT (1in G)

Applications

Tanks
Skids
IBC
Sumps and process tank level applications

Certifications

cFMus certificated
CE certificated
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Specifications

Attribute	Value
Device Type	Ultrasonic Level Transmitter
Mounting Type	Vertical
Body Material	Polycarbonate
Cable Length	1.2m
Minimum Operating Temperature	-35°C
Maximum Operating Temperature	+60°C
Maximum DC Voltage	24V
Maximum Current	20 mA
Maximum Pressure	30psi
Gasket Material	Viton
Series	EchoPod
Standards Met	CE, cFMus, RoHS Compliant
