- RS Stock No.:
- 623-6980
- Mfr. Part No.:
- ST1W008S4A
- Brand:
- JAE
902 In stock for same day dispatch
Added
Price Each
Kr. 22,88
(exc. VAT)
Kr. 28,60
(inc. VAT)
Units | Per unit |
1 - 24 | Kr. 22,88 |
25 - 74 | Kr. 20,57 |
75 - 199 | Kr. 18,26 |
200 - 399 | Kr. 16,06 |
400 + | Kr. 14,96 |
- RS Stock No.:
- 623-6980
- Mfr. Part No.:
- ST1W008S4A
- Brand:
- JAE
Technical Reference
Legislation and Compliance
Product Details

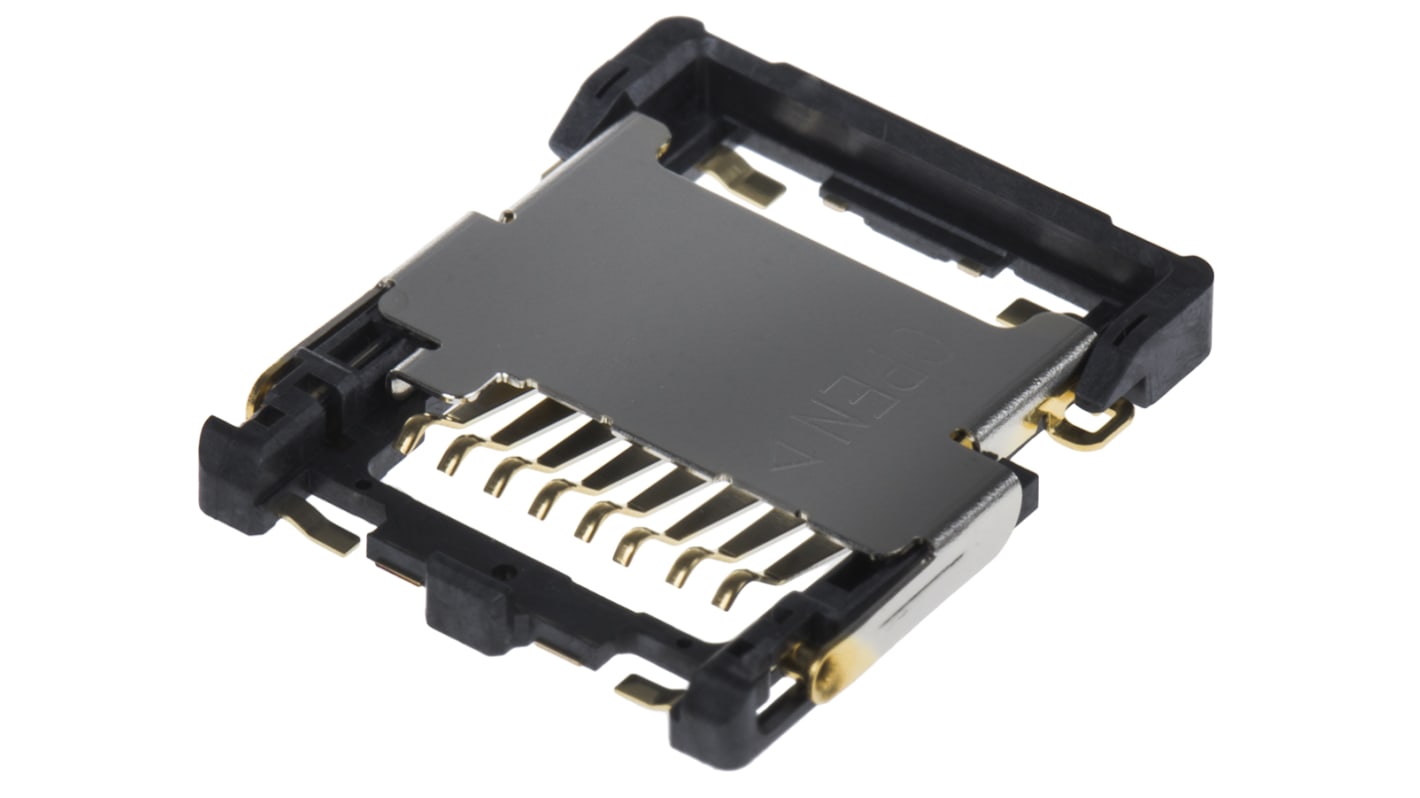

Micro SD
The New Micro SD is the next generation of slim, small profile memory devices accepting the new Micro SD (Transflash) cards. Available with Hinged design for enclosed applications or the Push/Push versions where the user needs to remove the card frequently. Micro SD gives a 70% saving from mini SD.
Height of just 1.9mm
4 Grounding points on the Hinge version
Strong lock design to resist drop impact
10000 operations
Push/Push Mechanism
Audible Click for card Insertion
4 Grounding points on the Hinge version
Strong lock design to resist drop impact
10000 operations
Push/Push Mechanism
Audible Click for card Insertion
Specifications
Attribute | Value |
---|---|
Card Type | MicroSD |
Gender | Male |
Number of Contacts | 8 |
Number of Rows | 1 |
Pitch | 1.1mm |
Body Orientation | Straight |
Mounting Type | Surface Mount |
Contact Material | Copper Alloy |
Contact Plating | Gold over Nickel |
Termination Method | Solder |
Housing Material | Liquid Crystal Polymer |
Length | 14.15mm |
Width | 2.0mm |
Depth | 16.3mm |
Dimensions | 14.15 x 2 x 16.3mm |
Maximum Operating Temperature | +85°C |
Minimum Operating Temperature | -25°C |
