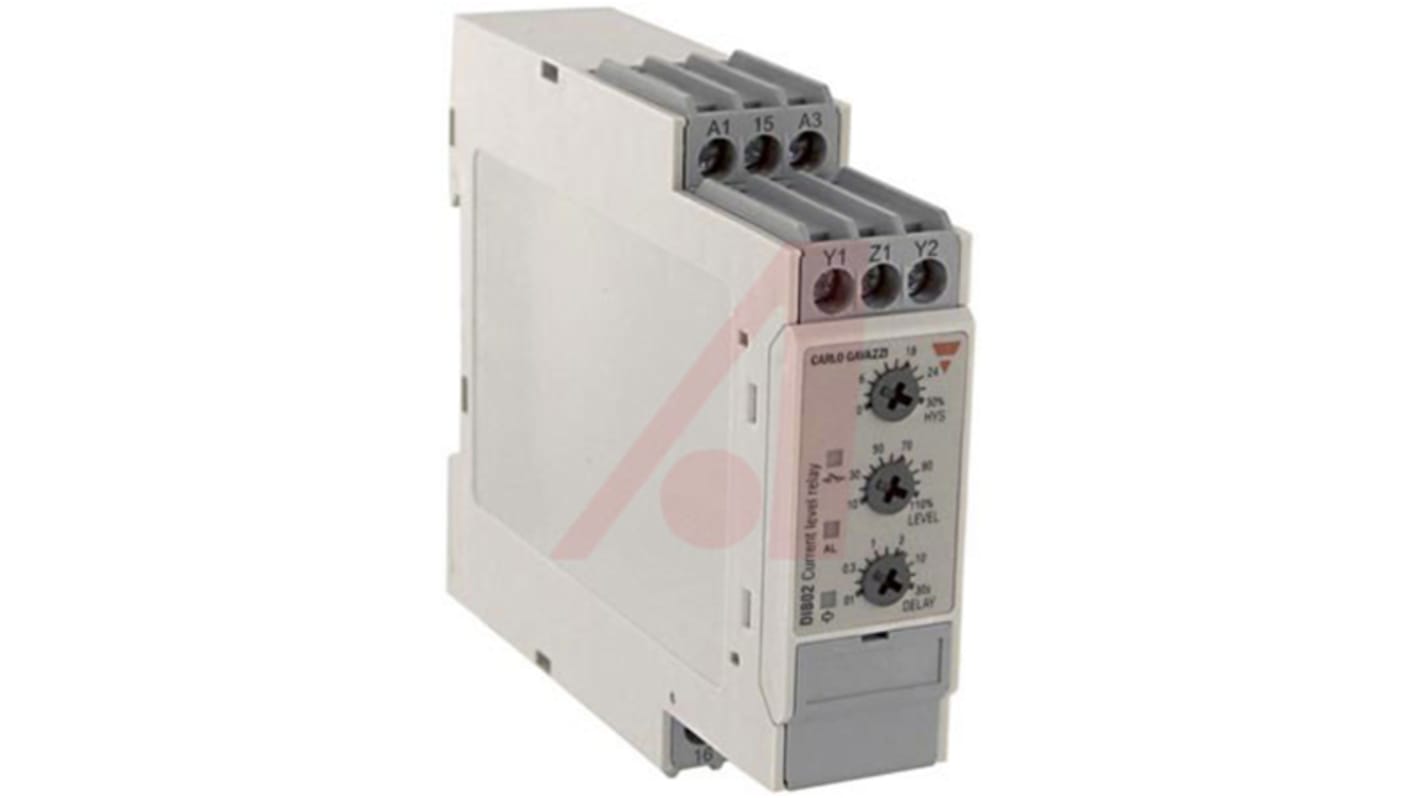

Carlo Gavazzi Current Monitoring Relay, 1 Phase, SPDT, Maximum of 4 V ac, 150 mV ac/dc, DIN Rail

RS Stock No.:: 857-7189
Mfr. Part No.:: DIB02CB23150MV
Brand:: Carlo Gavazzi

Carlo Gavazzi Current Monitoring Relay, 1 Phase, SPDT, Maximum of 4 V ac, 150 mV ac/dc, DIN Rail

3 In stock for same day dispatch

Added

Price Each

Kr. 1 597,75

(exc. VAT)

Kr. 1 997,19

(inc. VAT)

Units	Per unit
1 +	Kr. 1 597,75

RS Stock No.:: 857-7189
Mfr. Part No.:: DIB02CB23150MV
Brand:: Carlo Gavazzi

Technical Reference

Datasheet

Legislation and Compliance

COO (Country of Origin):: IT

Product Details

Over Voltage - Over Current Monitoring Relay

Monitoring relays from Carlo Gavazzi can also be used as 1-phase or 3- phase over current monitoring relays when connected with MI or MP current transformers.Owing to the built-in latch function, the ON-position of the relay output can be maintained. The red LED indicates the alarm status.

AC/DC over voltage monitoring relay
Selection of measuring range by DIP-switches
Measuring ranges: 2 to 20 VAC/DC, 5 to 50 VAC/DC,
20 to 200 VAC/DC, 50 to 500 VAC/DC, 0.4 to 4 Vp AC
Adjustable voltage limit on relative scale
Adjustable hysteresis
Programmable latching at set level
Output: 8 A SPDT relay normally de-energized
LED indication for relay and power supply ON
Galvanically separated power supply
Panel and screw termination options available

Specifications

Attribute	Value
Monitoring Application	Current
Electrical Phase	1
Voltage Sensing Range	Maximum of 4 V ac, 150 mV ac/dc
Contact Configuration	SPDT
Mounting Type	DIN Rail
Current Sensitivity	Overcurrent, Undercurrent
Time Delay	1 s, 6s
Series	DIB02
Minimum Operating Temperature	-20°C
Operating Temperature Range	+60°C
Length	99.5mm
Height	80mm
Terminal Type	Screw
Maximum Voltage Sensed	4 V ac, 150mV ac/dc
Dimensions	99.5 x 22.5 x 80mm
Width	22.5mm
Maximum Operating Temperature	+60°C
