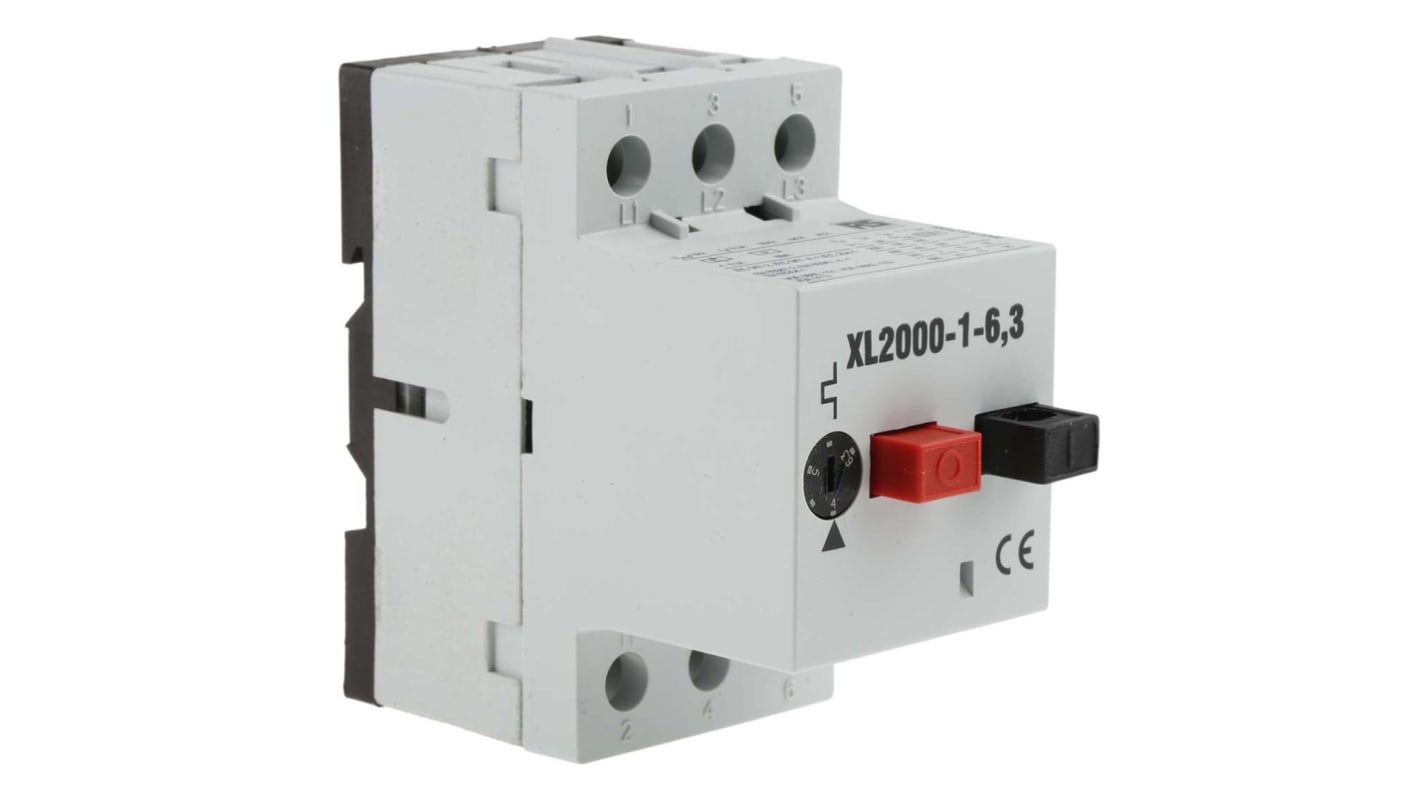

RS PRO 4 → 6 A Motor Protection Circuit Breaker

Safety comes first with this motor protection switch from RS PRO, which uses an external conductor to protect against overloading and power failure. The circuit breaker monitors current consumption to shut off power when it reaches a certain limit.

The protection switch is able to carry out up to 40 circuit breaks per hour. It has a voltage rating of 690 V and a current rating of 4 A to 6 A. This component can be adapted to your requirements, with both horizontal and vertical installation possible as well as screw termination.

Protection switches are typically used on smaller machinery in industrial and building environments including cooling towers and heat pumps. As part of the quality RS PRO range, this product has been extensively tested for performance and reliability. It also meets the harmonised safety standards for industrial circuit breakers, IEC 947-2 and IEC 9474.

• Motor protection switch
• Current range of 4 A to 6 A
• Voltage rating of 690 V
• Length of 80 mm
• Width of 45 mm
• Depth of 73.5 mm
• Overload protection compensated -5°C to +40°C
• For use with the MS25 series
• ACG accessory type
• Screw terminal
• Maximum switching frequency 40 operations/hr
• Meets the requirements of safety standards IEC 947-2 and IEC 9474 for industrial circuit breakers
• Conforms to Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
