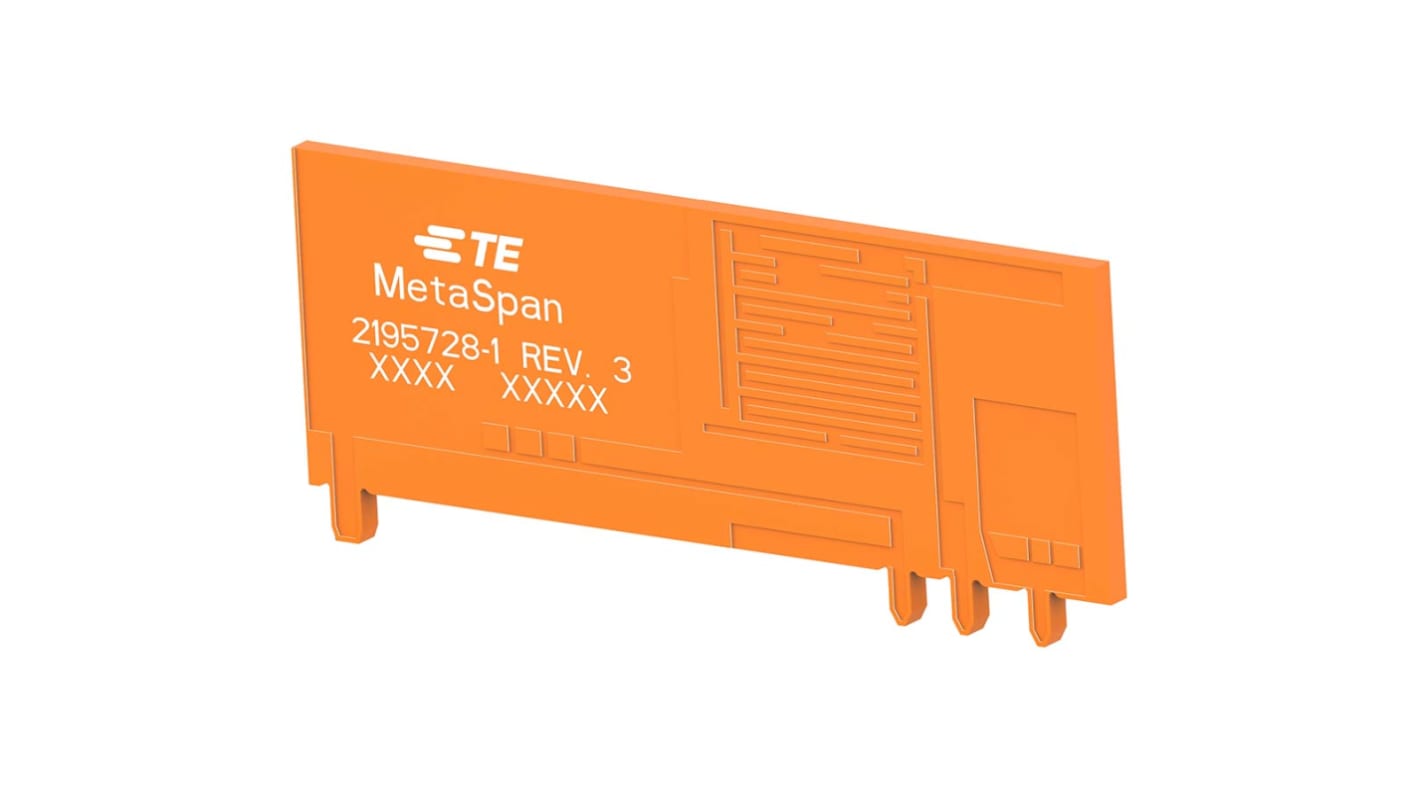

TE Connectivity 2195728-1 PCB Multiband Antenna, 2G (GSM/GPRS), 3G (UTMS), 4G (LTE), 5G, GPS
- RS Stock No.:
- 206-6206
- Mfr. Part No.:
- 2195728-1
- Brand:
- TE Connectivity
1320 In stock for same day dispatch
Added
Price Each (In a Bag of 30)
Kr. 19,103
(exc. VAT)
Kr. 23,879
(inc. VAT)
| Units | Per unit | Per Bag* |
| 30 + | Kr. 19,103 | Kr. 573,09 |
| *price indicative | ||
- RS Stock No.:
- 206-6206
- Mfr. Part No.:
- 2195728-1
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
The TE Connectivity 5G/4G/3G/2G, NB-IoT, Cat-M, GNSS World Band Antenna.
Omnidirectional coverage
Tab mounting with plated through holes
Wide Band coverage for 3G, 4G and 5G with GNSS coverage
Bandwidth and performance is dependent on ground plane size Suggested minimum ground plane length from the antenna feed is 100 mm
Tab mounting with plated through holes
Wide Band coverage for 3G, 4G and 5G with GNSS coverage
Bandwidth and performance is dependent on ground plane size Suggested minimum ground plane length from the antenna feed is 100 mm
Specifications
Attribute | Value |
|---|---|
| RF Protocols | 2G (GSM/GPRS), 3G (UTMS), 4G (LTE), 5G, GPS |
| Frequency Range | 698 → 960 MHz, 1427 → 1661 MHz, 1710 → 2700 MHz |
| Gain | 2.32dBi |
| Antenna Physical Form | PCB |
| Antenna Mounting Type | PCB |
| Antenna Directivity | Omnidirectional |
