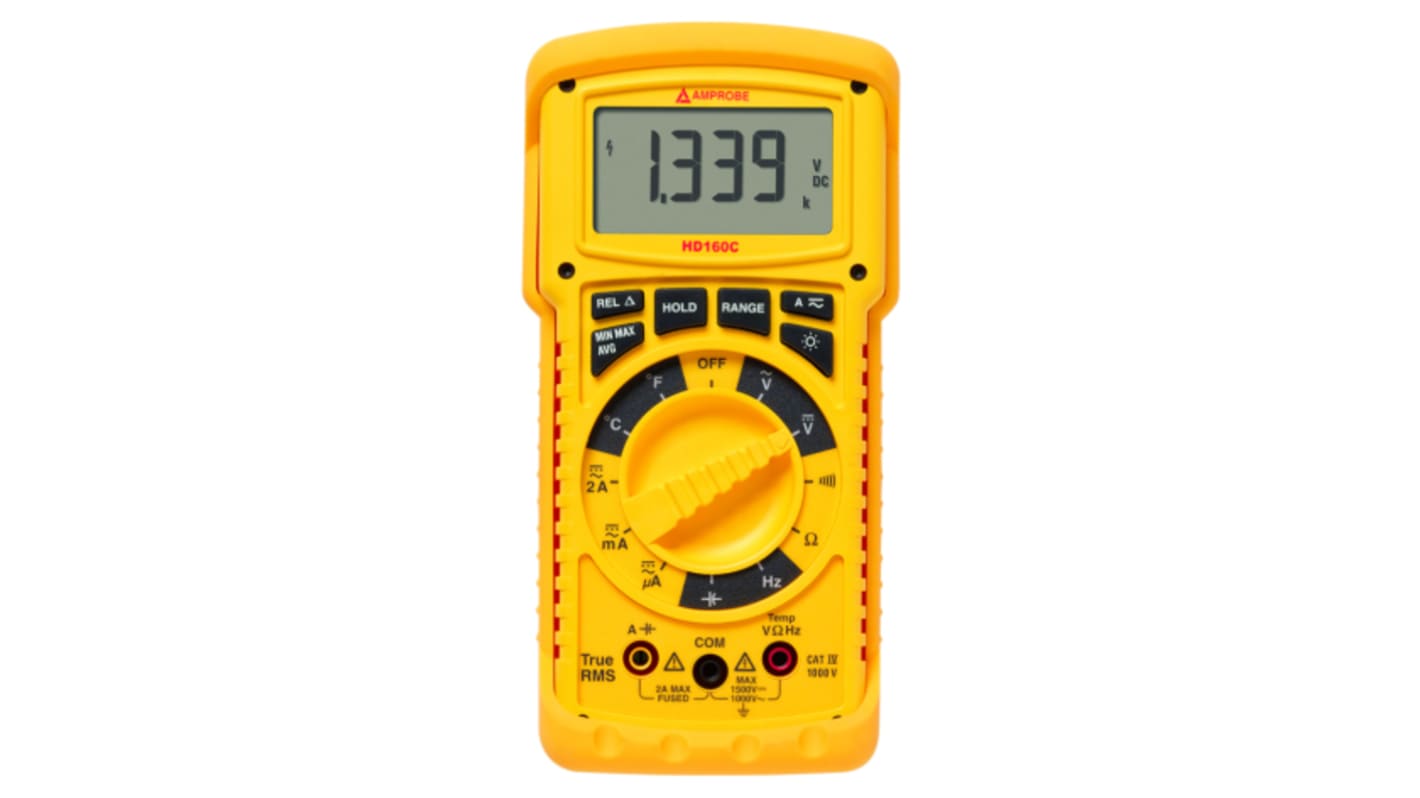

Amprobe HD160C Handheld Digital Multimeter, True RMS, 2A ac Max, 2A dc Max, 1000V ac Max - RS Calibrated
- RS Stock No.:
- 794-4837
- Mfr. Part No.:
- HD160C
- Brand:
- Amprobe
- RS Stock No.:
- 794-4837
- Mfr. Part No.:
- HD160C
- Brand:
- Amprobe
Select all | Attribute | Value |
|---|---|---|
| Brand | Amprobe | |
| Multimeter Type | Handheld | |
| Model Number p | HD160C | |
| Display Type | Digital | |
| Calibrated | RSCAL | |
| Functions Measured | AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Resistance, Temperature | |
| Absolute Maximum DC Current Measurement | 2A dc | |
| Absolute Maximum AC Voltage Measurement | 1000V ac | |
| Absolute Maximum Resistance Measurement | 40MΩ | |
| Absolute Maximum AC Current Measurement | 2A ac | |
| Absolute Maximum DC Voltage Measurement | 1500V dc | |
| Absolute Maximum Temperature Measurement | +1300°C | |
| Absolute Maximum Capacitance Measurement | 400µF | |
| Maximum Frequency | 10MHz | |
| AC Current Measurement Resolution | 0.01µA ac | |
| DC Current Measurement Resolution | 0.01µA dc | |
| AC Voltage Measurement Resolution | 0.1mV ac | |
| DC Voltage Measurement Resolution | 0.1mV dc | |
| Resistance Measurement Resolution | 100mΩ | |
| Temperature Measurement Resolution | 1°C | |
| Capacitance Measurement Resolution | 10pF | |
| Safety Category Level | CAT IV | |
| Maximum Operating Temperature | +50°C | |
| Width | 102mm | |
| Best AC Current Accuracy | ±2.5% + 20 Digits | |
| Best DC Voltage Accuracy | ±0.1% + 5 Digits | |
| Dimensions | 59 x 102 x 200mm | |
| Length | 59mm | |
| Weight | 642g | |
| Height | 200mm | |
| Minimum Operating Temperature | 0°C | |
| Best Capacitance Measurement Accuracy | ±3 % | |
| Best AC Voltage Accuracy | ±2% + 10 Digits | |
| Best Temperature Measurement Accuracy | ±2 % | |
| Battery Type | 9 V | |
| Safety Category Voltage | 1000V | |
| Best DC Current Accuracy | ±1.5% + 10 Digits | |
| Best Resistance Measurement Accuracy | ±2% + 10 Digits | |
