- RS Stock No.:
- 623-3127
- Mfr. Part No.:
- BNS 33-02Z-2187-3M
- Brand:
- Schmersal
118 In stock for same day dispatch
Added
Price Each
Kr. 776,38
(exc. VAT)
Kr. 970,48
(inc. VAT)
Units | Per unit |
1 + | Kr. 776,38 |
- RS Stock No.:
- 623-3127
- Mfr. Part No.:
- BNS 33-02Z-2187-3M
- Brand:
- Schmersal
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

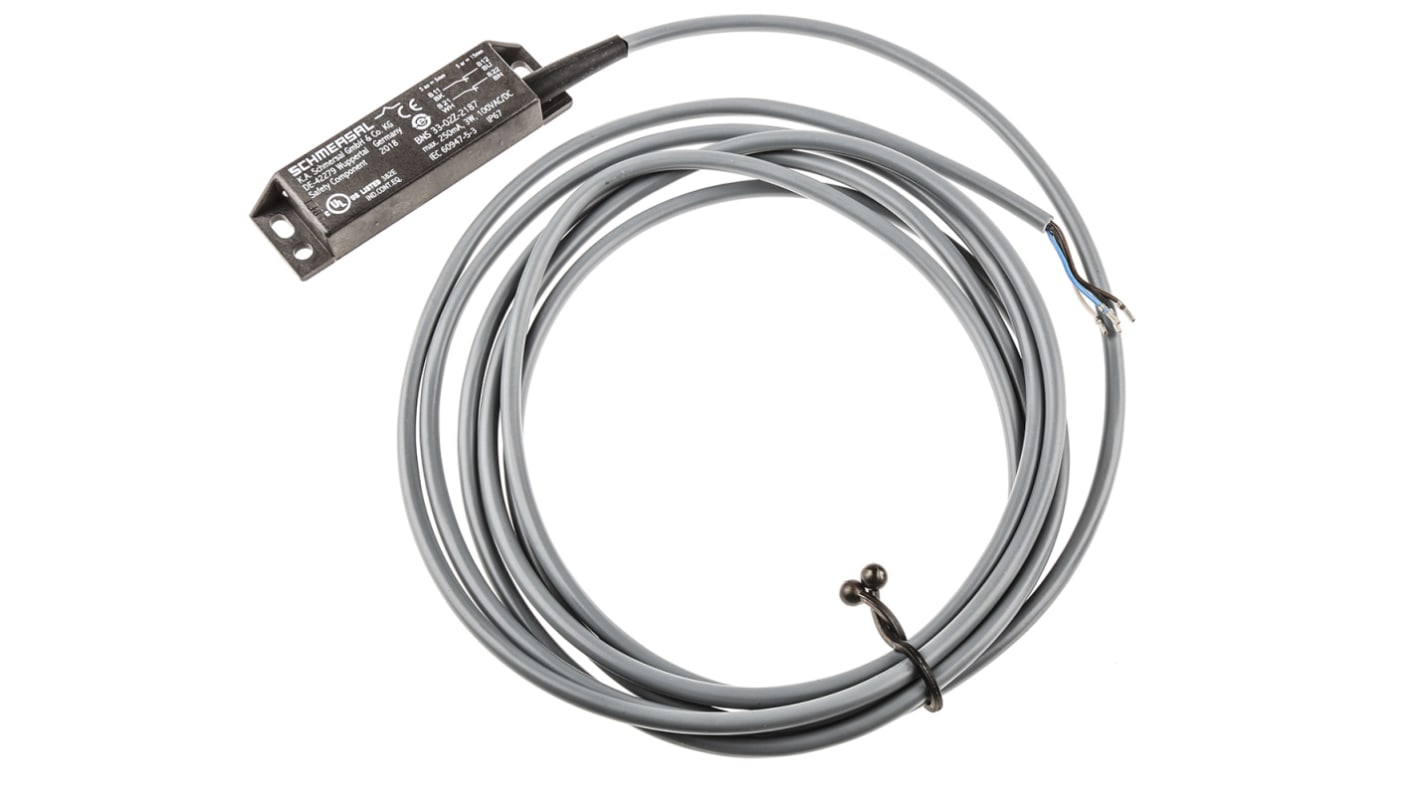

Schmersal Magnetic Safety Switch, 2NO, 100V AC/DC - BNS33 Series - BNS 33-02Z-2187-3M
If you need to guard machinery and prevent injury to personnel in hazardous areas, choose this non-contact safety switch from Schmersal. It makes two electrical connections when it senses that a coded magnetic actuator is in range. This coding adds an extra layer of security and means the switch can't be opened using a standard magnet. The unit has an ON distance of 5 to 8mm and an OPEN distance of 15 to 18mm. The device is enclosed in robust black thermoplastic and can be mounted in a concealed position. It's suitable for voltages of up to 100V AC/DC at up to 0.25A.
Features and Benefits
• IP67 (ingress protection) rating means it can be used in challenging environments and even submerged for short periods
• Operating temperature range of -25°C to +70°C for use in a wide range of environments
• Supplied with a three-metre PVC (polyvinyl chloride) covered cable for simple connection
• Insensitive to transverse misalignment so installation is made simpler
• Operating temperature range of -25°C to +70°C for use in a wide range of environments
• Supplied with a three-metre PVC (polyvinyl chloride) covered cable for simple connection
• Insensitive to transverse misalignment so installation is made simpler
Application Information
• Machine access panels
• Assembly lines
• Food processing
• Assembly lines
• Food processing
Why are magnetic switches used in food-processing applications?
Magnetic switches are easy to clean, making them suitable for contaminated areas or environments with strict hygiene standards.
Specifications
Attribute | Value |
---|---|
Supply Voltage | 100V ac/dc |
Safety Contacts | 2NO |
Housing Material | Plastic |
Connection Type | Cable |
Actuator Type | Coded |
Safety Category | 4 |
Sensor Principle | Magnetic |
Actuator Included | No |
Range | BNS33 |
Series | BNS33 |
IP Rating | IP67 |
Supply Current | 250mA |
Width | 50mm |
Length | 88mm |
Depth | 13mm |
