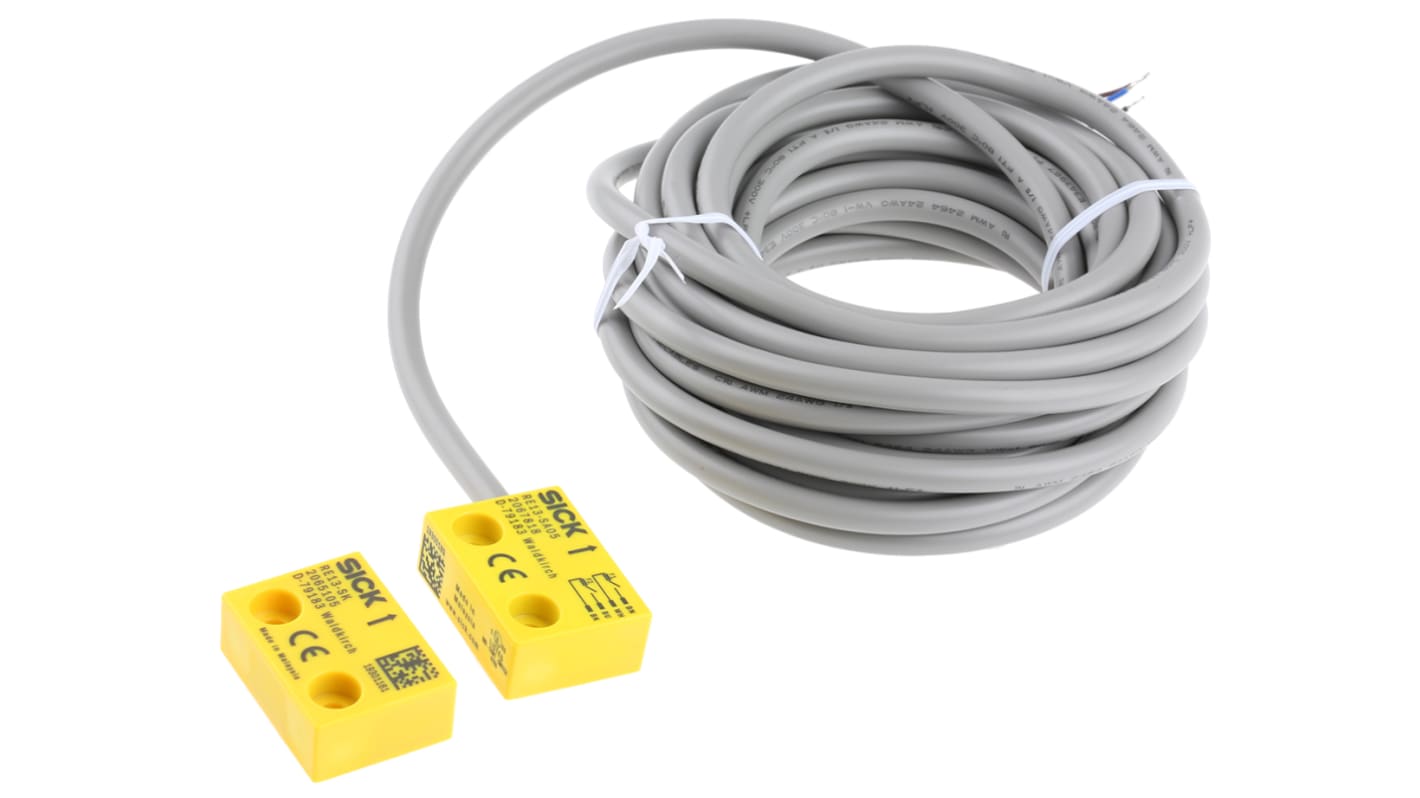

RE13 Magnetic Safety Switch, Plastic, 30 V dc

  • RS Stock No. 797-4863
  • Mfr. Part No. RE13-SA05
  • Brand Sick
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): MY
Product Details

SICK RE1 & RE2 Series of Non-Contact Safety Switches

RE1 & RE2 magnetic safety switches are equipped with NC/NO contacts or equivalent N/O contacts which are treated directly with coded magnetic actuators. These types of safety system switches are particularly useful in areas where there may be a high level of contamination (these units are simple to clean and keep high hygiene standards).

Features and Benefits

• Response range from 7-9 mm.

• Magnetic sensor principle.

• Built-in LED response indicator.

• Performance level up to PL e / Cat. 4 (EN ISO 13849).

• Glass-fibre reinforced PPS rectangular housing.

• High tolerances for door misalignment.

• 2-3 contacts (see specifications).

• Enclosure rating IP67 (IEC 60529).

Typical applications

The RE1&2 series are compatible anywhere where a high standard of hygiene is necessary for operations. Typically, you'll find these types of safety switches where precise guidance of a safety door isn't always possible.

• Monitoring of safety doors & removable guards.

• Applications requiring a high standard of hygiene.

Note

The actuators are only coded in the sense that they have an identical magnetic combination making them type specific not individual example specific.

Specifications
Attribute Value
Supply Voltage 30 V dc
Safety Contacts 2NO
Housing Material Plastic
Connection Type M8
Switch Type Rectangular
Terminal Type Cable
Series RE13
Switching Distance 7 (On) mm, 20 (Off) mm
IP Rating IP67
Supply Current 100 mA
Actuator Included Yes
Sensor Principle Magnetic
Safety Category 4
Dimensions 36 x 26.2 x 13 mm
Number of Approach Directions 3
Width 26.2mm
Actuator Type Magnetic
Length 36mm
Depth 13mm
38 In stock for delivery within 1 working days
Price Each
kr 433,58
(exc. VAT)
kr 541,98
(inc. VAT)
Units
Per unit
1 - 4
kr 433,58
5 +
kr 411,90
