RSCAL(7884606) VT7 voltage Detector

  • RS Stock No. 788-0799
  • Mfr. Part No. RSVT7
  • Brand Martindale
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): PH
Product Details

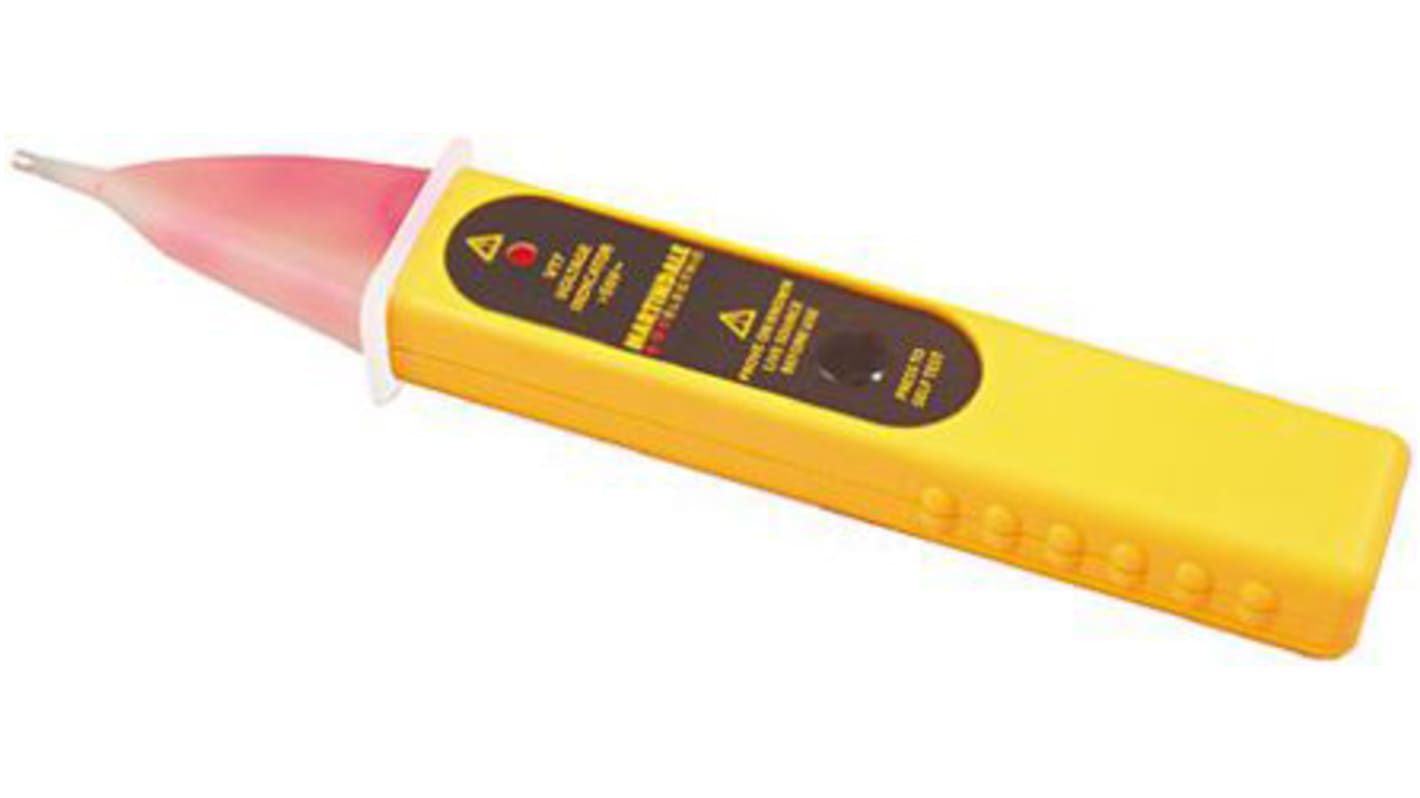

VT7 Single Pole Voltage Indicator

The VT7 is a single pole contact voltage indicator which detects AC voltages of 50V-600V with bright LED indication. The VT7 single pole voltage indicator has a self test function and is IP54 rated, for indoor and outdoor use.

Voltage range: 50V - 600Vac rms
Audible and visual indication
Bright LED indication
Frequency range: 50 - 60Hz
Test current: <5μA
IP rating: IP54
Conforms to BS EN61010-1 CAT IV 300V, CAT III 600V
Class II, Double Insulation
Pollution Degree: 2
Dimensions: 236 x 44 x 33 mm

Specifications
Attribute Value
Maximum Voltage 600V
Safety Category CAT III 600 V, CAT IV 300 V
IP Rating IP54
Calibrated RSCAL
Battery Type 9V
Power Source Battery
Dimensions 236 x 44 x 33mm
Weight 120g
Height 33mm
Length 236mm
Maximum Operating Temperature +50°C
Minimum Operating Temperature -10°C
Safety Category Voltage 300 V, 600 V
Model Number p VT7
Width 44mm
Safety Category Level CAT III, CAT IV
48 In stock for delivery within 3-5 working days
Price Each
kr 727,02
(exc. VAT)
kr 908,78
(inc. VAT)
Units
Per unit
1 +
kr 727,02
Not available for next day delivery
