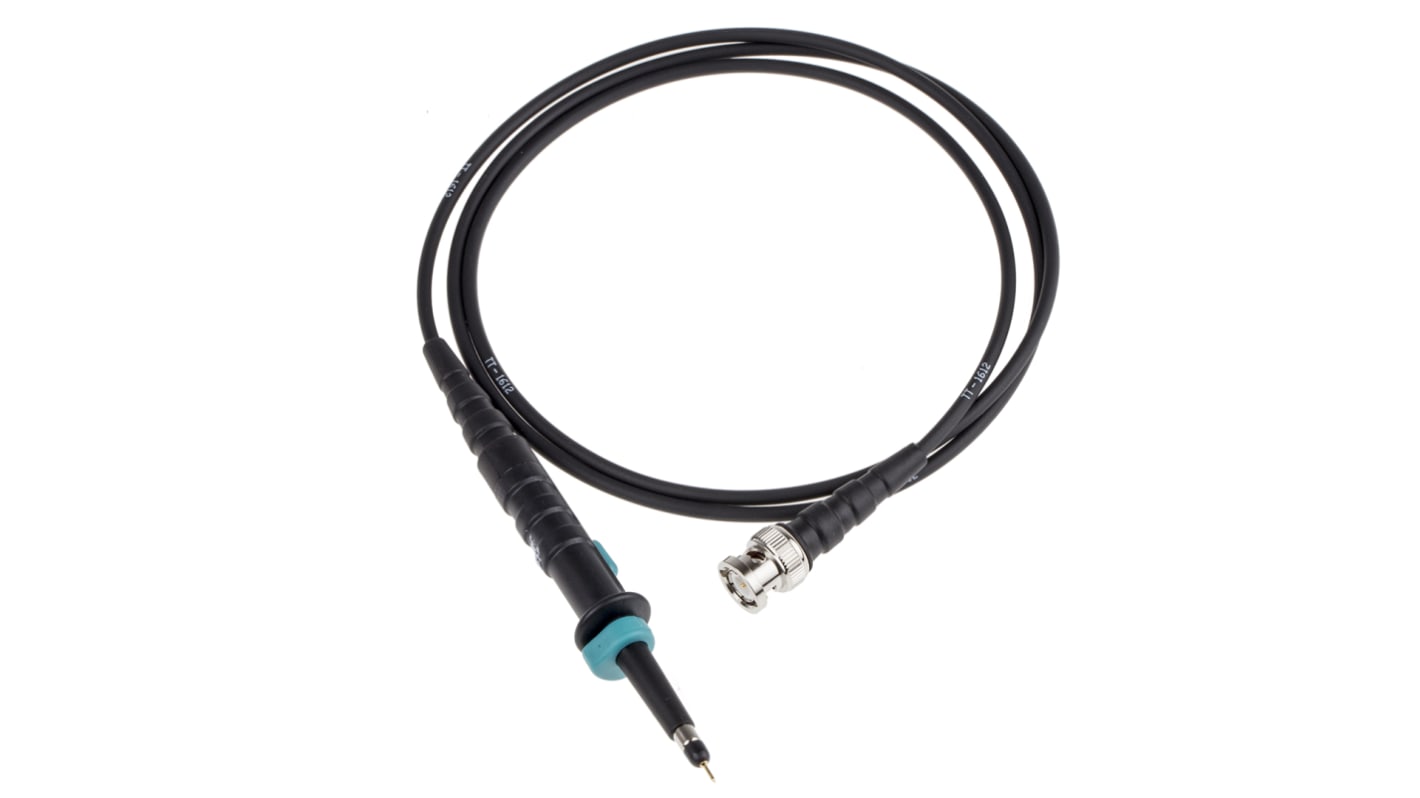

RS PRO Oscilloscope Probe, Passive Type, 15MHz, 1:1, 1:10, BNC Connector

RS Stock No.:: 146-6614
Brand:: RS PRO

RS PRO Oscilloscope Probe, Passive Type, 15MHz, 1:1, 1:10, BNC Connector

15 In stock for same day dispatch

103 available from Europe for delivery within 2 working day(s).

Added

Price Each

Kr. 282,15

(exc. VAT)

Kr. 352,69

(inc. VAT)

Units	Per unit
1 +	Kr. 282,15

RS Stock No.:: 146-6614
Brand:: RS PRO

Technical Reference

Legislation and Compliance

COO (Country of Origin):: DE

Product Details

RS PRO Oscilloscope Probes

The RS PRO passive oscilloscope probe is ergonomically designed and is suitable for use with all the major brands of oscilloscopes as well as our range. This probe does not require a power supply or batteries. Hence it is lightweight and easily portable. It comes with a fixed 10:1/1:1 attenuation, bandwidth up to 150MHz and is designed for measurements up to 600V.
Contents
LF Oscilloscope Probe
Protective caps
Spring hook tip
Spare probe tip
Grounding lead terminated with insulated crocodile clip
Trimmer tool
Probe Options:
RS - LF 312
Note
All the products in this range are supplied for use with instruments with a permanent earth connection.

Features and Benefits

Bandwidth for 10:1/1:1 is 150MHz/15MHz
Attenuation ratio is 10:1/1:1
Input impedance for 10:1/1:1 is 10Mohmll 15.5pF/47pF
Rise time for 10:1/1:1 is 2.3/24
Maximum common mode input voltage is ±20V
Max. input voltage is 600V CAT I (VDC + Peak AC)

Certifications

CAT I

Specifications

Attribute	Value
Probe Type	Passive
Attenuation	1:1, 1:10
Bandwidth	15 MHz, 150MHz
Maximum Common Mode Input Voltage	600V
Connector Type	BNC
Number of Probes	1
Series	RS-LF
Safety Category	CAT I 600V
Rise Time	2.3 ns, 24ns
