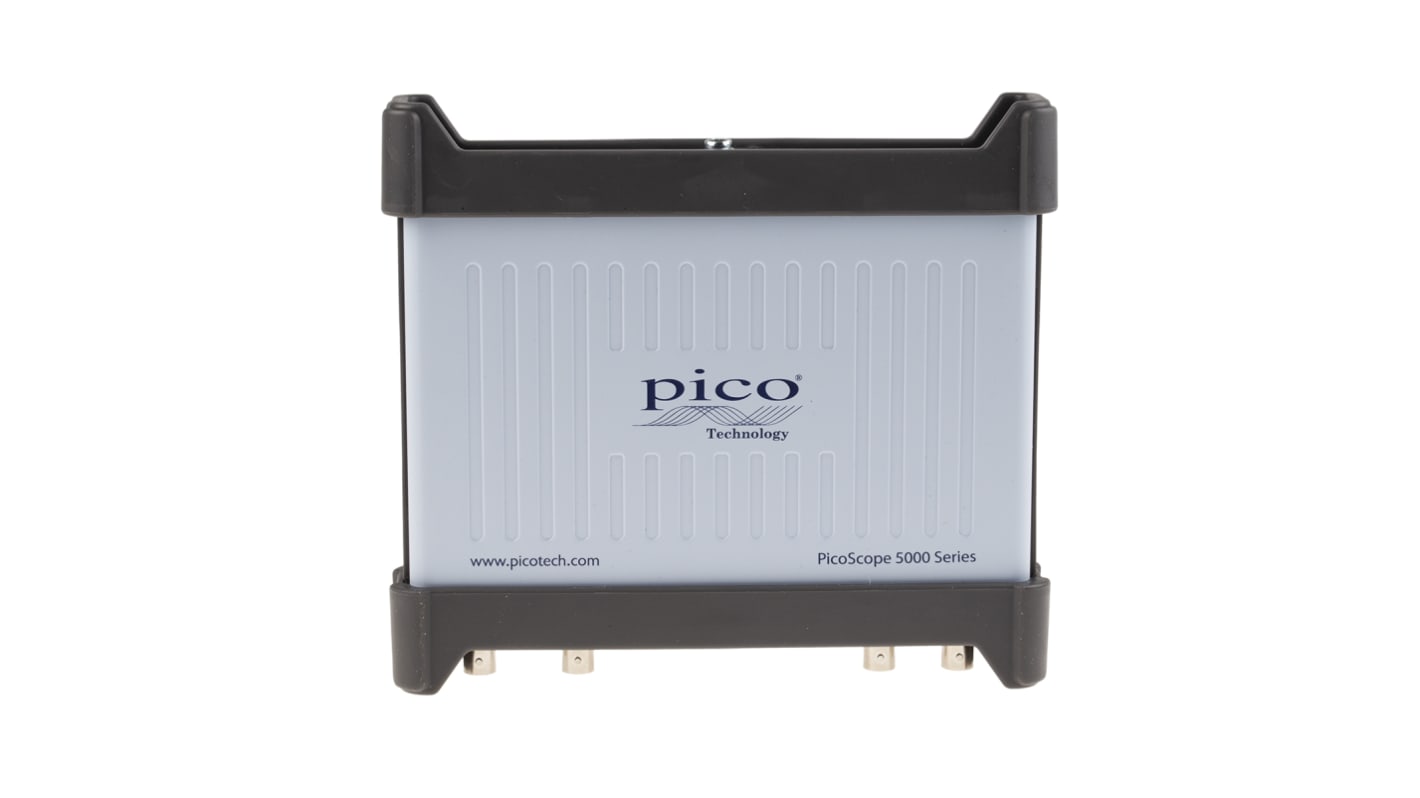

Pico Technology 5000D Series 5244D Oscilloscope, PC Based, 2 Channels, 200MHz

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

PicoScope Bench Oscilloscope

The PicoScope 5000D 200MHz series bench oscilloscope has all the features that we can find in the highly advanced bench-type oscilloscopes. This oscilloscope is a powerful and versatile device with high speed, resolution and sampling rates. It has multi-instrument and measurement capabilities, therefore proves to be an excellent tool. It has breakthrough ADC technology switches from 8 to 16 bits in the same oscilloscope. It has two different independent channels.

Features and Benefits

• Intuitive user interface
• Flexible hardware resolution of 8 to 16 bits
• Large analogue bandwidth of 200MHz
• High sampling rate of 1GS/s at 8 bit resolution
• High sampling rate of 500MS/s at 12 bit resolution
• High sampling rate of 62.5MS/s at 16 bit resolution
• Large buffer memory 512MS
• 100,000wfms/s
• 200MS/s arbitrary waveform generator
• Serial decoding and mask testing
• Compatible with different operating systems like Windows, Linux and Mac

Applications

• Educational laboratories
• Electronics troubleshooting and measurement
• Embedded electronics
• Mixed signal and video designing
• Automotive electronics

Specifications
Attribute Value
Number of Channels 2
Bandwidth 200MHz
Oscilloscope Type PC Based
Series 5000D
Power Source USB
Minimum Vertical Sensitivity 2mV/div
Maximum Vertical Sensitivity 4V/div
Minimum Time Base 1ns/div
Sample Rate Random 10 Gsps
Model Number p 5244D
Vertical Resolution 16 bit
Rise Time 1.75ns
10 In stock for delivery within 1 working days
Price Each
kr 16 500,35
(exc. VAT)
kr 20 625,44
(inc. VAT)
Units
Per unit
1 +
kr 16 500,35
