Teledyne LeCroy T3DSO2502A T3DSO2000A Series Digital Bench Oscilloscope, 4 Analogue Channels, 500MHz - RS Calibrated
- RS Stock No.:
- 215-2025
- Mfr. Part No.:
- T3DSO2502A
- Brand:
- Teledyne LeCroy
Available to back order for despatch when stock is available
Not available for next day delivery
Added
Price Each
Kr. 84 425,40
(exc. VAT)
Kr. 105 531,75
(inc. VAT)
Units | Per unit |
1 + | Kr. 84 425,40 |
- RS Stock No.:
- 215-2025
- Mfr. Part No.:
- T3DSO2502A
- Brand:
- Teledyne LeCroy
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

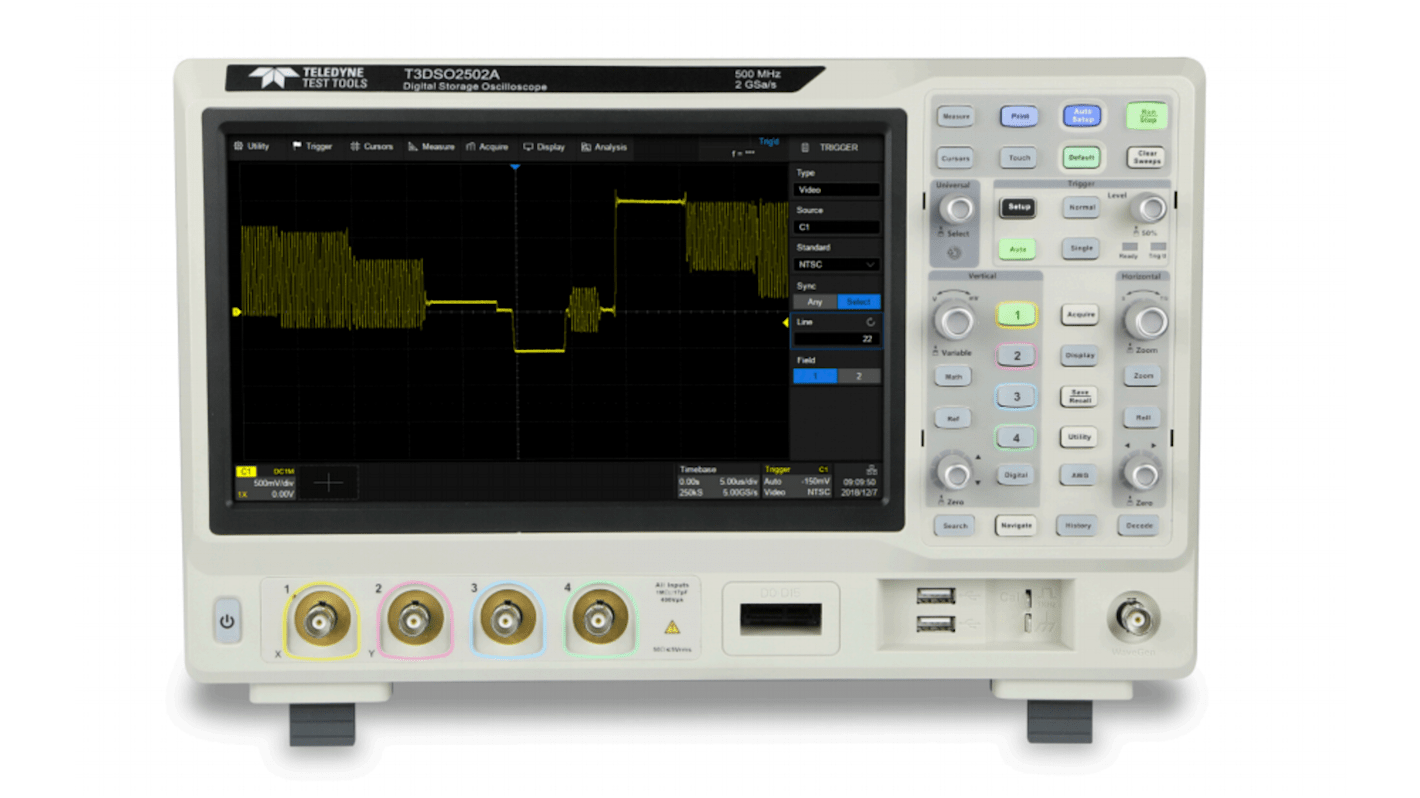

Teledyne LeCroy T3DSO2502A Bench Digital Storage Oscilloscope, 350 MHz - 4 Channels, 500 MHz - 2 Channels
Product Description
Teledyne LeCroy's T3DSO2502A Oscilloscope is a four channel model with an analog bandwidth of 350 MHz. It also has the added functionality of having 500 MHz bandwidth in two channel mode. The T3DSO2502A offers a maximum sample rate of 2 GSa/s, and a maximum memory depth of 200 Mpts in half channel mode. The T3DSO2502A incorporates two 2 GSa/s ADCs and two 200 Mpts memory modules. When all channels are enabled, each channel has a sample rate of 1 GSa/s and a standard record length of 100 Mpts. When only a single channel per ADC is active, the maximum sample rate is 2 GSa/s and the maximum record length is 200 Mpts. For ease-of-use, the most commonly used functions can be accessed with its user-friendly front panel design
Features and benefits
Long Capture – 100 Mpts/Ch and 200 Mpts interleaved
Math and Measure – 9 basic math functions plus FFT and 50+ automatic measurement parameters
Connectivity – USB for mass storage, printing and PC control, plus LAN for fast data transfer
Includes Serial Bus Trigger and Decode – I2C, SPI, UART, CAN, LIN as standard.
Optional CAN FD, I2S, MIL- 1553B, FlexRay
Includes Bode Plot, 50MHz Function Generator and Power Analysis applications as standard
Optional MSO – 16 Digital Channels
Waveform Sequence Recorder – record and play back up to 90,000 waveforms
Math and Measure – 9 basic math functions plus FFT and 50+ automatic measurement parameters
Connectivity – USB for mass storage, printing and PC control, plus LAN for fast data transfer
Includes Serial Bus Trigger and Decode – I2C, SPI, UART, CAN, LIN as standard.
Optional CAN FD, I2S, MIL- 1553B, FlexRay
Includes Bode Plot, 50MHz Function Generator and Power Analysis applications as standard
Optional MSO – 16 Digital Channels
Waveform Sequence Recorder – record and play back up to 90,000 waveforms
Applications
Education
Electronic Design
Automotive
Engineering
System Debug
Electronic Design
Automotive
Engineering
System Debug
Accessories
MSO lead set - 177-1288
Replacement passive probes - 177-1275, 215-1115, 851-3100
Replacement passive probes - 177-1275, 215-1115, 851-3100
Specifications
Attribute | Value |
---|---|
Bandwidth | 500MHz |
Number of Analogue Channels | 4 |
Digital/Analogue | Digital |
Oscilloscope Type | Bench |
Oscilloscope Form | Digital Storage |
Series | T3DSO2000A |
Calibrated | RSCAL |
Power Source | Mains |
Memory Depth | 200Mpts |
Minimum Vertical Sensitivity | 10V/div |
Maximum Vertical Sensitivity | 0.5mV/div |
Screen Size | 10.1in |
Sample Rate Random | 2 GSa/s |
Vertical Resolution | 8 bit |
