- RS Stock No.:
- 210-2782
- Mfr. Part No.:
- X3047702
- Brand:
- Norgren
- RS Stock No.:
- 210-2782
- Mfr. Part No.:
- X3047702
- Brand:
- Norgren
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- CN
Product Details

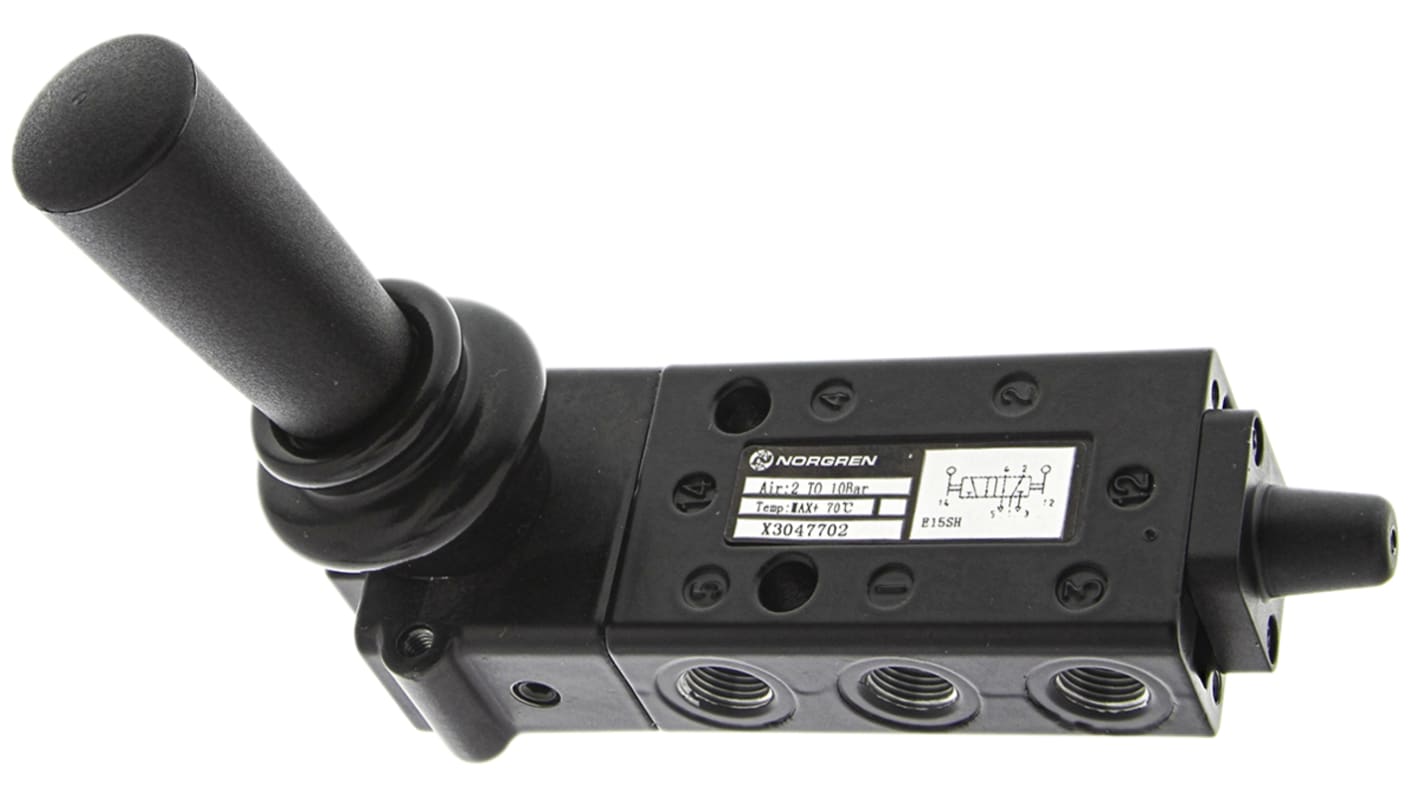

IMI Norgren Pneumatic Manual Control Valve, 5/2 Function, Lever Control Mechanism - X30 Series - X3047702
Reliably direct your airflow with this manual control valve from IMI Norgren. As it has a 5/2 valve function, it's suitable for managing dual air supplies to give you close control over double-acting equipment like piston rods. The device achieves a maximum flow rate of 335L/min so it's able to maintain an efficient air supply to keep your hardware working effectively. Thanks to a lever actuator, this unit is a convenient way to quickly manage your air-powered systems.
Features & Benefits
Die-cast zinc casing is corrosion-resistant to perform in intense conditions
Wide operating pressure range of -0.9 to 10 bar handles demanding air supplies
Industry-standard G1/8 thread connection is compatible with common pneumatic devices
Durable NBR seal prevents leakage to maintain optimal system pressure
Wide operating pressure range of -0.9 to 10 bar handles demanding air supplies
Industry-standard G1/8 thread connection is compatible with common pneumatic devices
Durable NBR seal prevents leakage to maintain optimal system pressure
Applications
Pressure relief devices
Air-powered tools
Oxygen concentrators
Construction industry
Air-powered tools
Oxygen concentrators
Construction industry
What temperatures can I use this control valve at?
The valve is safe for use between 0 and +70°C. If you're planning to use the component at or below +2°C, you should make sure your compressed air supply is dry to prevent ice blocking your system's airways.
Specifications
Attribute | Value |
---|---|
Control Mechanism | Lever |
Connection Port Thread | G 1/8 |
Function | 5/2 |
Thread Size | 1/8in |
Thread Standard | G |
Manufacturer Series | X30 |
Control Button/Switch Colour | Black |
Maximum Operating Pressure | 10 bar |
Body Material | Zinc Alloy |
Maximum Flow Rate | 335L/min |
Minimum Operating Temperature | 0°C |
Maximum Operating Temperature | +70°C |
Number of Ports | 5 |
Number of Positions | 2 |
